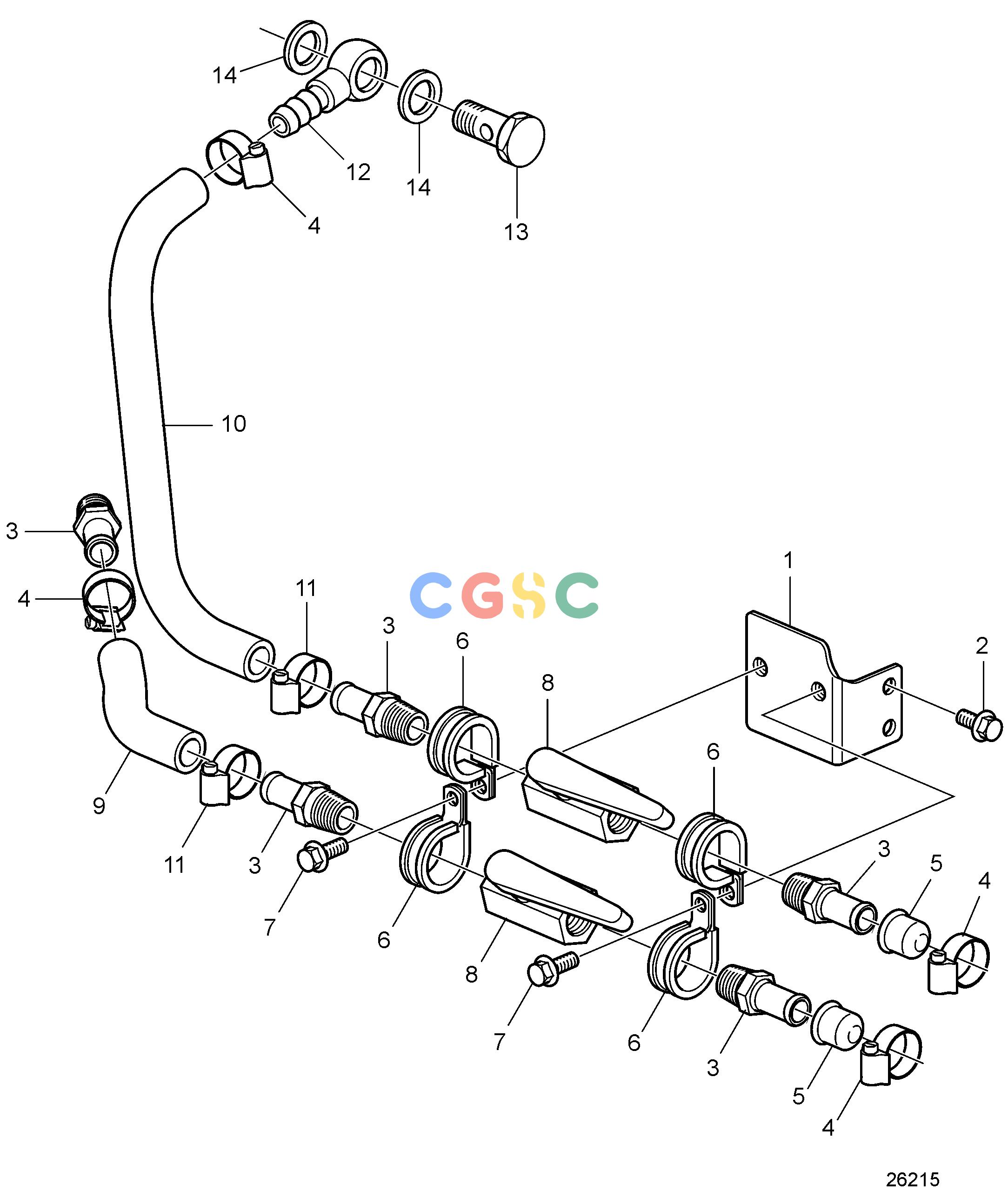

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Cooling SystemHot Water OutletEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
505 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21327869
|
[1] |
Bracket
|
|
| 2. |
984733
|
[2] |
Flange screw
|
|
| 3. |
961657
|
[5] |
Hose nipple
|
|
| 4. |
961665
|
[4] |
Hose clamp
|
|
| 5. |
845422
|
[2] |
Plastic plug
|
|
| 6. |
943717
|
[4] |
Clamp
|
|
| 7. |
984734
|
[2] |
Flange screw
|
|
| 8. |
1140097
|
[2] |
Ball valve
|
|
| 9. |
952969
|
[1] |
Hose
|
L=155mm
|
| 10. |
21227337
|
[1] |
Hose
|
|
| 11. |
994559
|
[2] |
Hose clamp
|
|
| 12. |
21876723
|
[1] |
Hose connection
|
|
| 13. |
190714
|
[1] |
Hollow screw
|
|
| 14. |
976931
|
[2] |
Gasket
|
|
