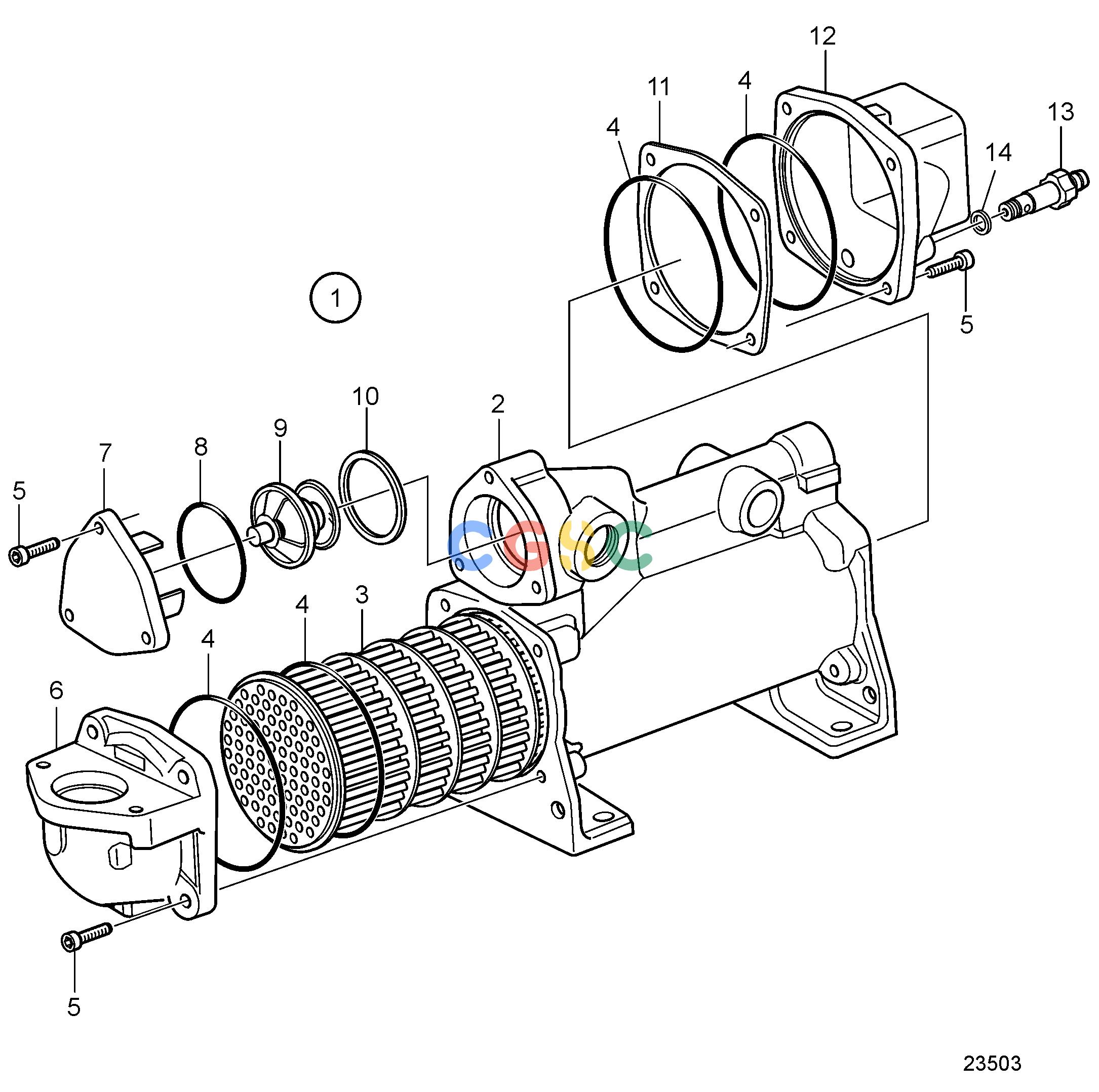

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Cooling SystemOil Cooler for Reverse Gear, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
516 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3843997
|
[1] |
Heat exchanger
|
Replaced by next part number
|
| 1. |
22108637
|
[1] |
Heat exchanger
|
|
| 2. |
3887420
|
[1] |
Housing
|
|
| 3. |
3887419
|
[1] |
Heat exchanger eleme
|
|
| 4. |
3838336
|
[4] |
O-ring
|
|
| 5. |
941761
|
[11] |
Hex. socket screw
|
|
| 6. |
3887422
|
[1] |
End cover
|
|
| 7. |
3887402
|
[1] |
Cap
|
|
| 8. |
3588888
|
[1] |
O-ring
|
|
| 9. |
3887403
|
[1] |
Thermostat
|
|
| 10. |
3584299
|
[1] |
Gasket
|
|
| 11. |
3838335
|
[1] |
Spacer
|
|
| 12. |
3887421
|
[1] |
End cover
|
|
| 13. |
3583822
|
[1] |
Draining nipple
|
|
| 14. |
|
|
|
|
