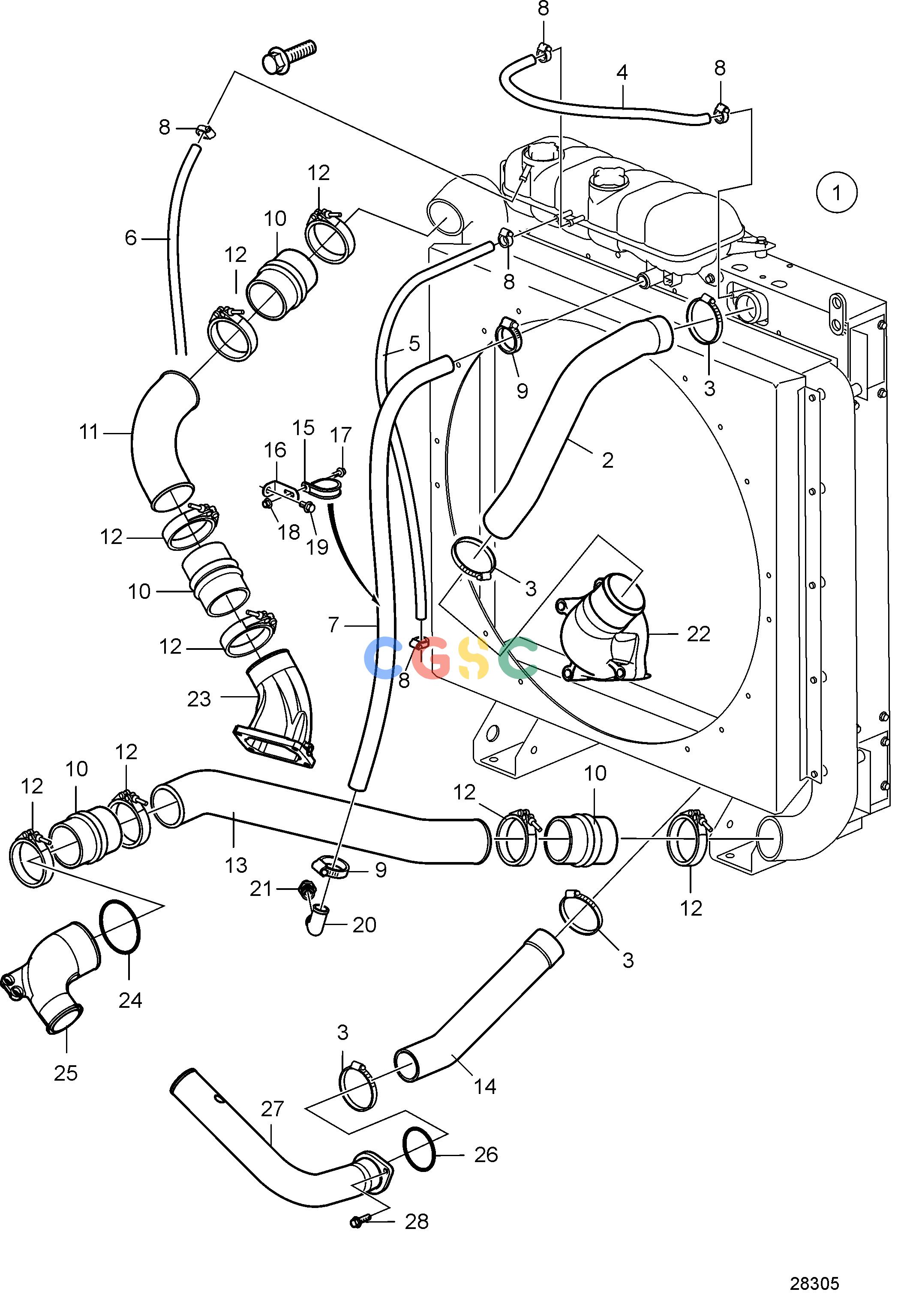

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Cooling SystemRadiator with Installation Components,RCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47702050_198
|
|
Radiator
|
|
| 2. |
21924291
|
[1] |
Hose
|
|
| 3. |
961673
|
[4] |
Hose clamp
|
|
| 4. |
990536
|
[1] |
Rubber hose
|
L=500mm
|
| 5. |
990536
|
[1] |
Rubber hose
|
L=880mm
|
| 6. |
990536
|
[1] |
Rubber hose
|
L=1700mm
|
| 7. |
952973
|
[1] |
Hose
|
L=1100mm
|
| 8. |
994556
|
[5] |
Hose clamp
|
|
| 9. |
994560
|
[2] |
Hose clamp
|
|
| 10. |
865127
|
[4] |
Charge air hose
|
|
| 11. |
22175251
|
[1] |
Pipe
|
|
| 12. |
865575
|
[8] |
Hose clamp
|
|
| 13. |
21388234
|
[1] |
Charge air pipe
|
|
| 14. |
21504843
|
[1] |
Hose
|
|
| 15. |
969194
|
[1] |
Clamp
|
|
| 16. |
965556
|
[1] |
Bracket
|
|
| 17. |
984733
|
[1] |
Flange screw
|
|
| 18. |
990940
|
[1] |
Flange nut
|
|
| 19. |
984751
|
[1] |
Flange screw
|
|
| 20. |
992214
|
[1] |
Elbow nipple
|
|
| 21. |
994059
|
[1] |
Nipple
|
|
| 22. |
21861948
|
[1] |
Cover
|
|
| 23. |
3888752
|
[1] |
Charge air pipe
|
|
| 24. |
1542781
|
[1] |
Sealing ring
|
|
| 25. |
21557193
|
[1] |
Charge air pipe
|
|
| 26. |
975675
|
[1] |
O-ring
|
|
| 27. |
21381313
|
[1] |
Water pipe
|
|
| 28. |
984735
|
[2] |
Flange screw
|
|
