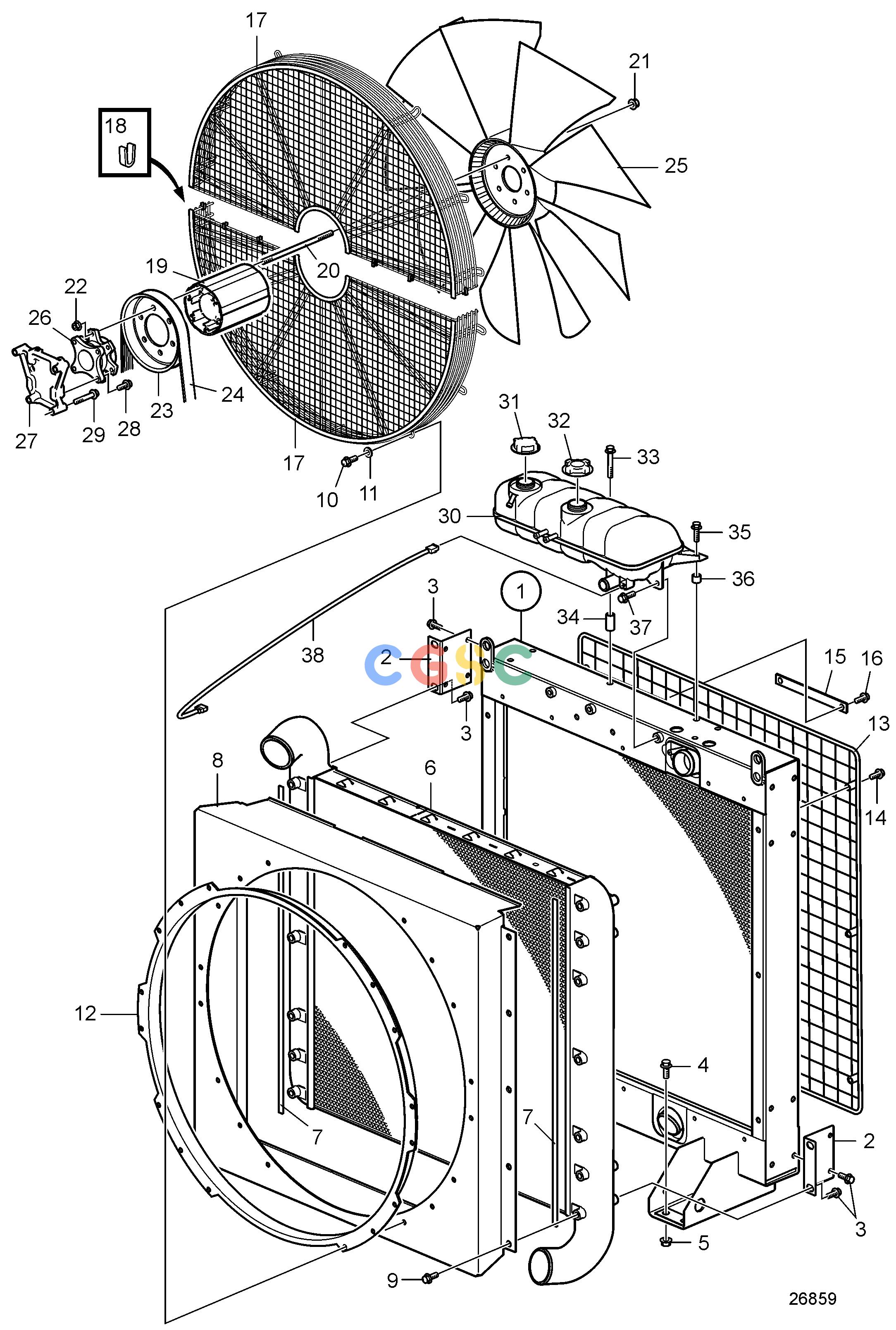

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Cooling SystemRadiator and fixed Fan,RCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
649 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21146121
|
[1] |
Radiator
|
|
| 2. |
40005104
|
[1] |
Bracket
|
|
| 3. |
|
|
|
|
| 4. |
946817
|
[8] |
Flange screw
|
|
| 5. |
990942
|
[8] |
Flange nut
|
|
| 6. |
40005102
|
[1] |
Charge air cooler
|
|
| 7. |
|
|
|
|
| 8. |
40005100
|
[1] |
Fan shroud
|
|
| 9. |
984733
|
[16] |
Flange screw
|
|
| 10. |
984734
|
[12] |
Flange screw
|
|
| 11. |
976944
|
[12] |
Washer
|
|
| 12. |
3827612
|
[1] |
Fan ring
|
|
| 13. |
3827871
|
[1] |
Radiator protector
|
|
| 14. |
994385
|
[6] |
Flange screw
|
|
| 15. |
846118
|
[1] |
Emblem
|
|
| 16. |
941651
|
[2] |
Cross recessed sunk
|
|
| 17. |
21784986
|
[2] |
Fan guard
|
|
| 18. |
|
|
|
|
| 19. |
3595252
|
[1] |
Fan hub
|
|
| 20. |
969199
|
[6] |
Stud
|
|
| 21. |
990941
|
[6] |
Flange nut
|
|
| 22. |
990951
|
[6] |
Flange lock nut
|
|
| 23. |
3829958
|
[1] |
Pulley
|
D=227mm, Ratio 0.99:1
|
| 23. |
3828043
|
[1] |
Pulley
|
Ratio 1:08
|
| 24. |
3886349
|
[1] |
Fan belt
|
For pulley 3829958
|
| 24. |
3594804
|
[1] |
Fan belt
|
For Pulley 3828043
|
| 25. |
3594168
|
[1] |
Fan
|
|
| 26. |
21924453
|
[1] |
Fan hub
|
|
| 27. |
3886350
|
[3] |
Bracket
|
|
| 28. |
984754
|
[4] |
Flange screw
|
|
| 29. |
984757
|
[4] |
Flange screw
|
|
| 30. |
1674916
|
[1] |
Expansion tank
|
|
| 31. |
1674083
|
[1] |
Pressure cap
|
|
| 32. |
1674922
|
[1] |
Filler cap
|
|
| 33. |
975103
|
[1] |
Flange screw
|
|
| 34. |
3830771
|
[1] |
Spacer sleeve
|
|
| 35. |
990862
|
[1] |
Flange screw
|
|
| 36. |
843028
|
[1] |
Spacer sleeve
|
|
| 37. |
984751
|
[3] |
Flange screw
|
|
| 38. |
3594069
|
[1] |
Wiring harness
|
|
