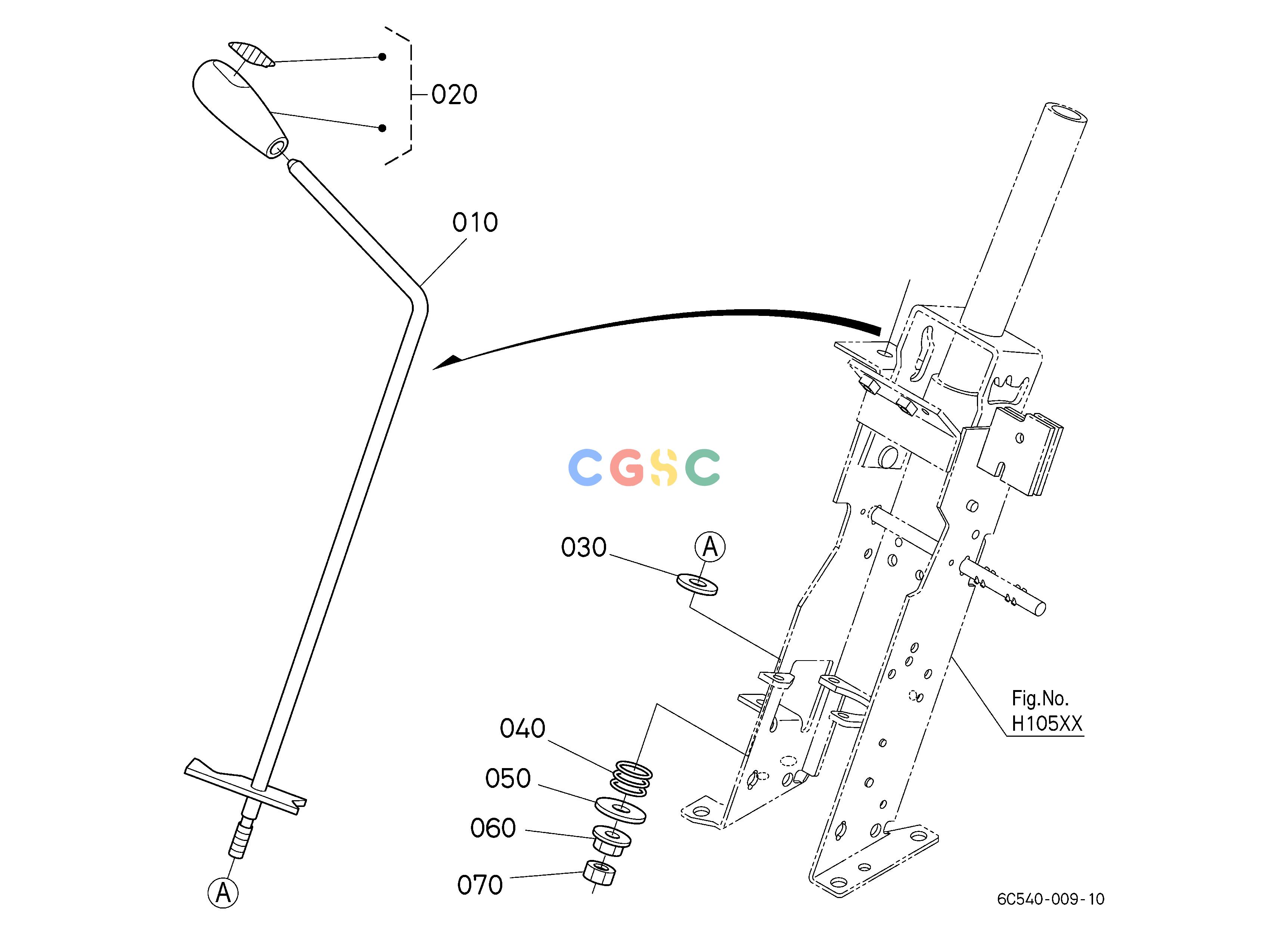

久保田零件查询A00100 ACCELERATOR LEVER ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
923 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C40043310
|
[1] |
LEVER(ACCEL)
|
1.2760(lbs); 0.580
|
| 020. |
6A70043324
|
[1] |
GRIP
|
0.1100(lbs); 0.050
|
| 030. |
PA40146640
|
[1] |
PLATE,FRICTION
|
0.0066(lbs); 0.003
|
| 030. |
6C41038370
|
[1] |
PLATE(FRICTION)
|
0.0044(lbs); 0.002
|
| 040. |
3325110320
|
[1] |
SPRING,ACCEL.LEVER
|
0.0264(lbs); 0.012
|
| 050. |
0401550120
|
[1] |
WASHER,PLAIN
|
0.0440(lbs); 0.020
|
| 060. |
0213150100
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 070. |
0211850100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
