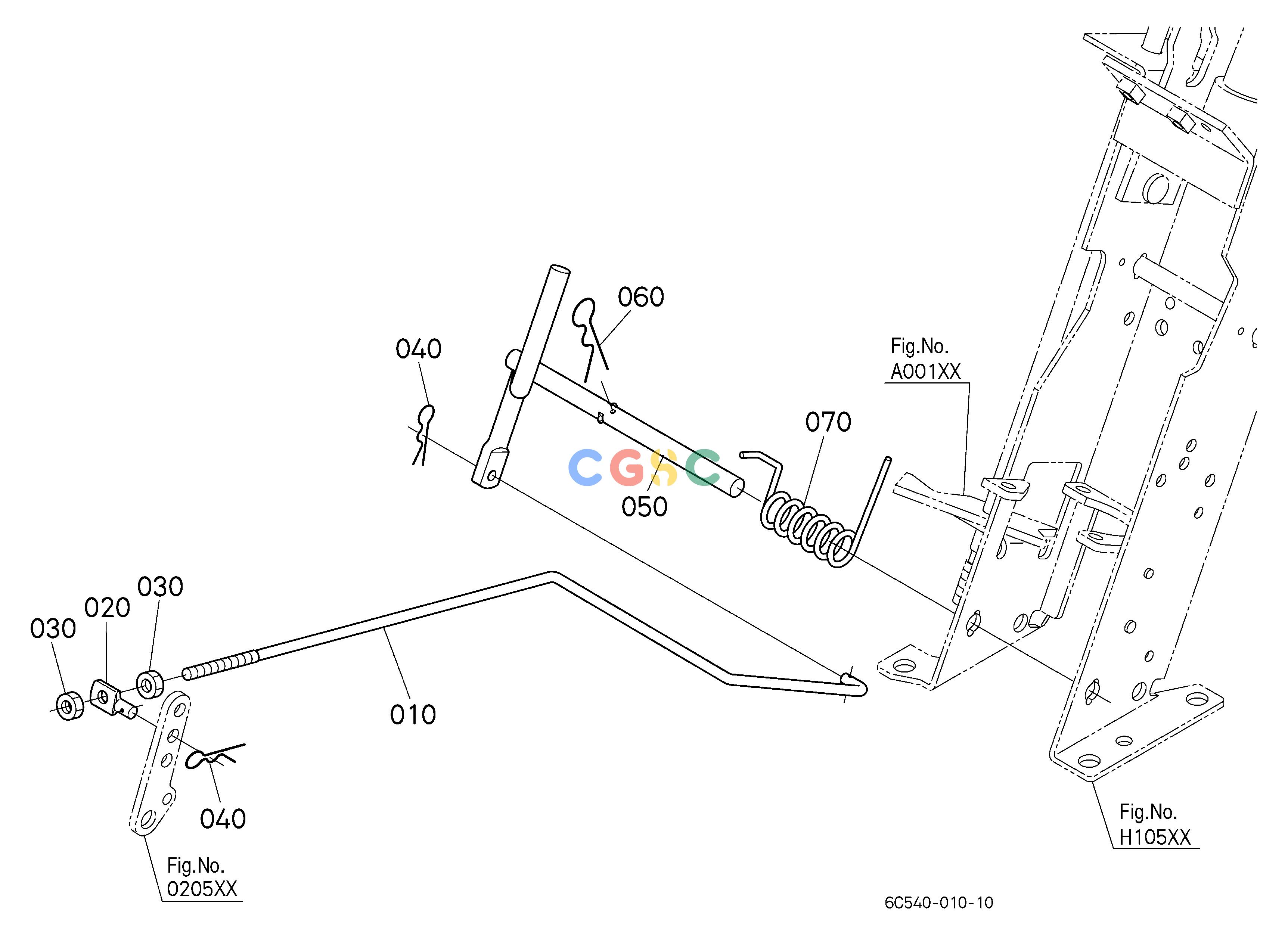

久保田零件查询A03000 ACCELERATOR ROD ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
328 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54043270
|
[1] |
ROD(RELEASE)
|
0.1760(lbs); 0.080
|
| 010. |
6C54043273
|
[1] |
ROD(RELEASE)
|
0.1760(lbs); 0.080
|
| 020. |
6C09043280
|
[1] |
CONNECTOR
|
0.0088(lbs); 0.004
|
| 030. |
0201450060
|
[2] |
HEX.NUT
|
0.0044(lbs); 0.002
|
| 040. |
0552550600
|
[2] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
| 050. |
6C54043240
|
[1] |
ARM(RELEASE)
|
0.4510(lbs); 0.205
|
| 060. |
0552551000
|
[1] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 070. |
6A70043290
|
[1] |
SPRING
|
0.0550(lbs); 0.025
|
