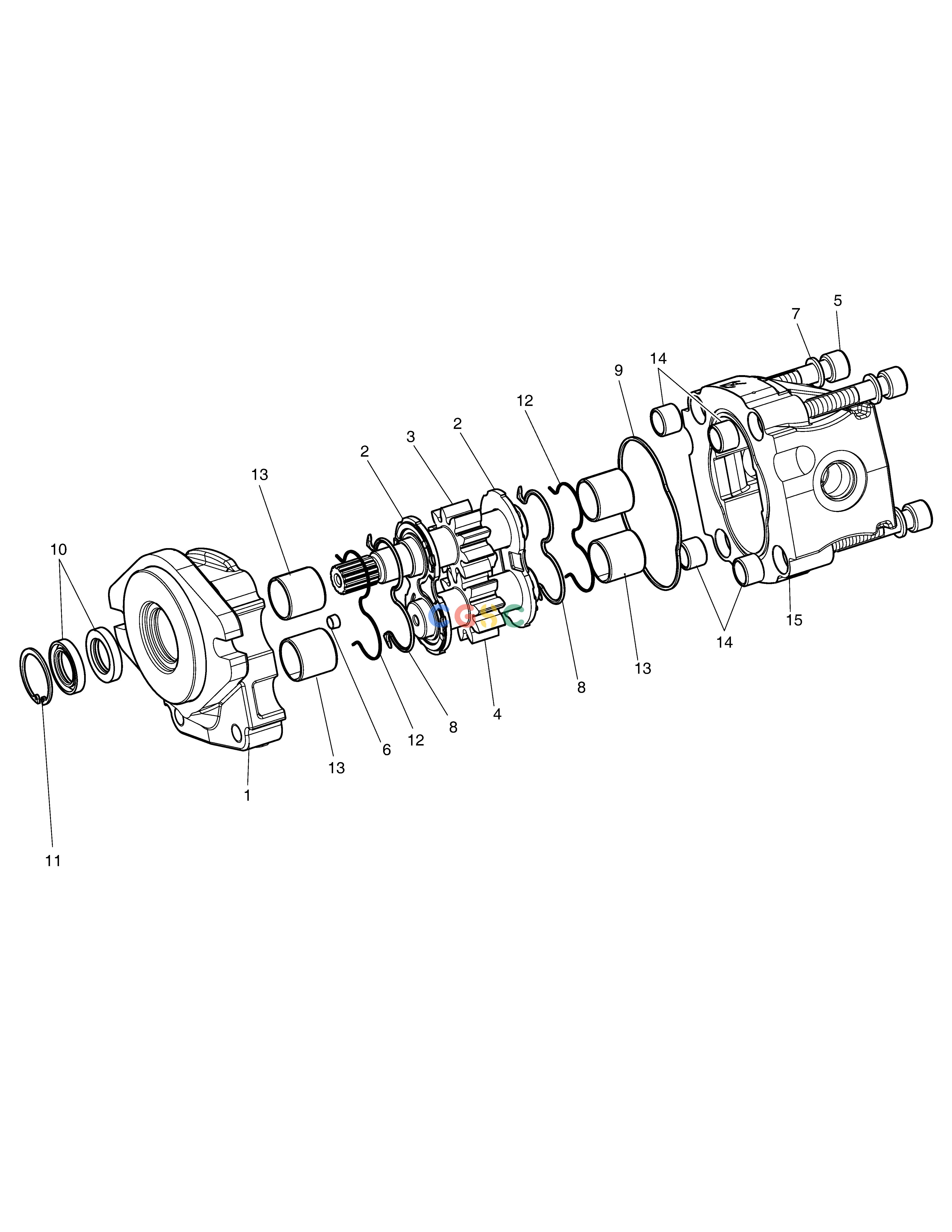

斗山零件查询GEAR PUMP - ROTATING DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
468 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9001988
|
[1] |
SEAL KIT;GEAR PUMP
|
|
| -. |
K1007973
|
[1] |
PUMP;GEAR
|
|
| 1. |
NA00400
|
[1] |
|
|
| 10. |
NA01099
|
[2] |
SEAL;SHAFT
|
|
| 11. |
NA00982
|
[1] |
. HEAD
|
|
| 12. |
NA00929
|
[2] |
RING
|
|
| 13. |
NA00258
|
[4] |
BUSH
|
|
| 14. |
NA00258
|
[4] |
BUSH
|
|
| 15. |
NA00079
|
[1] |
BODY
|
|
| 2. |
NA00838
|
[2] |
|
|
| 3. |
NA01127
|
[1] |
|
|
| 4. |
NA00488
|
[1] |
|
|
| 5. |
S2218861
|
[4] |
BOLT;SOCKET
|
|
| 6. |
NA00843
|
[1] |
PLUG
|
|
| 7. |
S5110803
|
[4] |
WASHER
|
|
| 8. |
NA01076
|
[2] |
SEAL
|
|
| 9. |
NA01076
|
[1] |
SEAL
|
|
