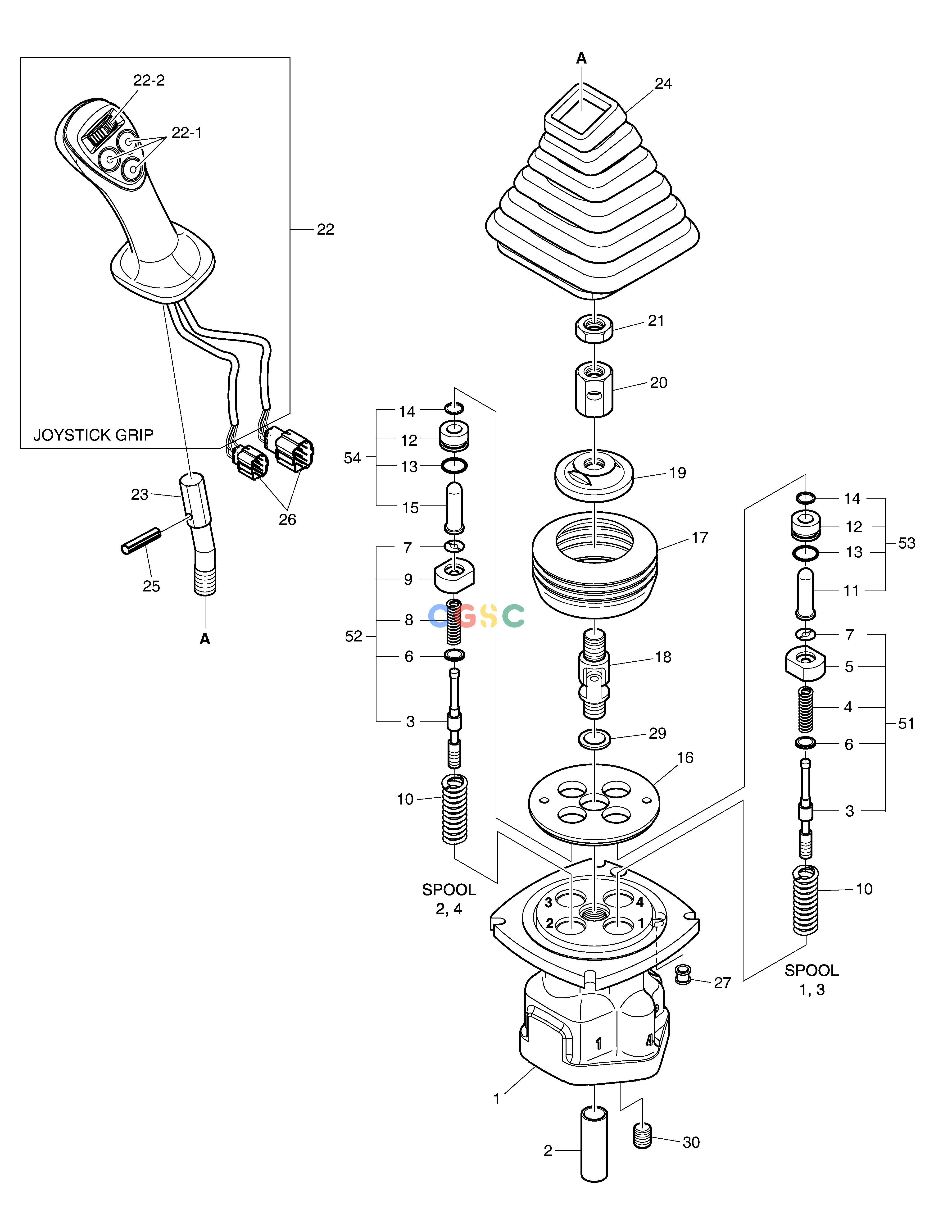

斗山零件查询JOYSTICK VALVE DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
301 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
410113-00208A
|
[1] |
|
|
| -. |
410113-00209B
|
[1] |
|
|
| 1. |
NA00332
|
[1] |
CASE
|
|
| 10. |
111601-00774
|
[4] |
|
|
| 11. |
NA01013
|
[2] |
ROD;PUSH
|
|
| 12. |
NA00843
|
[4] |
PLUG
|
|
| 13. |
S8000201
|
[4] |
O-RING
|
|
| 14. |
401107-00682
|
[4] |
SEAL,ROD
|
|
| 15. |
K9001694
|
[2] |
ROD;PUSH
|
|
| 16. |
250201-02097
|
[1] |
PLATE
|
|
| 17. |
K9001128
|
[1] |
BOOT
|
|
| 18. |
1.138-00004
|
[1] |
JOINT ASSY
|
|
| 19. |
400901-00076
|
[1] |
PLATE,SWASH
|
|
| 2. |
K9001115
|
[1] |
BUSHING
|
|
| 20. |
1.121-00028
|
[1] |
NUT
|
|
| 21. |
S4012833
|
[1] |
NUT
|
|
| 22. |
190201-00079A
|
[1] |
|
|
| 22. |
190201-00080B
|
[1] |
|
|
| 22-1. |
301412-00287
|
[3] |
|
|
| 22-2. |
301405-00117
|
[1] |
|
|
| 23. |
110302-00908
|
[1] |
|
|
| 24. |
430205-00023
|
[1] |
|
|
| 25. |
S5740800
|
[1] |
PIN;SPRING
|
|
| 26. |
430208-00242
|
[2] |
CONNECTOR ASSY
|
|
| 27. |
1.110-00169
|
[2] |
BUSHING
|
|
| 29. |
110951-01142
|
[1] |
SPACER
|
|
| 3. |
NA01161
|
[4] |
. SPOOL
|
|
| 30. |
2181-1116D1
|
[4] |
PLUG
|
|
| 4. |
NA01182
|
[2] |
. SPRING
|
|
| 5. |
NA01111
|
[2] |
. SEAT;SPRING
|
|
| 51. |
410207-00522
|
[1] |
|
|
| 52. |
410207-00667
|
[1] |
|
|
| 53. |
430221-00916B
|
[1] |
|
|
| 54. |
430221-00939B
|
[1] |
|
|
| 6. |
NA01133
|
[4] |
. SHIM
|
|
| 7. |
NA01233
|
[4] |
. STOPPER
|
|
| 8. |
NA01182
|
[2] |
. SPRING
|
|
| 9. |
NA01111
|
[2] |
. SEAT;SPRING
|
|
