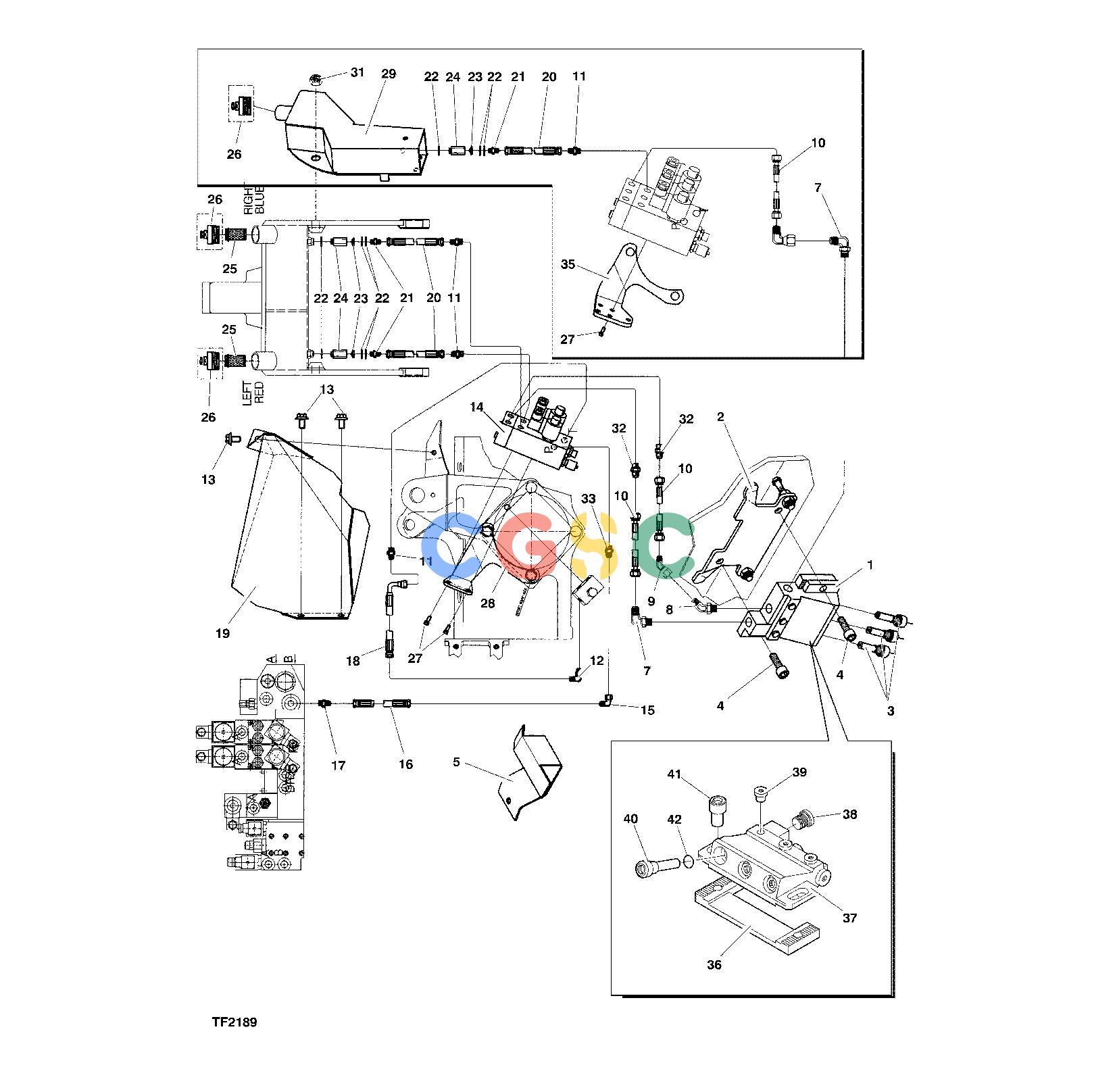

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE PAINT MARKING DEVICE, SUPERCUT F045006 11 76.A TF2189 [TF2189]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
141 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F059114
|
[1] |
Nozzle
|
|
| 2. |
F061951
|
[1] |
Plate
|
|
| 3. |
F059115
|
[3] |
Nozzle
|
|
| 4. |
F003427
|
[2] |
Cap Screw
|
|
| |
F003590
|
[2] |
Lock Nut
|
|
| 5. |
F061952
|
[1] |
Shield
|
|
| 7. |
F024599
|
[2/3] |
Elbow Fitting
|
|
| 8. |
F059241
|
[1] |
Elbow Fitting
|
|
| 9. |
F013594
|
[1] |
Elbow Fitting
|
|
| 10. |
F058998
|
[2/3] |
Hydraulic Hose
|
|
| 11. |
F005057
|
[3/4] |
Fitting
|
|
| 12. |
F024599
|
[1] |
Elbow Fitting
|
|
| 13. |
F040644
|
[3] |
Screw
|
|
| 14. |
F061482
|
[1] |
Process Pump
|
|
| 14.A. |
F061483
|
[1] |
Process Pump
|
|
| 15. |
F022417
|
[1] |
Elbow Fitting
|
|
| 16. |
F048008
|
[1] |
Hydraulic Hose
|
|
| 17. |
F005056
|
[1] |
Fitting
|
|
| 18. |
F054364
|
[1] |
Hydraulic Hose
|
|
| 19. |
F048010
|
[1] |
Guard
|
|
| 19.A. |
F060333
|
[1] |
Box
|
|
| 20. |
F041045
|
[1/2] |
Hydraulic Hose
|
|
| 21. |
F005055
|
[2/3] |
Fitting
|
|
| 22. |
F005166
|
[6/9] |
Sealing Washer
|
|
| 23. |
F058985
|
[2/3] |
Filter
|
|
| 24. |
F056974
|
[2/3] |
Shut-Off Valve
|
|
| 25. |
F048002
|
[2/3] |
Valve
|
|
| 26. |
F056977
|
[2/3] |
Plug
|
|
| 27. |
F011418
|
[2/3] |
Screw
|
|
| 28. |
F054367
|
[1] |
Shim
|
|
| 29. |
F061954
|
[1] |
Tank
|
|
| 30. |
F054362
|
[1] |
Hydraulic Hose
|
|
| 31. |
F003570
|
[1] |
Nut
|
|
| 32. |
F005052
|
[2] |
Fitting
|
|
| 33. |
F058999
|
[1] |
Orifice
|
|
| 33. |
F062272
|
[1] |
Orifice
|
|
| 35. |
F061955
|
[1] |
Plate
|
|
| 36. |
F061946
|
[1] |
Plate
|
|
| 37. |
F061947
|
[1] |
Manifold
|
|
| 38. |
F018111
|
[3] |
Plug
|
|
| 39. |
F011293
|
[3] |
Plug
|
|
| 40. |
F059115
|
[3] |
Nozzle
|
|
| 41. |
F061948
|
[1] |
Cap Screw
|
|
| 42. |
F026341
|
[3] |
O-Ring
|
|
