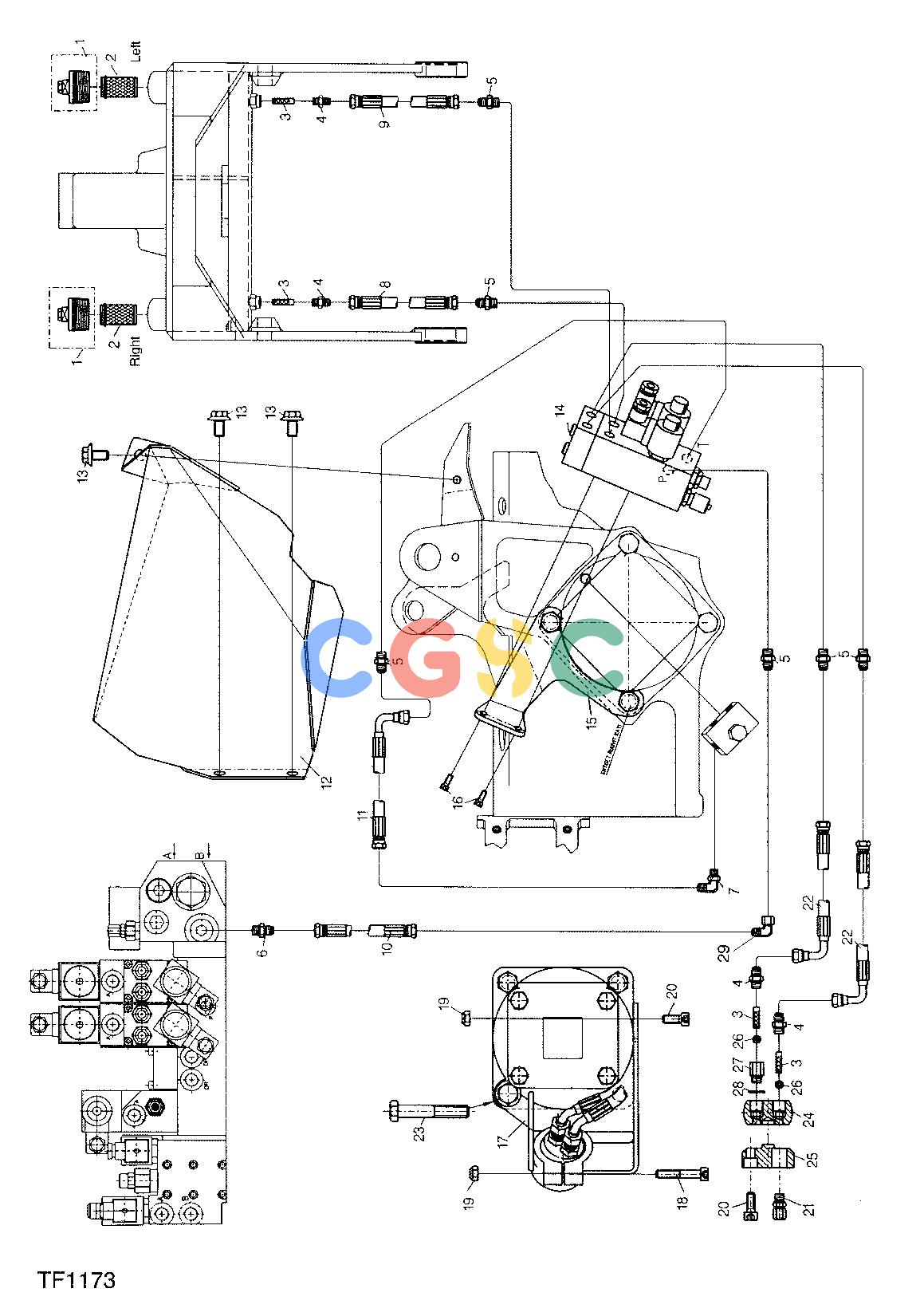

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE PAINT MARKING DEVICE F045006 11 76.1 TF1173 [TF1173]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
133 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F049356
|
[1] |
PAINT MARKING KIT
|
|
| 1. |
F056977
|
[2] |
Plug
|
|
| 2. |
F048002
|
[2] |
Valve
|
|
| 3. |
F048003
|
[4] |
Filter
|
|
| 3. |
F058985
|
[4] |
Filter
|
|
| 4. |
F048004
|
[4] |
Fitting
|
|
| 4. |
F005055
|
[4] |
Fitting
|
|
| 5. |
F005057
|
[6] |
Adapter
|
|
| 6. |
F005056
|
[1] |
Fitting
|
|
| 7. |
F024599
|
[1] |
Elbow Fitting
|
|
| 8. |
F054362
|
[1] |
HOSE-ASSY
|
|
| 9. |
F041045
|
[1] |
HOSE-ASSY
|
|
| 10. |
F048008
|
[1] |
HOSE-ASSY
|
|
| 11. |
F054364
|
[1] |
HOSE-ASSY
|
|
| 12. |
F054365
|
[1] |
Box
|
|
| 12. |
F060333
|
[1] |
Box
|
|
| 13. |
F040644
|
[3] |
Screw
|
|
| 14. |
F046538
|
[1] |
PAINT MARKING PUMP
|
|
| 14. |
F059904
|
[1] |
PAINT MARKING PUMP
|
|
| 14. |
F061482
|
[1] |
PAINT MARKING PUMP
|
|
| 15. |
F054367
|
[1] |
Shim
|
|
| 16. |
F004638
|
[2] |
Screw
|
|
| 17. |
F048012
|
[1] |
Frame
|
|
| 18. |
F003422
|
[1] |
Cap Screw
|
|
| 19. |
F003588
|
[2] |
Lock Nut
|
|
| 20. |
F010537
|
[3] |
Cap Screw
|
|
| 21. |
F023460
|
[4] |
Nozzle
|
|
| |
F023531
|
[1] |
Repair Kit
|
|
| |
F021689
|
[1] |
Ball
|
|
| 22. |
F054369
|
[2] |
HOSE-ASSY
|
|
| 23. |
F048014
|
[2] |
Screw
|
|
| 24. |
F054370
|
[1] |
Frame
|
|
| 25. |
F052915
|
[1] |
PROTECTION PLATE
|
|
| 26. |
F047704
|
[2] |
STEEL BALL
|
|
| 27. |
F033375
|
[1] |
Fitting
|
|
| 27. |
F056974
|
[2] |
Valve
|
|
| 28. |
F005166
|
[1] |
SEAL RING
|
|
| 28. |
F005166
|
[8] |
SEAL RING
|
|
| 29. |
F022417
|
[1] |
Elbow Fitting
|
|
