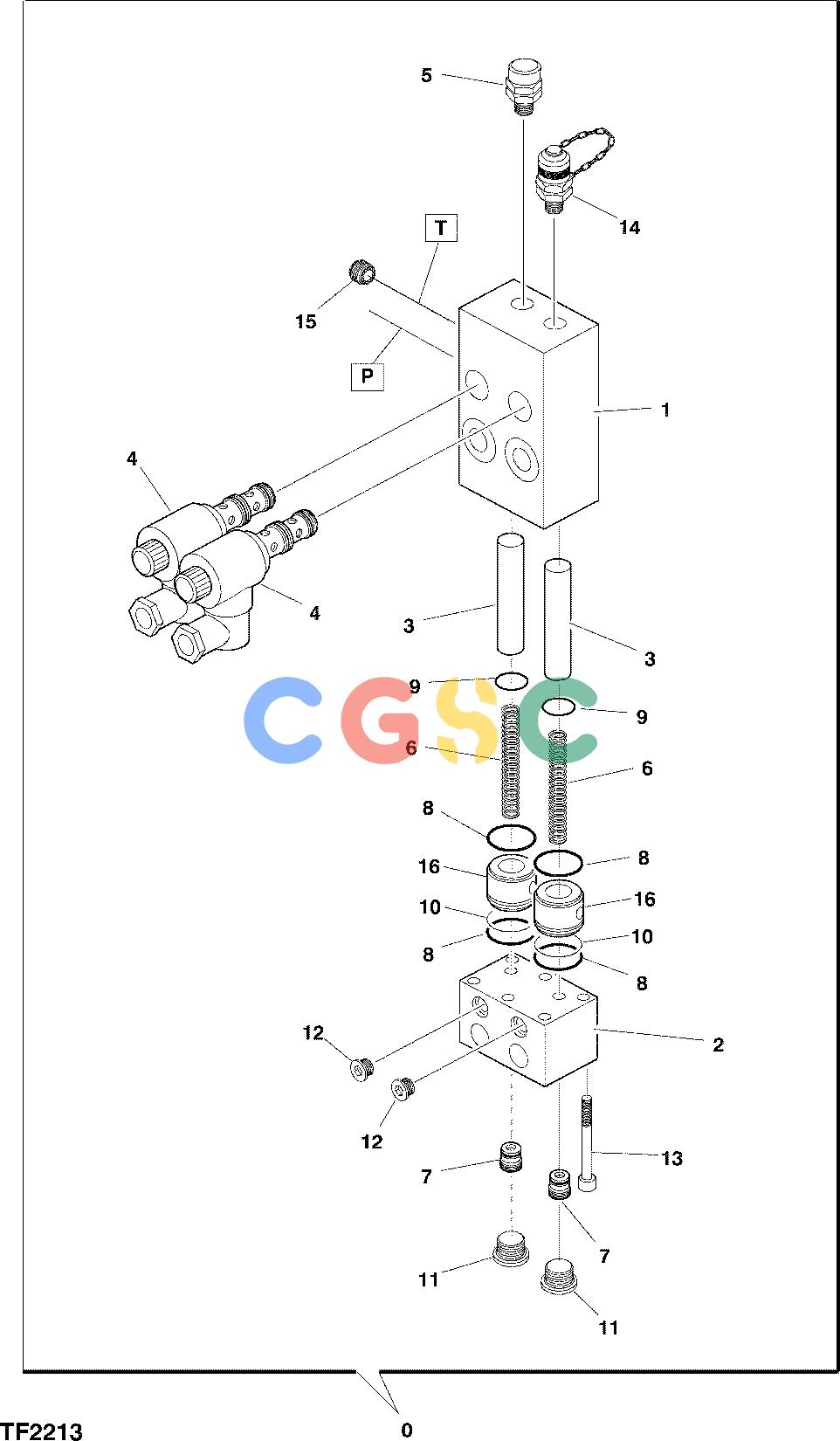

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE PAINT MARKING PUMP F045006 11 78.3 TF2213 [TF2213]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
602 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
F061482
|
[1] |
Process Pump
|
|
| 1. |
F061485
|
[1] |
Housing
|
|
| 2. |
F061335
|
[1] |
Cover
|
|
| 3. |
F060757
|
[2] |
Piston
|
|
| 4. |
F048437
|
[2] |
Control Valve
|
|
| |
F028789
|
[2] |
Solenoid
|
|
| 5. |
F021684
|
[1] |
REDUCING VALVE
|
|
| |
F021587
|
[1] |
Seal Kit
|
|
| 6. |
F021685
|
[2] |
Spring
|
|
| 7. |
F059996
|
[2] |
Check Valve
|
|
| 8. |
F008449
|
[4] |
O-Ring
|
|
| 9. |
F060758
|
[2] |
O-Ring
|
|
| 10. |
F060759
|
[2] |
O-Ring
|
|
| 11. |
F018111
|
[2] |
Plug
|
|
| 12. |
F011293
|
[2] |
Plug
|
|
| 13. |
F016303
|
[6] |
Cap Screw
|
|
| 14. |
F057716
|
[1] |
Fitting
|
|
| 15. |
F008631
|
[1] |
Check Valve
|
|
| 16. |
F060760
|
[2] |
Sleeve
|
|
