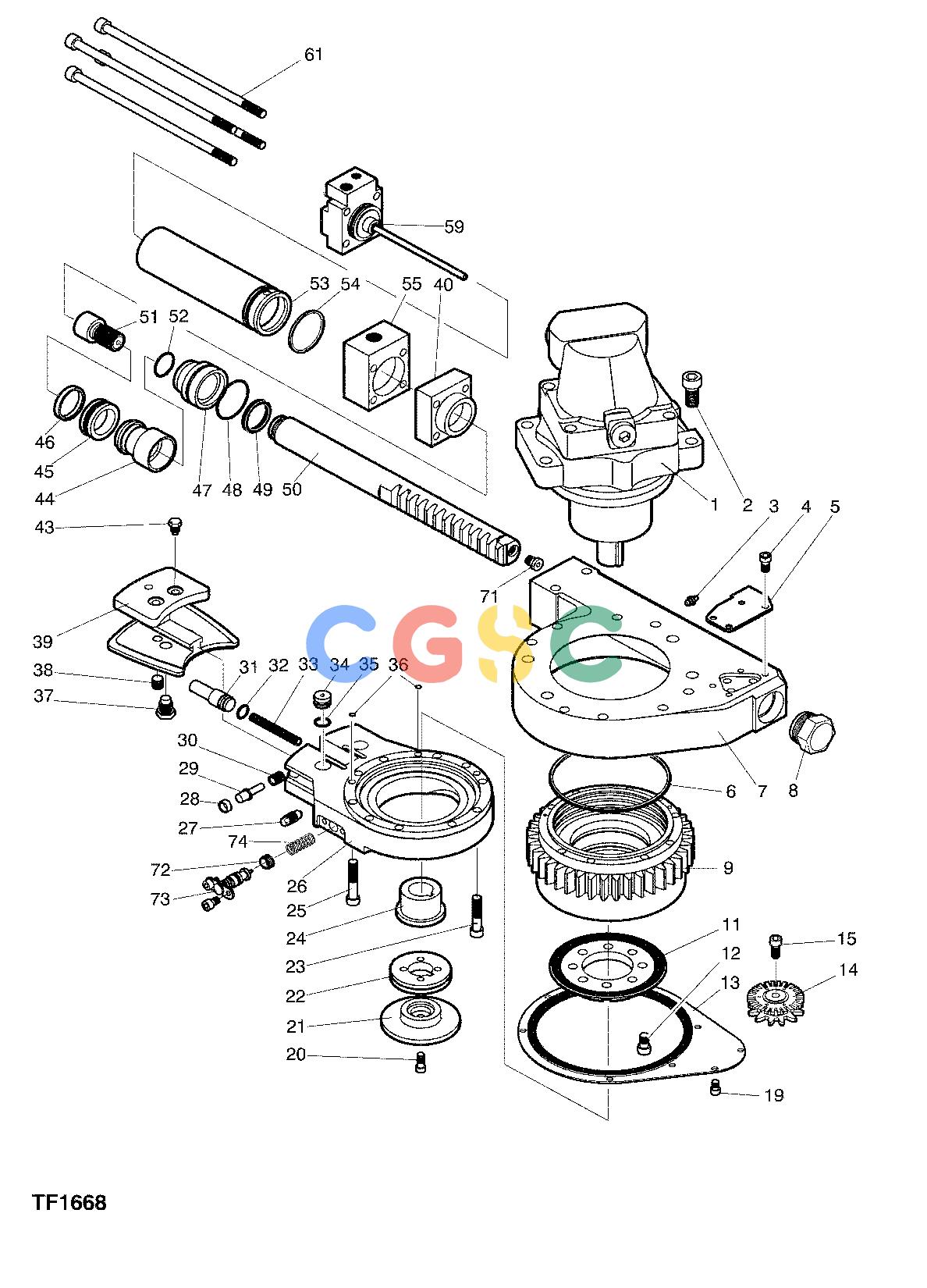

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE SAW UNIT, SUPERCUT 100 F045006 11 88 TF1668 [TF1668]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
876 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F059548
|
[1] |
Hydraulic Motor
|
|
| 2. |
F057426
|
[4] |
Cap Screw
|
|
| 3. |
F003727
|
[1] |
GREASE NIPPLE
|
|
| 4. |
F056047
|
[4] |
Cap Screw
|
|
| 5. |
F056036
|
[1] |
Cover
|
|
| 6. |
F056033
|
[3] |
Seal
|
|
| 7. |
F056034
|
[1] |
Bracket
|
|
| 8. |
F056031
|
[1] |
Plug
|
|
| 9. |
F056032
|
[1] |
Gear
|
|
| 11. |
F059549
|
[1] |
Washer
|
|
| 12. |
F056048
|
[8] |
Cap Screw
|
|
| 13. |
F057433
|
[1] |
Washer
|
|
| 14. |
F434977
|
[1] |
Wheel
|
|
| 15. |
F057427
|
|
Screw
|
|
| 19. |
F056049
|
[8] |
Cap Screw
|
|
| 20. |
F003411
|
[1] |
Cap Screw
|
|
| 21. |
F058982
|
[1] |
CHAIN CATCHER
|
|
| 22. |
F046097
|
[1] |
SPROCKET WHEEL
|
|
| 23. |
F010829
|
[8] |
Cap Screw
|
|
| 24. |
F058983
|
[1] |
Washer
|
|
| 25. |
F052837
|
[2] |
Cap Screw
|
|
| 26. |
F056023
|
[1] |
Bracket
|
|
| 27. |
F056024
|
[1] |
Screw
|
|
| 28. |
F056021
|
[1] |
Bushing
|
|
| 29. |
F056022
|
[1] |
LOCK PIN
|
|
| 30. |
F056019
|
[1] |
Spring
|
|
| 31. |
F056020
|
[1] |
Piston
|
|
| 32. |
F004573
|
[1] |
O-Ring
|
|
| 33. |
F057430
|
|
Spring
|
|
| 34. |
F056018
|
[2] |
Piston
|
|
| 35. |
F004568
|
[2] |
O-Ring
|
|
| 36. |
F056044
|
[2] |
O-Ring
|
|
| 37. |
F038417
|
[2] |
Screw
|
|
| 38. |
F056051
|
[2] |
Set Screw
|
|
| 39. |
F058976
|
[1] |
Holder
|
|
| 39. |
F060989
|
|
Adapter
|
|
| 40. |
F057431
|
[1] |
Spacer
|
|
| 43. |
F056015
|
[2] |
Screw
|
|
| 44. |
F056016
|
[1] |
Piston
|
|
| 45. |
F056013
|
[1] |
Seal
|
|
| 46. |
F056014
|
[1] |
GUIDE RING
|
|
| 47. |
F056011
|
[1] |
Cap
|
|
| 48. |
F056045
|
[2] |
O-Ring
|
|
| 49. |
F056012
|
[1] |
Seal
|
|
| 50. |
F056009
|
[1] |
PISTON ROD
|
|
| 51. |
F058843
|
[1] |
Fitting
|
|
| 52. |
F013913
|
[1] |
O-Ring
|
|
| 53. |
F056007
|
[1] |
CYLINDER TUBE
|
|
| 54. |
F057434
|
[1] |
Seal
|
|
| 55. |
F056005
|
[1] |
Flange
|
|
| 59. |
F058838
|
[1] |
Pump
|
|
| 61. |
F056050
|
[4] |
Cap Screw
|
|
| 71. |
F010192
|
[1] |
Plug
|
|
| 72. |
F055995
|
[1] |
Check Valve
|
|
| 72. |
F062033
|
[1] |
Check Valve
|
|
| 73. |
F434971
|
[1] |
Valve
|
|
| 74. |
F057429
|
[1] |
Spring
|
|
| |
F056037
|
[1] |
Seal Kit
|
|
| |
F003277
|
[1] |
LOCKING FLUID
|
|
