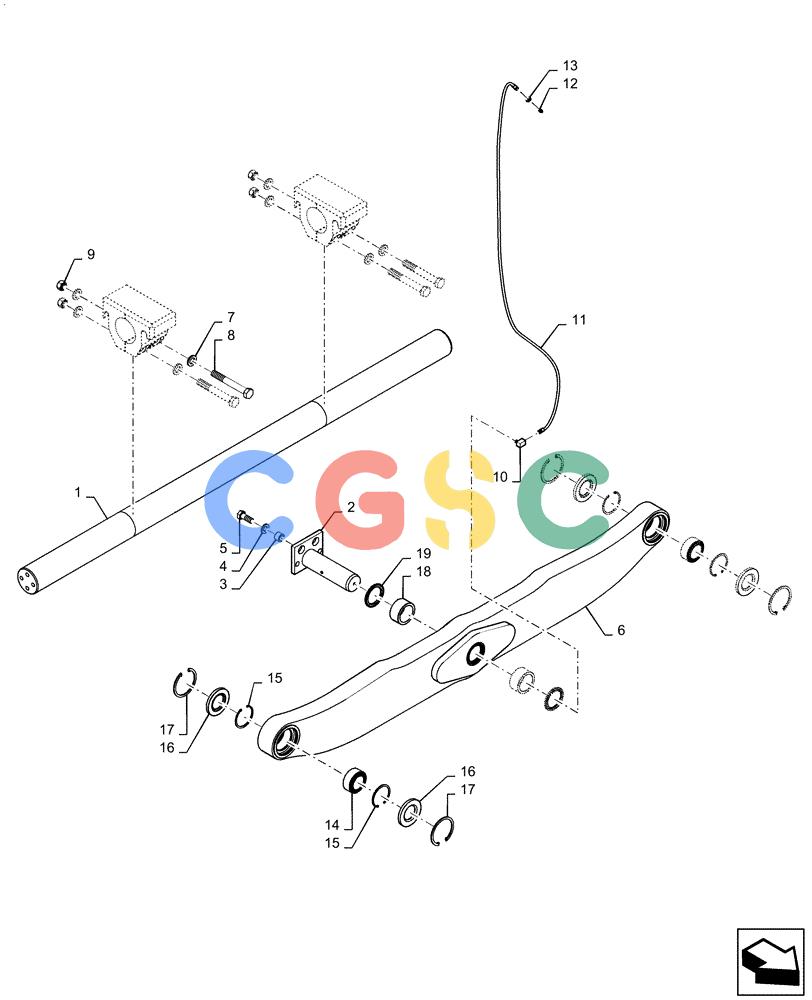

纽荷兰零件查询(D180C LT) - CRAWLER DOZER - TIER 4A (12/13-) (25.400.AR[01]) - SUSPENSION NARROW New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
142 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84537593 | [1] | SHAFT | BURPivot |
| 2. | 84301353 | [1] | SPECIAL PIN | BURCenter |
| 3. | 87652972 | [2] | BUSHING | BUR |
| 4. | 87655047 | [2] | SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm, HTS, BORON | BUR |
| 5. | 87563127 | [2] | BOLT,Hex, M20 x 50mm, Cl 10.9 | BHBM20 x 50mm |
| 6. | 47462023 | [1] | BEAM | BUREqualizer LT Superseded by part number: 47705794 |
| 7. | 87016608 | [8] | WASHER,25.8mm ID x 44.5mm OD x 5mm Thk | RAC |
| 8. | 47567994 | [4] | BOLT,Hex, M24 x 180mm, Cl 10.9 | BHBM24 x 180mm |
| 9. | 829-1424 | [4] | NUT,M24, Cl 10 | CAS Superseded by part number: 9848973, 87778058 |
| 10. | 217-1014 | [1] | ELBOW,90º, 1/8"-27 Female x 1/8"-27 Male | CAS Superseded by part number: 217-20 |
| 11. | 84588575 | [1] | HOSE ASSY.,4mm ID x 1430mm L, SAE 100R7 | BURGrease |
| 12. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| 13. | 76085536 | [1] | NUT,1/8-27 NPSM | LEC1/8 - 27 Superseded by part number: 700713413 |
| 14. | 87381270 | [2] | SPHERICAL BEARING,60mm ID x 90mm OD x 44mm W | BUR |
| 15. | 11062476 | [4] | SNAP RING,M90, Int | TTF Superseded by part number: |
| 16. | 84340877 | [4] | OIL SEAL | BHBEqualizer |
| 17. | 11075676 | [4] | SNAP RING,M115, Int | MKT |
| 18. | 47411768 | [2] | BUSHING,70.22mm ID x 90mm OD x 44.5mm L | BURCenter Pin EQ Beam |
| 19. | 47462151 | [2] | SEAL | BURCenter Pin Grease |
