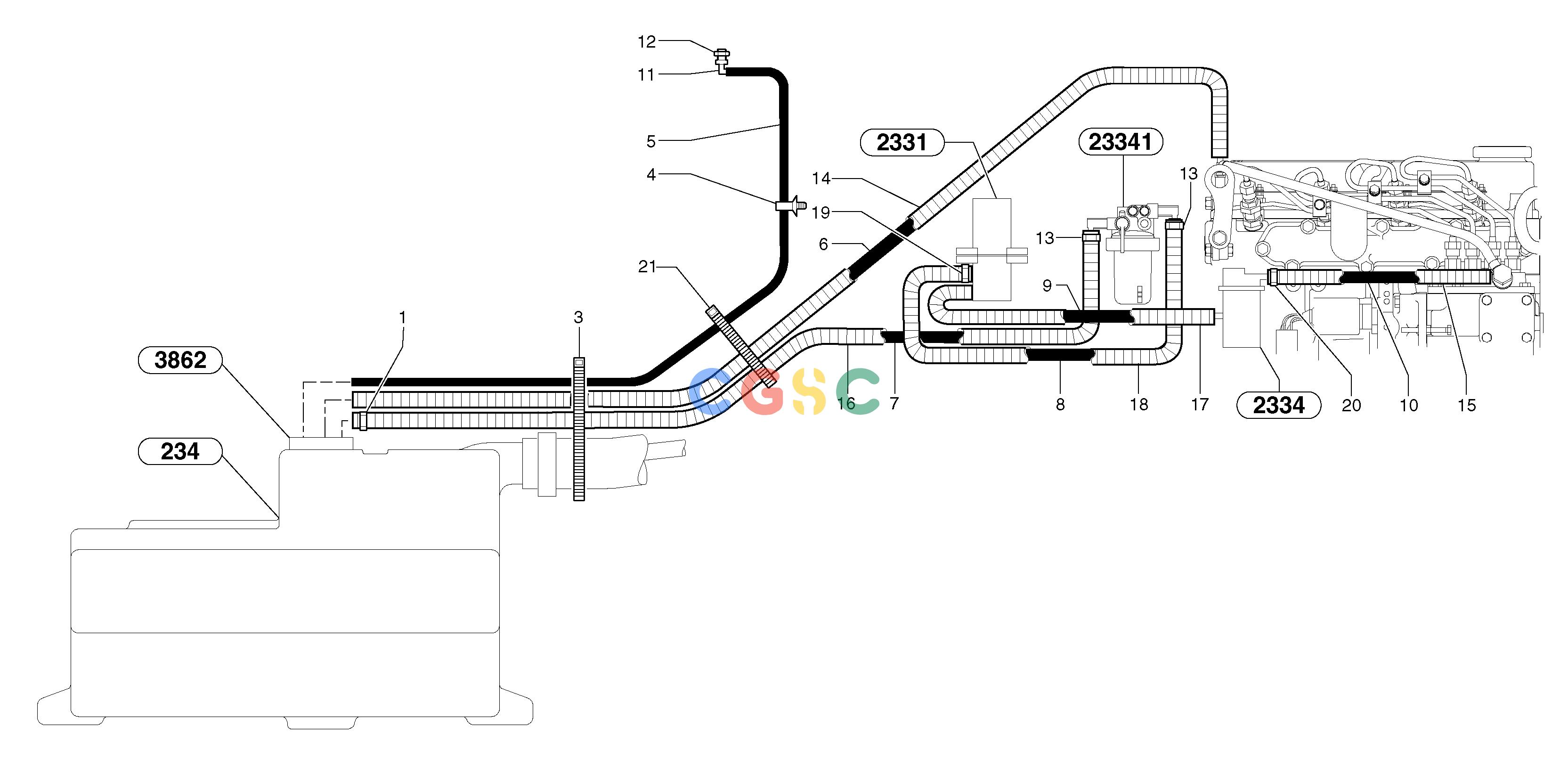

沃尔沃零件查询EC35 Fuel circuitTYPE 283283.10151 283.13224-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
796 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11806773
|
[1] |
Clamp
|
|
| 3. |
PJ4690172
|
[5] |
Clamp
|
|
| 4. |
VOE11803840
|
[1] |
Strip clamp
|
|
| 5. |
VOE11802782
|
[REQ] |
Tube
|
L = 2100mm / 82.6770in
|
| 6. |
VOE11801991
|
[REQ] |
Tube
|
L = 1780mm / 70.0786in
|
| 7. |
VOE11804764
|
[REQ] |
Pipe
|
L = 1900mm / 74.8030in
|
| 8. |
VOE11801991
|
[REQ] |
Tube
|
L = 430mm / 16.9291in
|
| 9. |
VOE11801991
|
[REQ] |
Tube
|
L = 350mm / 13.7795in
|
| 10. |
VOE11804764
|
[REQ] |
Pipe
|
L = 400 mm / 15.7480 in
|
| 11. |
VOE11802319
|
[1] |
Elbow
|
|
| 12. |
VOE11802318
|
[1] |
Nut
|
|
| 13. |
VOE11804169
|
[2] |
Hose clamp
|
|
| 14. |
PJ2360087
|
[REQ] |
Outer Casing
|
L = 600mm / 23.6220in
|
| 15. |
PJ2360087
|
[REQ] |
Outer Casing
|
L = 400mm / 15.7480in
|
| 16. |
PJ2360087
|
[REQ] |
Outer Casing
|
L = 600mm / 23.6220in
|
| 17. |
PJ2360087
|
[REQ] |
Outer Casing
|
L = 360mm / 14.1732in
|
| 18. |
PJ2360087
|
[REQ] |
Outer Casing
|
L = 500mm / 19.6850in
|
| 19. |
VOE11802316
|
[1] |
Clamp
|
|
| 20. |
VOE11804169
|
[1] |
Hose clamp
|
|
| 21. |
VOE11803561
|
[1] |
Clamp
|
|
