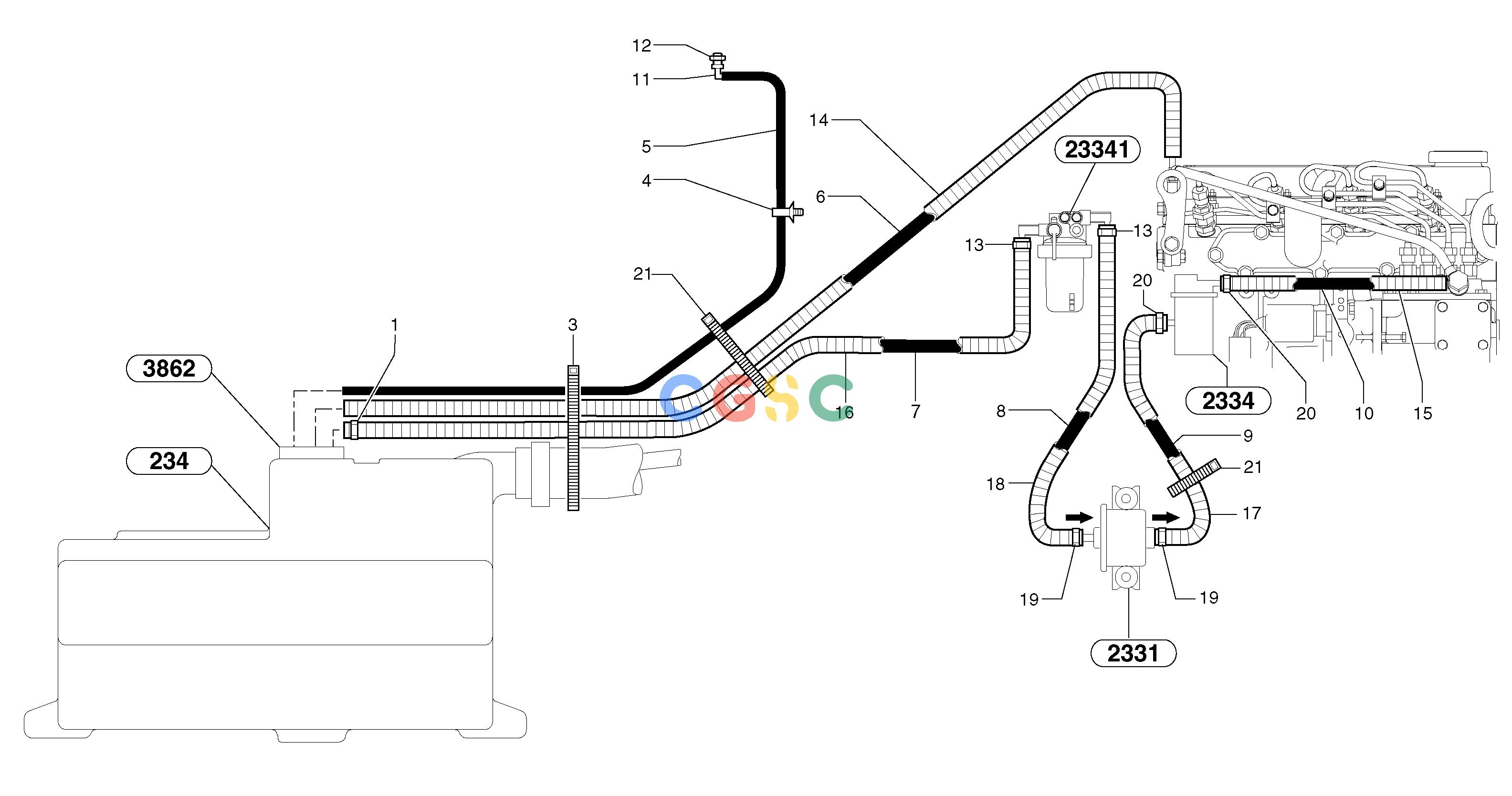

沃尔沃零件查询EC35 Fuel circuitTYPE 283283.13225 283.18462-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
695 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11806773
|
[1] |
Clamp
|
|
| 3. |
VOE4881440
|
[5] |
Cable tie
|
|
| 4. |
VOE11803840
|
[1] |
Strip clamp
|
|
| 5. |
VOE11802782
|
[REQ] |
Tube
|
L = 2100mm / 82.6770in
|
| 6. |
VOE11801991
|
[REQ] |
Tube
|
L = 1780mm / 70.0786in
|
| 7. |
VOE11804764
|
[REQ] |
Pipe
|
L = 1760mm / 69.2912in
|
| 8. |
VOE11801991
|
[REQ] |
Tube
|
L = 560mm / 22.0472in
|
| 9. |
VOE11801991
|
[REQ] |
Tube
|
L = 650mm / 25,5905in
|
| 10. |
VOE11801991
|
[REQ] |
Tube
|
L = 500mm / 19,6850in
|
| 11. |
VOE11802319
|
[1] |
Elbow
|
|
| 12. |
VOE11802318
|
[1] |
Nut
|
|
| 13. |
VOE11804169
|
[2] |
Hose clamp
|
|
| 14. |
VOE11804762
|
[REQ] |
Outer casing
|
L = 600mm / 23.6220in
|
| 15. |
VOE11804762
|
[REQ] |
Outer casing
|
L = 450mm / 17.7165in
|
| 16. |
VOE11804762
|
[REQ] |
Outer casing
|
L = 460mm / 18.1102in
|
| 17. |
VOE11804762
|
[REQ] |
Outer casing
|
L = 600mm / 23.6220in
|
| 18. |
VOE11804762
|
[REQ] |
Outer casing
|
L = 510mm / 20.0787in
|
| 19. |
VOE11802316
|
[2] |
Clamp
|
|
| 20. |
VOE11802316
|
[2] |
Clamp
|
|
| 21. |
VOE11803561
|
[3] |
Clamp
|
|
