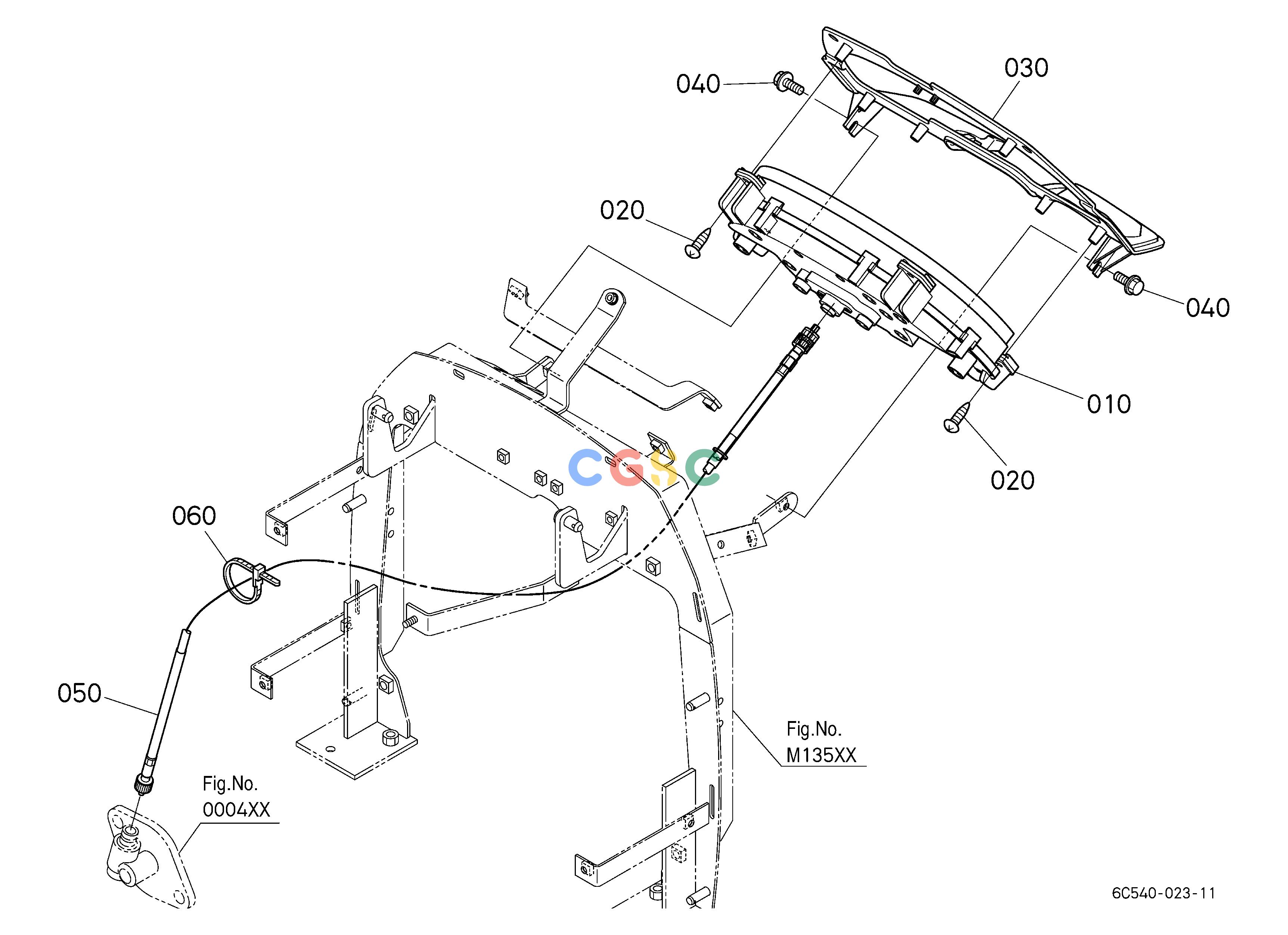

久保田零件查询B11500 PANEL ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
714 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54030200
|
[1] |
PANEL,ASSY(METER)
|
1.8040(lbs); 0.820
|
| 020. |
0351450420
|
[6] |
SCREW,TAPPING
|
0.0044(lbs); 0.002
|
| 030. |
6C44253522
|
[1] |
COVER(METER PANEL)
|
0.3300(lbs); 0.150
|
| 030. |
6E20053520
|
[1] |
COVER(METER PANEL)
|
0.3520(lbs); 0.160
|
| 040. |
0175450616
|
[4] |
BOLT,FLANGE
|
0.0132(lbs); 0.006
|
| 050. |
6C04055443
|
[1] |
CABLE,HOUR METER
|
0.4400(lbs); 0.200
|
| 060. |
5358164150
|
[1] |
BAND,CORD
|
0.0044(lbs); 0.002
|
