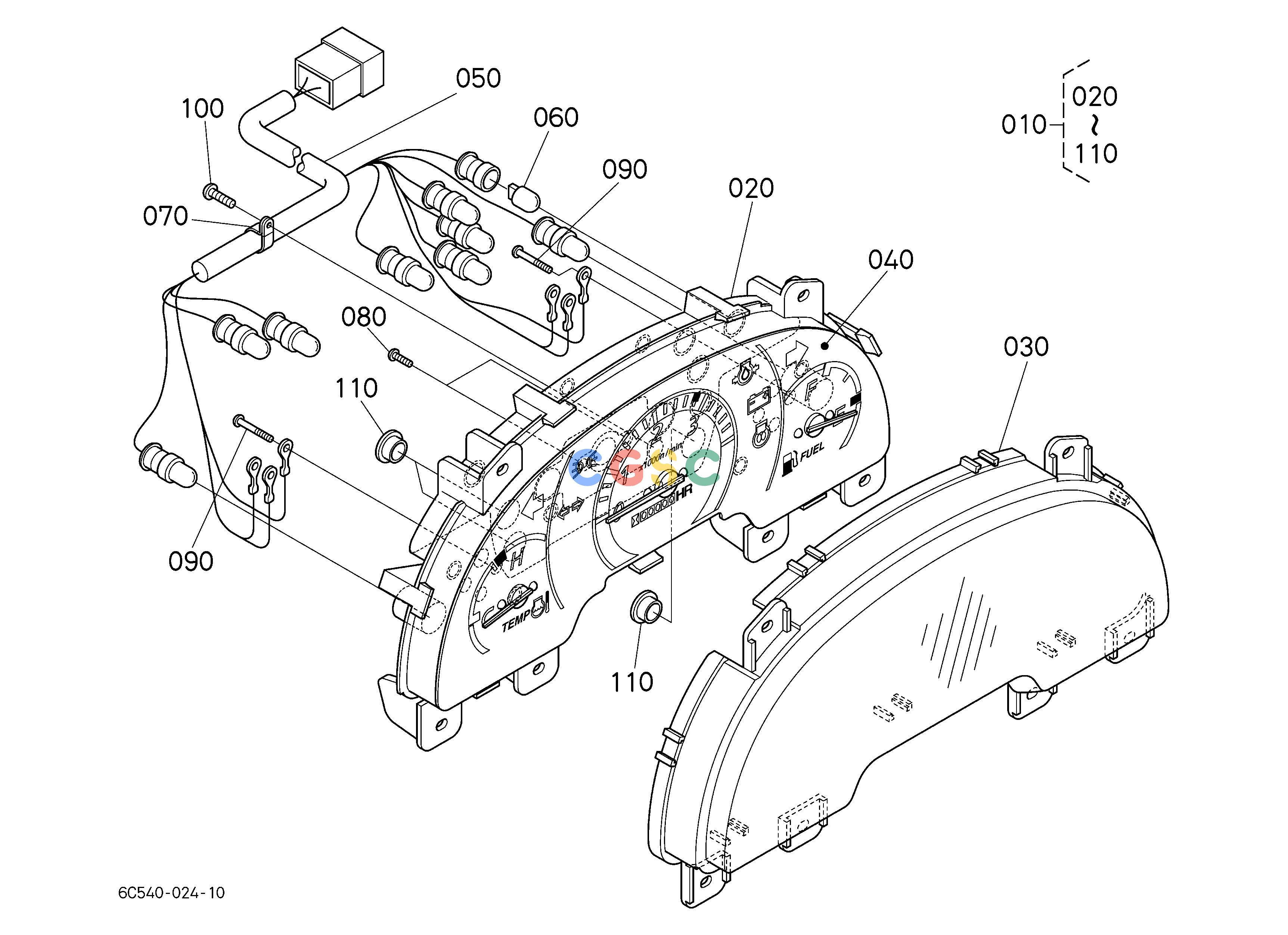

久保田零件查询B12000 PANEL [COMPONENT PARTS] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
237 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54030200
|
[1] |
PANEL,ASSY(METER)
|
1.8040(lbs); 0.820
|
| 020. |
6C54030210
|
[1] |
CASE,ASSY(METER PANEL)
|
0.7920(lbs); 0.360
|
| 030. |
6A70030220
|
[1] |
GLASS
|
0.4400(lbs); 0.200
|
| 040. |
6C20030230
|
[1] |
CASE(METER PANEL)
|
0.7040(lbs); 0.320
|
| 050. |
6C54030260
|
[1] |
HARNESS,WIRE
|
0.2200(lbs); 0.100
|
| 060. |
6A70030270
|
[9] |
LAMP
|
0.0044(lbs); 0.002
|
| 070. |
6C20030280
|
[1] |
CLAMP
|
0.0022(lbs); 0.001
|
| 080. |
6C04055150
|
[2] |
SCREW
|
0.0044(lbs); 0.002
|
| 090. |
6610155810
|
[6] |
SCREW
|
0.0022(lbs); 0.001
|
| 100. |
6A70030240
|
[1] |
SCREW
|
0.0044(lbs); 0.002
|
| 110. |
6C20030270
|
[3] |
PLUG
|
0.0022(lbs); 0.001
|
