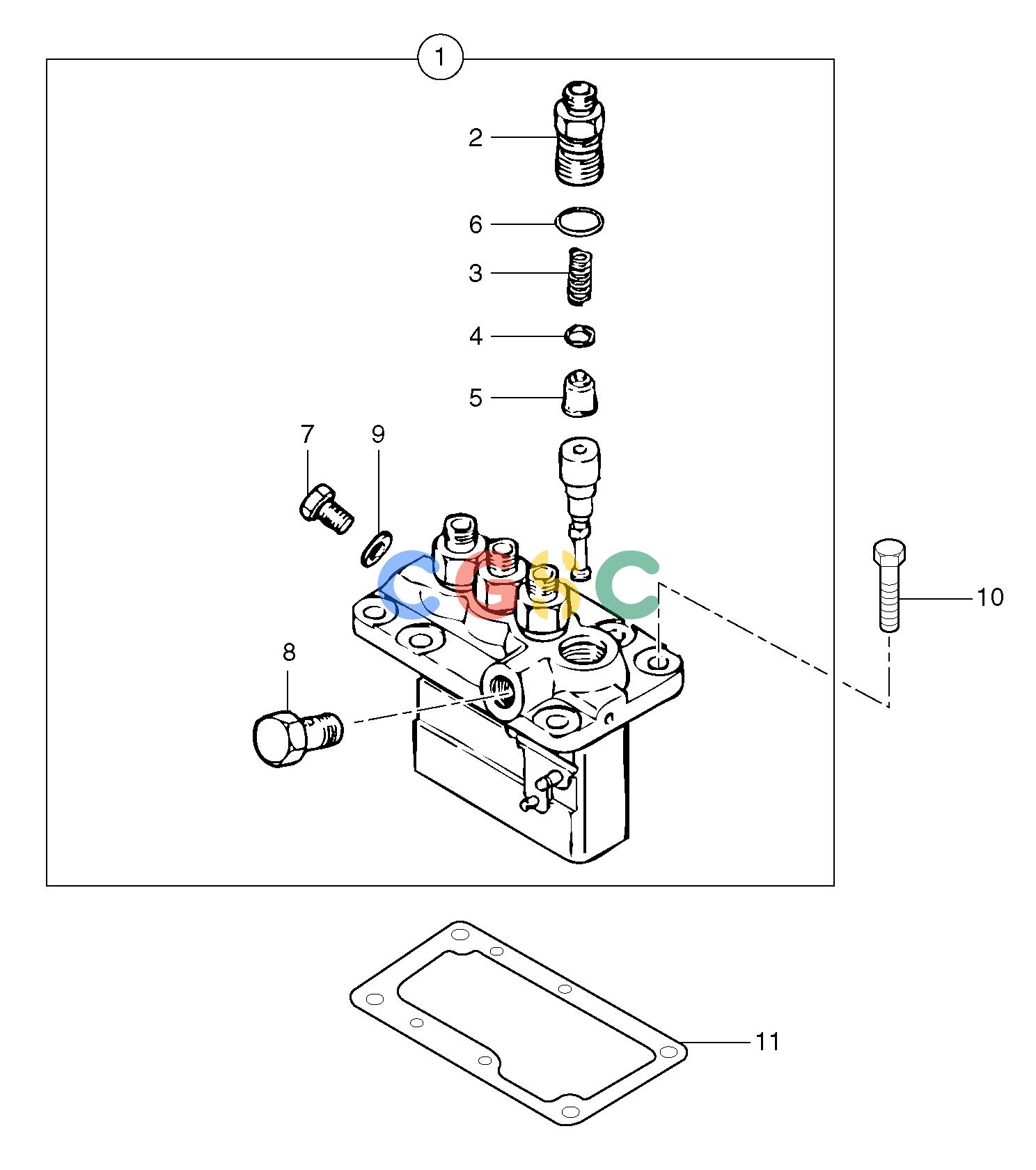

沃尔沃零件查询EC35 Injection pumpTYPE 283283.10151 283.18462-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
483 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7417849
|
[1] |
Injection Pump
|
|
| 2. |
PJ7410371
|
[4] |
Nipple
|
|
| 3. |
PJ7411351
|
[4] |
Spring
|
|
| 4. |
PJ7412098
|
[4] |
Seal
|
|
| 5. |
PJ7415424
|
[4] |
Reed Valve
|
|
| 6. |
PJ7410341
|
[4] |
O-ring
|
|
| 7. |
PJ7410360
|
[1] |
Screw
|
|
| 8. |
PJ7415553
|
[1] |
Nipple
|
|
| 9. |
PJ7417623
|
[1] |
Washer
|
|
| 10. |
PJ7415319
|
[6] |
Screw
|
|
| 11. |
PJ7415351
|
[REQ] |
Shim
|
THICK = 0,20mm/0.0079in
|
| 11. |
PJ7415352
|
[REQ] |
Shim
|
THICK = 0,70mm/0,0276in
|
| 11. |
PJ7415353
|
[REQ] |
Shim
|
THICK = 0,80mm/0,0315in
|
| 11. |
PJ7415354
|
[REQ] |
Shim
|
THICK = 0,90mm/0.0354in
|
| 11. |
PJ7415355
|
[REQ] |
Shim
|
THICK = 1,0mm/0.0394in
|
