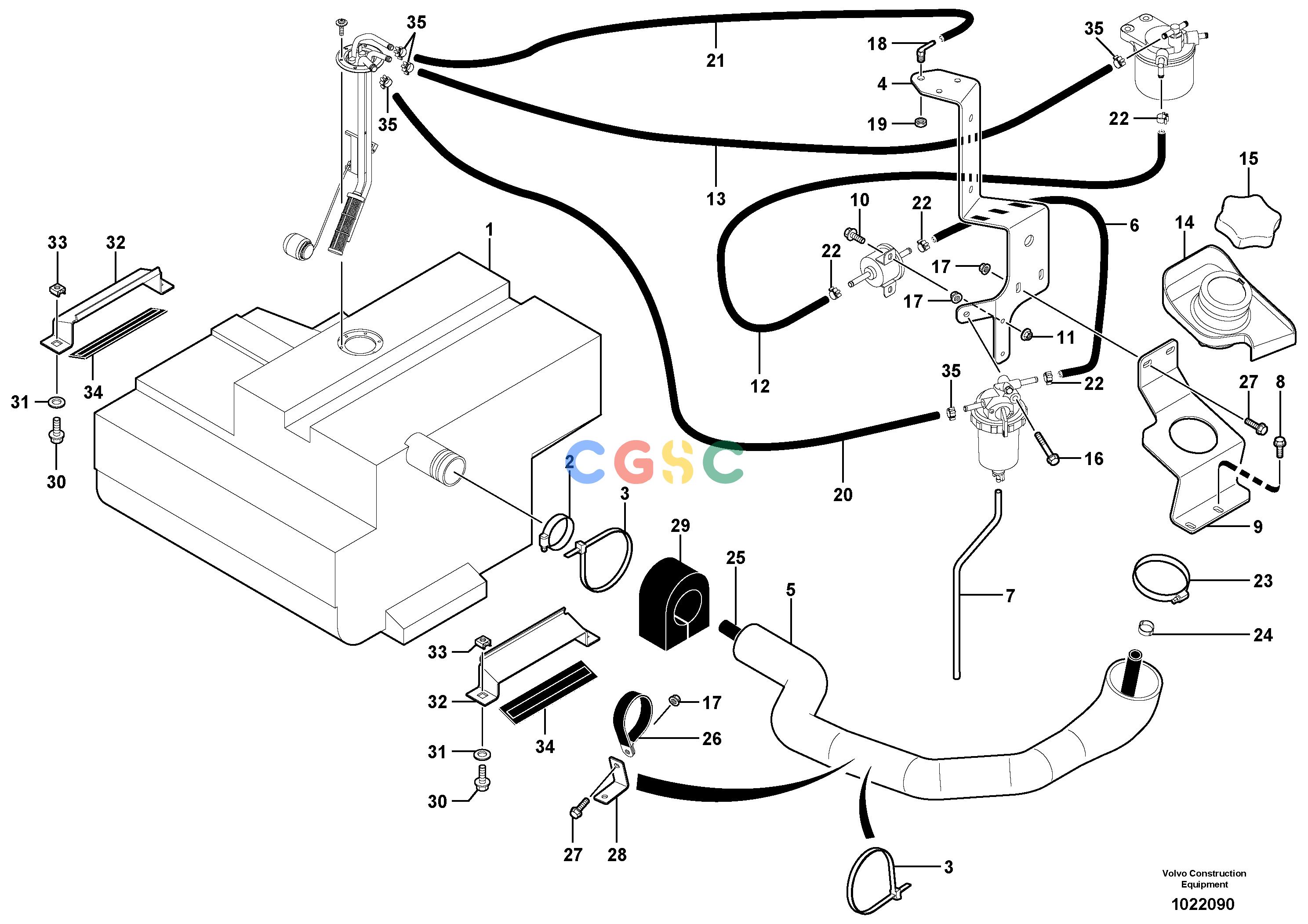

沃尔沃零件查询EC35 Fuel circuitTYPE 283.-283.18963NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
484 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
Fuel tank
|
|
| 2. |
VOE943479
|
|
Hose clamp
|
|
| 3. |
VOE4881440
|
|
Cable tie
|
|
| 4. |
VOE11806842
|
|
Support
|
|
| 5. |
VOE11806104
|
|
Hose
|
|
| 6. |
VOE11806863
|
|
Tube
|
|
| 7. |
VOE11806868
|
|
Tube
|
|
| 8. |
VOE946440
|
|
Flange screw
|
|
| 9. |
VOE11805674
|
|
Inlet flange
|
|
| 10. |
VOE946934
|
|
Flange screw
|
|
| 11. |
VOE945407
|
|
Flange nut
|
|
| 12. |
VOE11806864
|
|
Tube
|
|
| 13. |
VOE11807842
|
|
Tube
|
|
| 14. |
VOE11806436
|
|
Deflector
|
|
| 15. |
VOE11802315
|
|
Plug
|
|
| 16. |
VOE965181
|
|
Flange screw
|
|
| 17. |
VOE945408
|
|
Flange nut
|
|
| 18. |
VOE11802319
|
|
Elbow
|
|
| 19. |
VOE11802318
|
|
Nut
|
|
| 20. |
VOE11807841
|
|
Tube
|
|
| 21. |
VOE11807843
|
|
Tube
|
|
| 22. |
VOE11802316
|
|
Clamp
|
|
| 23. |
VOE943482
|
|
Hose clamp
|
|
| 24. |
VOE947520
|
|
Hose clamp
|
|
| 25. |
VOE11806867
|
|
Tube
|
L = 1180MM
|
| 26. |
VOE11806253
|
|
Cable clamp
|
|
| 27. |
VOE60113082
|
|
Flange screw
|
|
| 28. |
VOE11805327
|
|
Support
|
|
| 29. |
VOE11806325
|
|
Plate
|
|
| 30. |
VOE946329
|
|
Flange screw
|
|
| 31. |
VOE960143
|
|
Plain washer
|
|
| 32. |
VOE11802323
|
|
Flange
|
|
| 33. |
VOE11802303
|
|
Cage nut
|
|
| 34. |
VOE11802324
|
|
Strap
|
|
| 35. |
VOE11804169
|
|
Hose clamp
|
|
