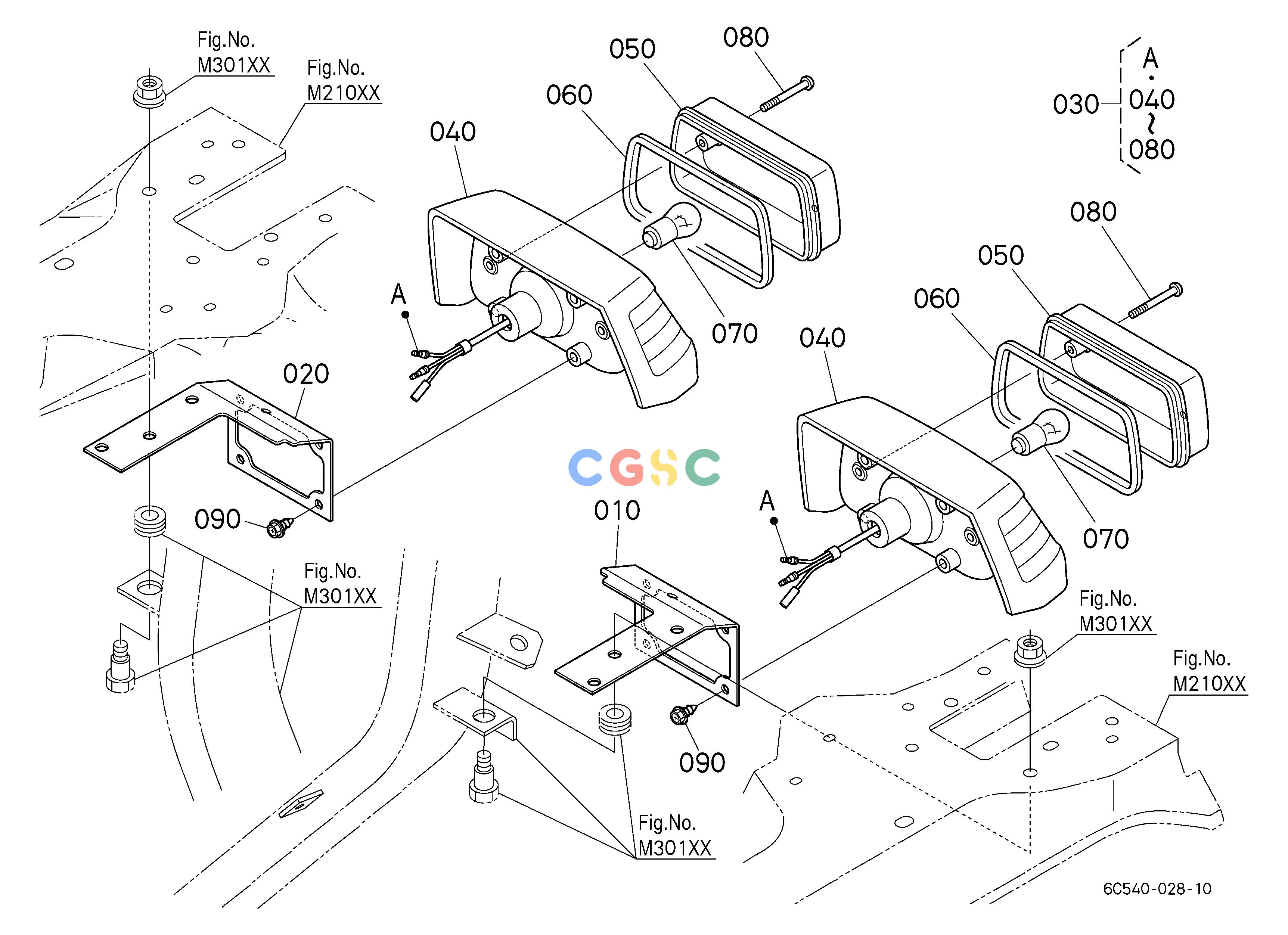

久保田零件查询B30400 TAIL LIGHT ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
606 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20052784
|
[1] |
STAY,COVER LH
|
0.4400(lbs); 0.200
|
| 020. |
6C20052794
|
[1] |
STAY,COVER RH
|
0.4400(lbs); 0.200
|
| 030. |
6C20555470
|
[2] |
ASSY LIGHT,TAIL
|
0.6820(lbs); 0.310
|
| 040. |
6C20055480
|
[2] |
BODY
|
0.4400(lbs); 0.200
|
| 050. |
6C20055490
|
[2] |
LENS,TAIL LIGHT
|
0.1540(lbs); 0.070
|
| 060. |
6C20055510
|
[2] |
GASKET
|
0.0198(lbs); 0.009
|
| 070. |
6C08092150
|
[2] |
BULB
|
0.0220(lbs); 0.010
|
| 080. |
6C20055520
|
[4] |
SCREW,PAN HEAD
|
0.0066(lbs); 0.003
|
| 090. |
6C20052770
|
[8] |
SCREW,TAPPING
|
0.0088(lbs); 0.004
|
