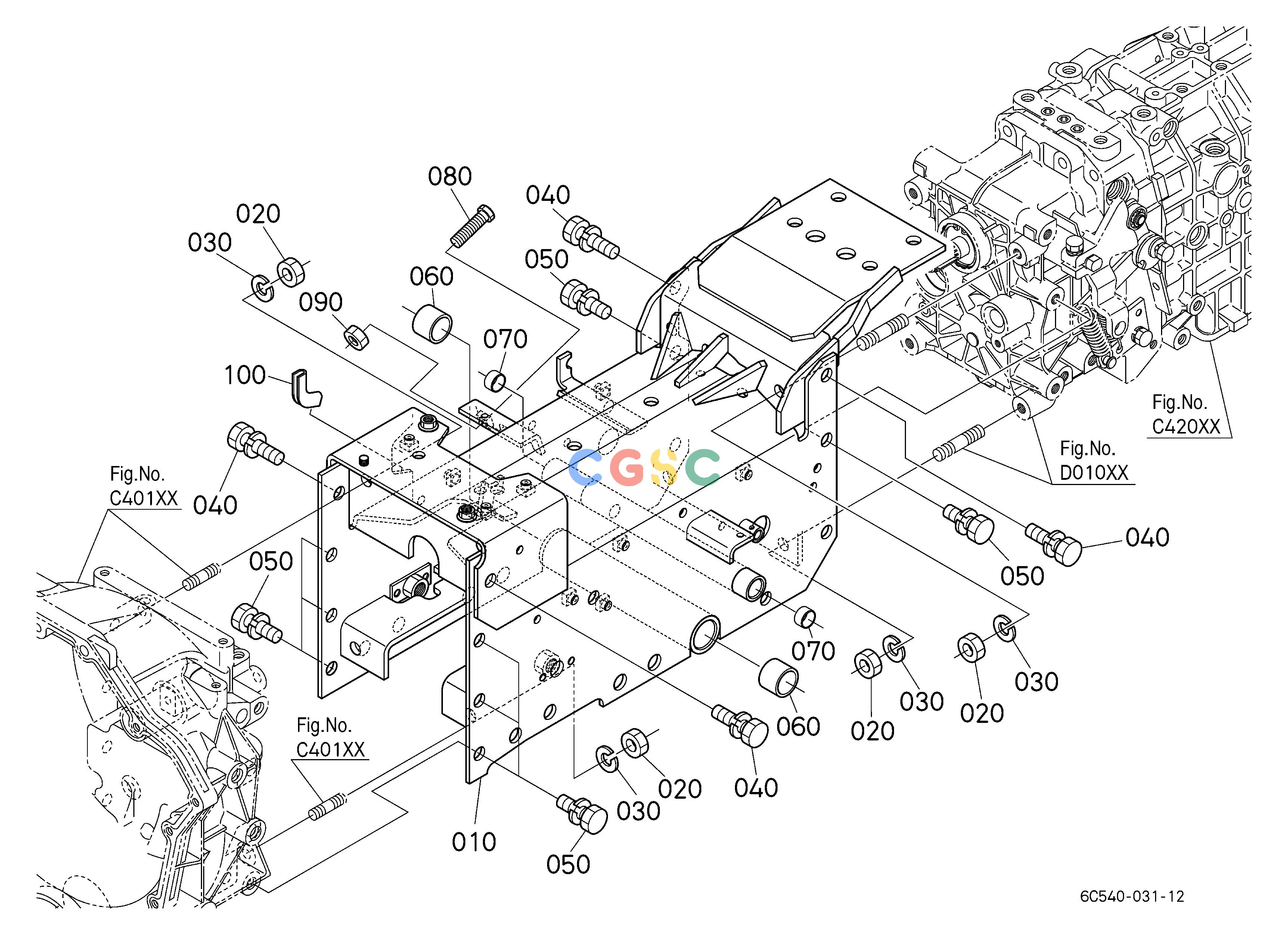

久保田零件查询C41500 CENTER FRAME FRONT AXLEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
370 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54051113
|
[1] |
FRAME,COMP(CENTER)
|
41.8000(lbs); 19.000
|
| 010. |
6C54051115
|
[1] |
FRAME,COMP(CENTER)
|
41.8000(lbs); 19.000
|
| 010. |
6C54051116
|
[1] |
FRAME,COMP(CENTER)
|
41.8000(lbs); 19.000
|
| 020. |
0217450120
|
[8] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 030. |
0451250120
|
[8] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 040. |
0112351240
|
[4] |
BOLT,SEMS
|
0.1056(lbs); 0.048
|
| 050. |
0112351230
|
[8] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 060. |
0851102515
|
[2] |
BUSH
|
0.0264(lbs); 0.012
|
| 070. |
0851101610
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 080. |
6671113320
|
[1] |
BOLT(ADJUSTING)
|
0.0616(lbs); 0.028
|
| 090. |
0211850100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 100. |
5250021210
|
[1] |
RUBBER,U TYPE
|
0.0110(lbs); 0.005
|
