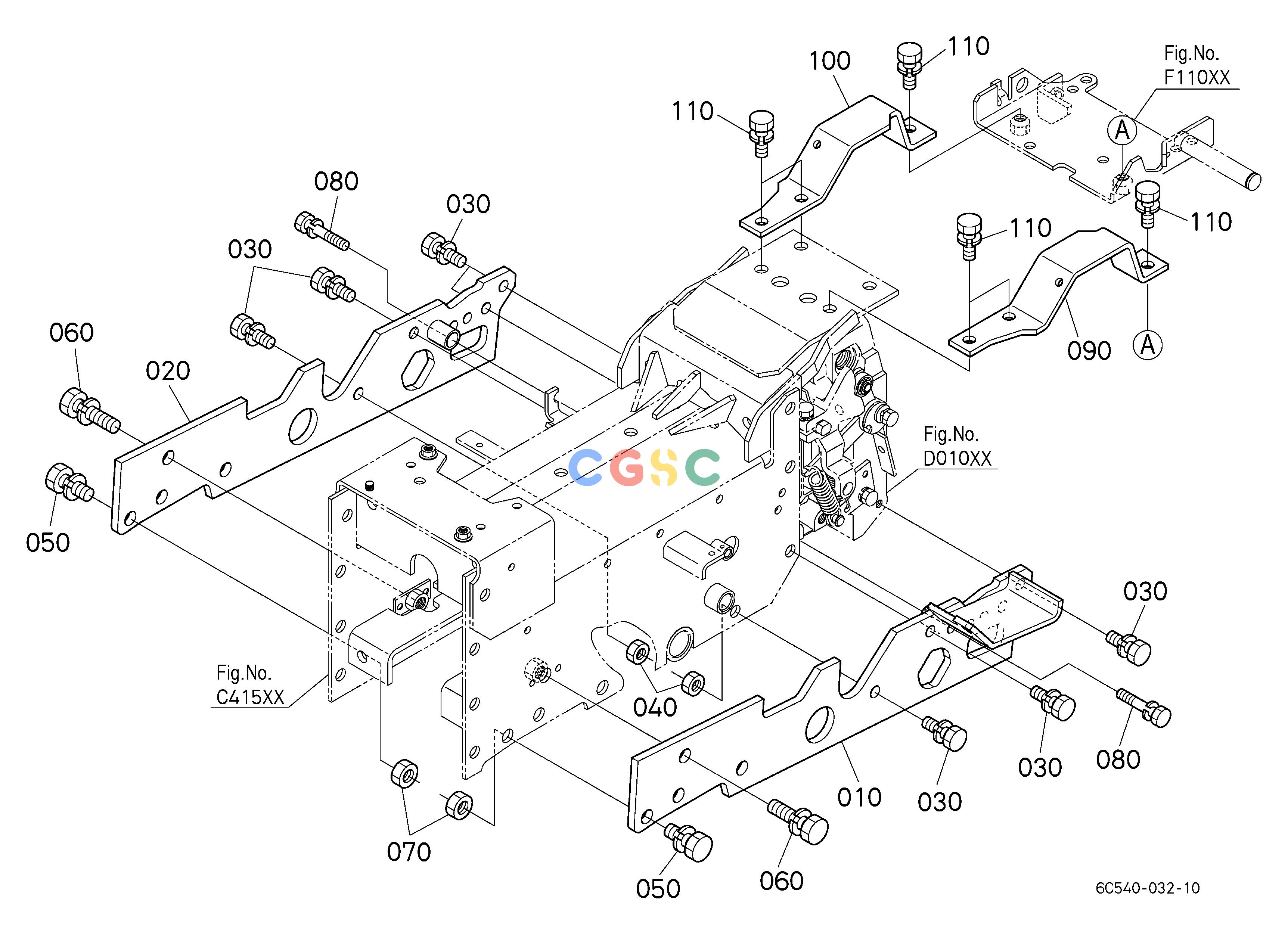

久保田零件查询C41700 SUB FRAME FRONT AXLEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54051132
|
[1] |
FRAME(SUB LH)
|
7.2380(lbs); 3.290
|
| 020. |
6C54051142
|
[1] |
FRAME(SUB RH)
|
6.3140(lbs); 2.870
|
| 030. |
0112351235
|
[7] |
BOLT,SEMS
|
0.0902(lbs); 0.041
|
| 040. |
0211450120
|
[2] |
HEX.NUT
|
0.0242(lbs); 0.011
|
| 050. |
0113351435
|
[2] |
BOLT,SEMS
|
0.1320(lbs); 0.060
|
| 060. |
0113351450
|
[2] |
BOLT,SEMS
|
0.1738(lbs); 0.079
|
| 070. |
0207650140
|
[2] |
NUT
|
0.0484(lbs); 0.022
|
| 080. |
0112351055
|
[2] |
BOLT,SEMS
|
0.0836(lbs); 0.038
|
| 090. |
6C54051160
|
[1] |
PLATE(LH)
|
1.2100(lbs); 0.550
|
| 100. |
6C54051170
|
[1] |
PLATE(RH)
|
1.2100(lbs); 0.550
|
| 110. |
0112351235
|
[6] |
BOLT,SEMS
|
0.0902(lbs); 0.041
|
