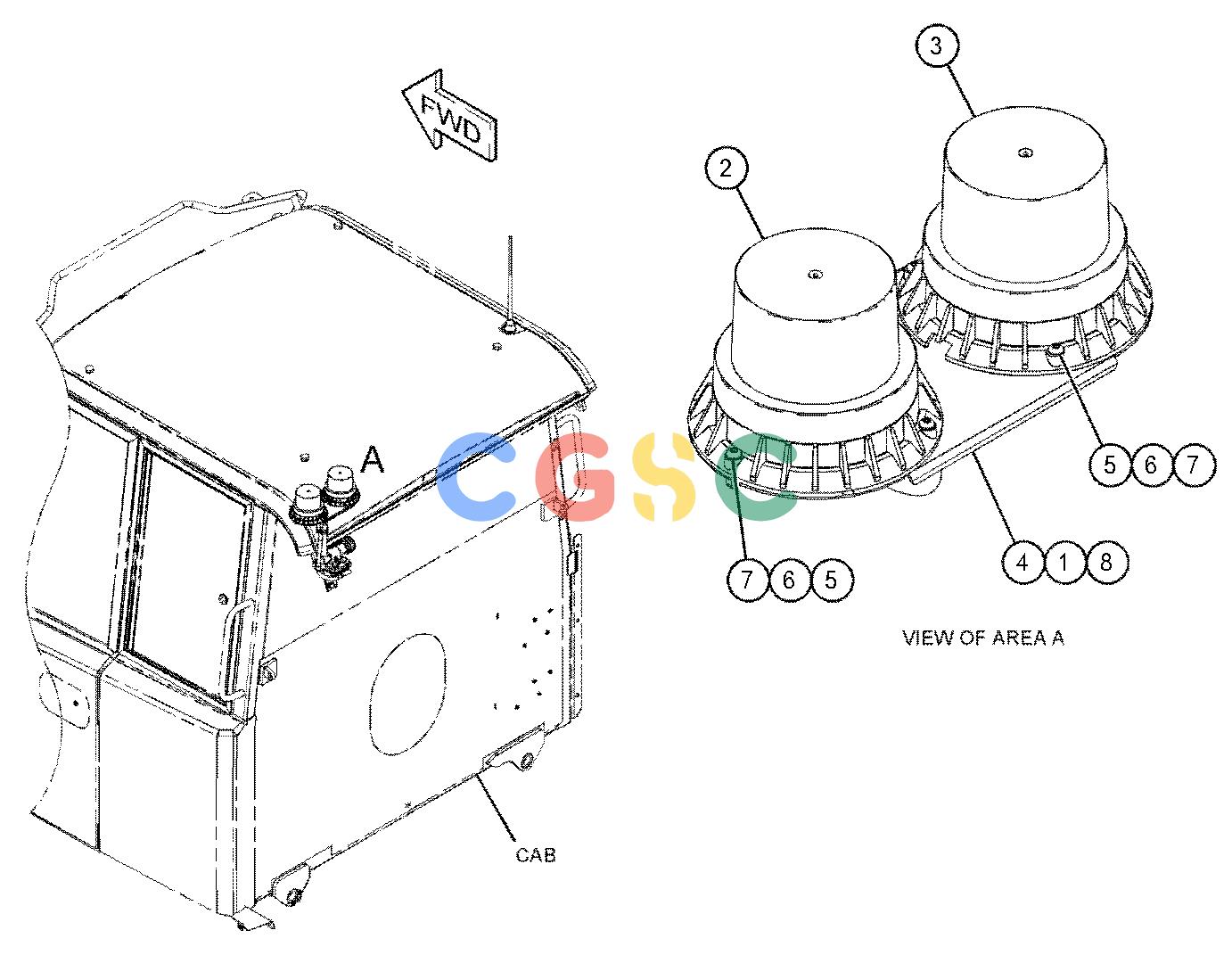

卡特零件查询（725C） 480-3070: LAMP GP-SIGNAL
广数供应链运营团队, 14 02月, 2025，浏览：
827 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 236-5077 | [2] | GROMMET | |
| 2. | 355-7153 | [1] | LAMP GP-SIGNAL(12-VOLT, 24-VOLT, RED) | |
| | 8T-8730 | [3] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 3. | 355-7155 | [1] | LAMP GP-SIGNAL(12-VOLT, 24-VOLT, GREEN) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 4. | 479-7370 | [1] | PLATE AS | |
| 5. | 123-0707M | [6] | SCREW-HEX SOCKET(M4X0.7X20-MM) | |
| 6. | 134-4126 | [12] | WASHER(4.52X8.28X0.76-MM THK) | |
| 7. | 8T-2659M | [6] | LOCKNUT(M4X0.7-THD) | |
| 8. | 9X-2609M | [1] | SETSCREW-SOCKET(M8X1.25X8-MM) | |
| | M | | METRIC PART |
