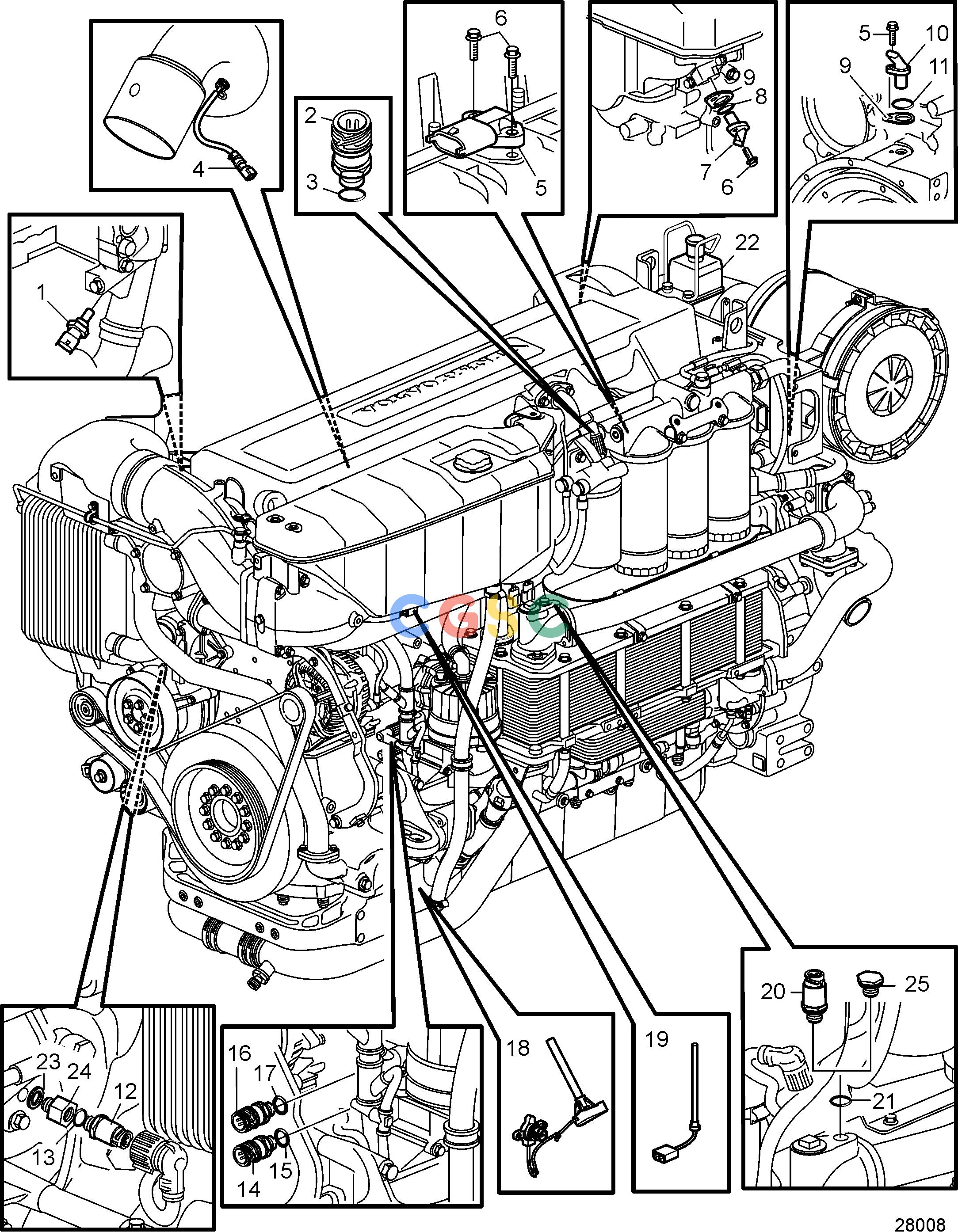

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Electrical SystemContacts and SensorsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
414 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21531072
|
[1] |
Temperature sensor, cooling water temp sensor
|
|
| 2. |
21634021
|
[2] |
Pressure sensor, fuel pressure
|
|
| 3. |
968559
|
[1] |
O-ring
|
|
| 4. |
21126692
|
[1] |
Temperature sensor, wet exhaust
|
|
| 5. |
3843012
|
[1] |
Sensor, charge air pressure/temp
|
|
| 6. |
984725
|
[4] |
Flange screw
|
|
| 7. |
21426987
|
[1] |
Speed monitor, rpm cam gear
|
|
| 8. |
20966752
|
[1] |
O-ring
|
|
| 9. |
20556179
|
[1] |
Shim
|
|
| 10. |
21426987
|
[1] |
Speed monitor, rpm flywheel
|
|
| 11. |
20966752
|
[1] |
O-ring
|
|
| 12. |
22052384
|
[1] |
Pressure sensor, fresh water
|
|
| 13. |
984797
|
[1] |
O-ring
|
|
| 14. |
21634017
|
[1] |
Pressure sensor, crankcase pressure
|
|
| 15. |
968559
|
[1] |
O-ring
|
|
| 16. |
21634021
|
[1] |
Pressure sensor, oil-pressure
|
SN-2013690140
|
| 16. |
22899626
|
[1] |
Pressure sensor
|
SN2013690141-
|
| 17. |
968559
|
[1] |
O-ring
|
|
| 18. |
22022794
|
[1] |
Oil level sensor
|
|
| 19. |
21872119
|
[1] |
Level sensor
|
|
| 20. |
22052384
|
[1] |
Pressure sensor
|
SN-1013523799
|
| 21. |
984797
|
[1] |
O-ring
|
|
| 22. |
47702050_109
|
|
Emergency stop
|
|
| 23. |
976931
|
[1] |
Gasket
|
|
| 24. |
21759665
|
[1] |
Adapter
|
|
| 25. |
960632
|
[1] |
Plug
|
SN1013523800-
|
