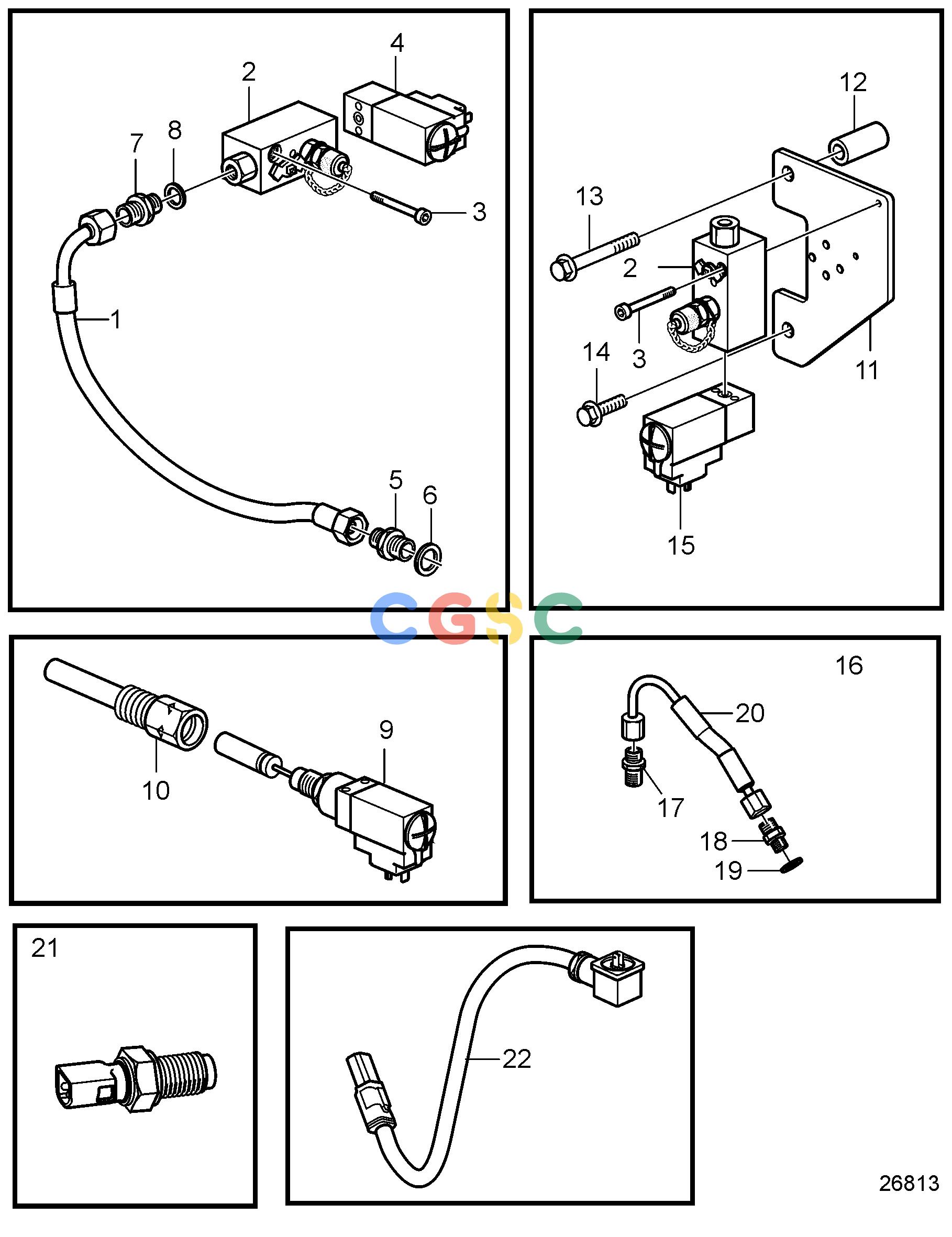

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Electrical SystemContacts, Sensors and Panel. Shut Down SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1011 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3835380
|
[1] |
Hose
|
IPS
|
| 1. |
22464668
|
[1] |
Hose
|
Reverse gear
|
| 2. |
3831442
|
[2] |
Block
|
|
| 3. |
947671
|
[4] |
Hex. socket screw
|
|
| 4. |
21294587
|
[1] |
Pressure monitor
|
For IPS, 0-4 bar
|
| 4. |
889629
|
[1] |
Pressure monitor
|
Reverse Gear, 5-30bar
|
| 5. |
991057
|
[1] |
Nipple
|
Reverse gear
|
| 6. |
11998
|
[2] |
Gasket
|
Reverse gear
|
| 7. |
957030
|
[1] |
Nipple
|
|
| 8. |
18817
|
[1] |
Gasket
|
|
| 9. |
21294565
|
[1] |
Thermo monitor
|
|
| 10. |
873715
|
[1] |
Sleeve
|
|
| 11. |
21255345
|
[1] |
Bracket
|
|
| 12. |
849352
|
[1] |
Spacer sleeve
|
|
| 13. |
984758
|
[1] |
Flange screw
|
|
| 14. |
946472
|
[1] |
Flange screw
|
|
| 15. |
21294594
|
[1] |
Pressure monitor
|
|
| 16. |
21315856
|
[1] |
Pressure hose
|
|
| 17. |
942006
|
[1] |
Nipple
|
|
| 18. |
963947
|
[2] |
Nipple
|
|
| 19. |
976927
|
[1] |
Gasket
|
|
| 20. |
956981
|
[2] |
Fitting nut
|
|
| 21. |
862251
|
[1] |
Tachometer sensor
|
|
| 22. |
21899858
|
[1] |
Wiring harness
|
|
