纽荷兰零件查询(D180C LT) - CRAWLER DOZER - TIER 4A (12/13-) (35.741.AA[03]) - LIFT CYLINDER 82.6 X 50.5MM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
197 次

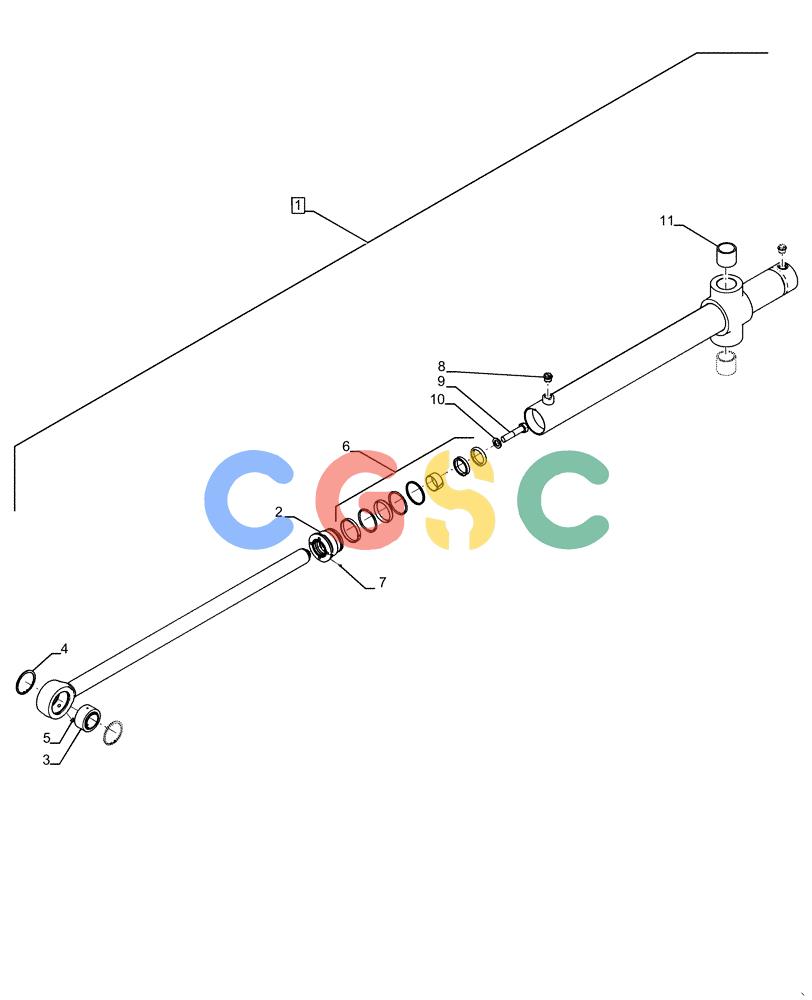

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47469508 | [1] | LIFT CYLINDER | BUR82.6 x Incl 2 - 11 |
| 1. | 47469508R | [1] | REMAN-HYD CYLINDER | BUR |
| 1. | 47469508C | [1] | CORE-HYD CYLINDER | BURReturn Number |
| 2. | 84335383 | [1] | GLAND | BUR |
| 3. | D23601 | [1] | HOUSING | CAS Superseded by part number: 86000739 |
| 4. | 100-21315 | [2] | SNAP RING,3.156", Int, #315 | CAS Superseded by part number: 9670291 |
| 5. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| 6. | 84479822 | [1] | KIT | BHBSeals |
| 7. | G109395 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" | CAS Superseded by part number: 86642312 |
| 8. | 353-780 | [2] | PLUG,Sltd Hd, 7/8"-14, w/O-Ring | CAS Superseded by part number: 86625121 |
| 9. | 47368448 | [1] | BOLT | BHB |
| 10. | G32317 | [1] | WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk | CAS Superseded by part number: D34666 |
| 11. | 84386929 | [2] | BUSHING | BHB |
