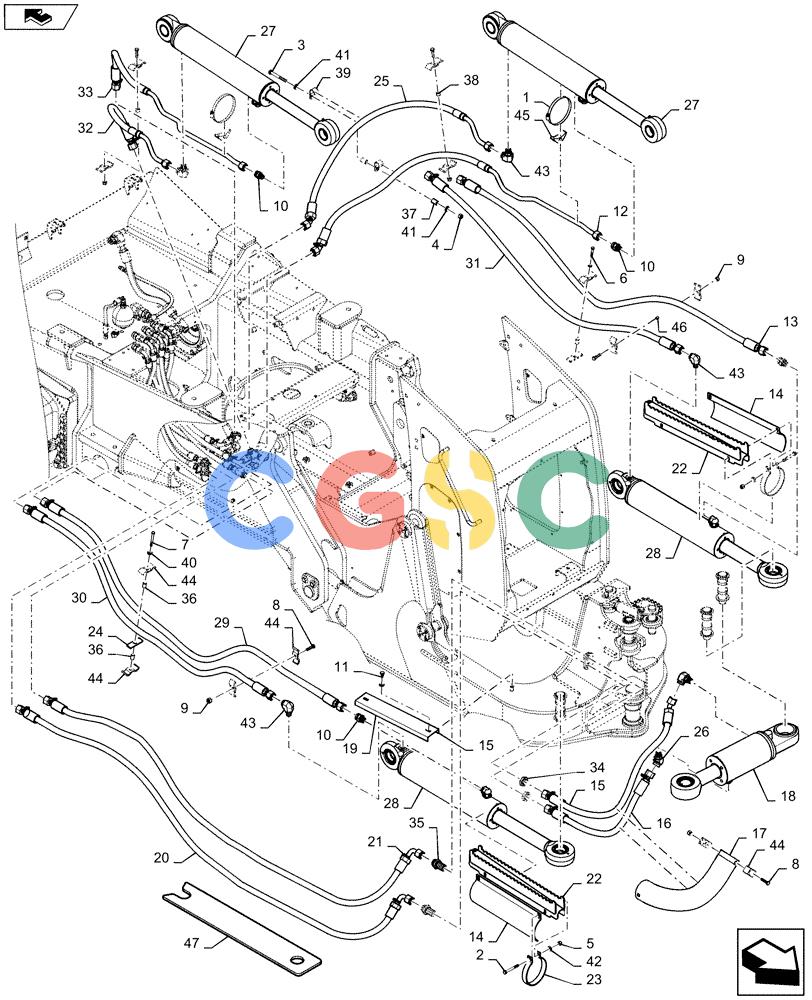

| 1. | 214-1496 | [4] | HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm | CAS |
| 2. | 814-10080 | [4] | BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8 | CAS Superseded by part number: 129796A1 |
| 3. | 814-12100 | [1] | BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8 | IH Superseded by part number: 374887 |
| 4. | 825-1412 | [1] | NUT,M12, Cl 8 | CAS Superseded by part number: 9706685 |
| 5. | 832-10410 | [4] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 6. | 43130 | [1] | BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8 | NH |
| 7. | 43133 | [1] | BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8 | NH |
| 8. | 120112 | [5] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd | NH |
| 9. | 412141 | [5] | NUT,M10 x 1.5, Cl 8 | ZED Superseded by part number: 190003888452 |
| 10. | 9840534 | [4] | HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB | GI |
| 11. | 9861444 | [2] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | BHB Superseded by part number: 11106031 |
| 12. | 47373873 | [1] | TUBE | BURLift Cylinder Rod End LH |
| 13. | 47406401 | [1] | HYDRAULIC HOSE,19.05mm ID x 2475mm L, SAE 100R16 | BURAngle Cylinder Rod End LH |
| 14. | 47444465 | [2] | GUARD | BURSide Angle |
| 15. | 47445362 | [1] | HOSE,19.05mm ID x 763.3mm L, SAE 100R16 | BURTilt Cylinder Rod End |
| 16. | 47445363 | [1] | HOSE,19.05mm ID x 1076.7mm L, SAE 100R16 | BURTilt Cylinder Head End Superseded by part number: 47724096, 47724063 |
| 17. | 47446164 | [1] | SLEEVE,68mm ID x 738mm L | BURProtective |
| 18. | 47446374 | [1] | HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 148.4mm Stroke | BURTilt |
| 18. | 47446374R | [1] | REMAN-HYD CYLINDER | BURTilt |
| 18. | 47446374C | [1] | CORE-HYD CYLINDER | BURReturn Number |
| 19. | 47447722 | [1] | GUARD | BURTilt Lines Superseded by part number: 47549207, 47549209 |
| 20. | 47449942 | [1] | HOSE,19.05mm ID x 2976.2mm L, SAE 100R16 | BURTilt Cylinder Head End |
| 21. | 47449943 | [1] | HOSE,19.05mm ID x 3036.8mm L, SAE 100R16 | BURTitl Cylinder Rod End |
| 22. | 47461428 | [2] | GUARD | BURAngle Cylinder Superseded by part number: 47531943, 47545755 |
| 23. | 47461431 | [4] | CLAMP,135mm | BUR |
| 24. | 47496506 | [2] | PLATE | BURSpacer |
| 25. | 47519692 | [1] | HYDRAULIC HOSE | BURLift Cylinder Tube End LH |
| 26. | 84401339 | [1] | 45 ELBOW | BURADJ -12 ORFS X 7/8-14 ORB |
| 27. | 84402335 | [2] | LIFT CYLINDER,Double Acting, 63.5mm Rod, 428.8mm Stroke | BUR |
| 27. | 84402335R | [2] | REMAN-HYD CYLINDER | BUR |
| 27. | 84402335C | [2] | CORE-HYD CYLINDER | BURReturn Number |
| 28. | 84402336 | [2] | LIFT CYLINDER,Double Acting, 63.5mm Rod, 502.7mm Stroke | BUR |
| 28. | 84402336R | [2] | REMAN-HYD CYLINDER | BUR |
| 28. | 84402336C | [2] | CORE-HYD CYLINDER | BURReturn Number |
| 29. | 84539535 | [1] | HYDRAULIC HOSE,19.05mm ID x 2350mm L, SAE 100R16 | BURAngle Cylinder Rod End RH |
| 30. | 84539537 | [1] | HYDRAULIC HOSE,19.05mm ID x 1900mm L, SAE 100R16 | BURAngle Cylinder RH |
| 31. | 84539540 | [1] | HYDRAULIC HOSE,19.05mm ID x 1730mm L, SAE 100R16 | BURAngle Cylinder LH |
| 32. | 84543174 | [1] | HYD. TUBE | BURLift Cylinder Head End RH |
| 33. | 84543175 | [1] | HYD. TUBE | BURLift Cylinder Rod End RH |
| 34. | 86639062 | [2] | BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead | FAR |
| 35. | 86639064 | [2] | UNION,1-3/16"-12 ORFS, Bulkhead | FAR |
| 36. | 87036413 | [3] | SPACER,5/8" Pipe x 15/16" | CAS |
| 37. | 87302880 | [2] | SPACER,13.5mm ID x 19mm OD x 30.2mm L | CAS3/4 x 1.188 Tube |
| 38. | 87311354 | [2] | SPACER,10.7mm ID x 17.1mm OD x 14.2mm L | BRR3/8 x 0.562 X Pipe |
| 39. | 87547970 | [2] | CLAMP,28.6mm, Coat, 13.5mm Bolt Hole, P Type | BAS |
| 40. | 87655042 | [2] | SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk | BUR |
| 41. | 87655043 | [2] | WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM | BURM12 13.65 x 24.9 x 3.2 |
| 42. | 87655046 | [10] | SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk | BUR |
| 43. | 87656136 | [5] | HYD CONNECTOR | BHB90 ADJ -12 ORFS x 7/8-14 ORB |
| 44. | 434130A1 | [13] | HOSE CLAMP | BUR |
| 45. | D142787 | [4] | SPACER | CASSaddle Tub Support |
| 46. | 436110A1 | [1] | SPACER | BUR |
| 47. | 47549213 | [1] | GUARD | BURLower Tilt Lines |
