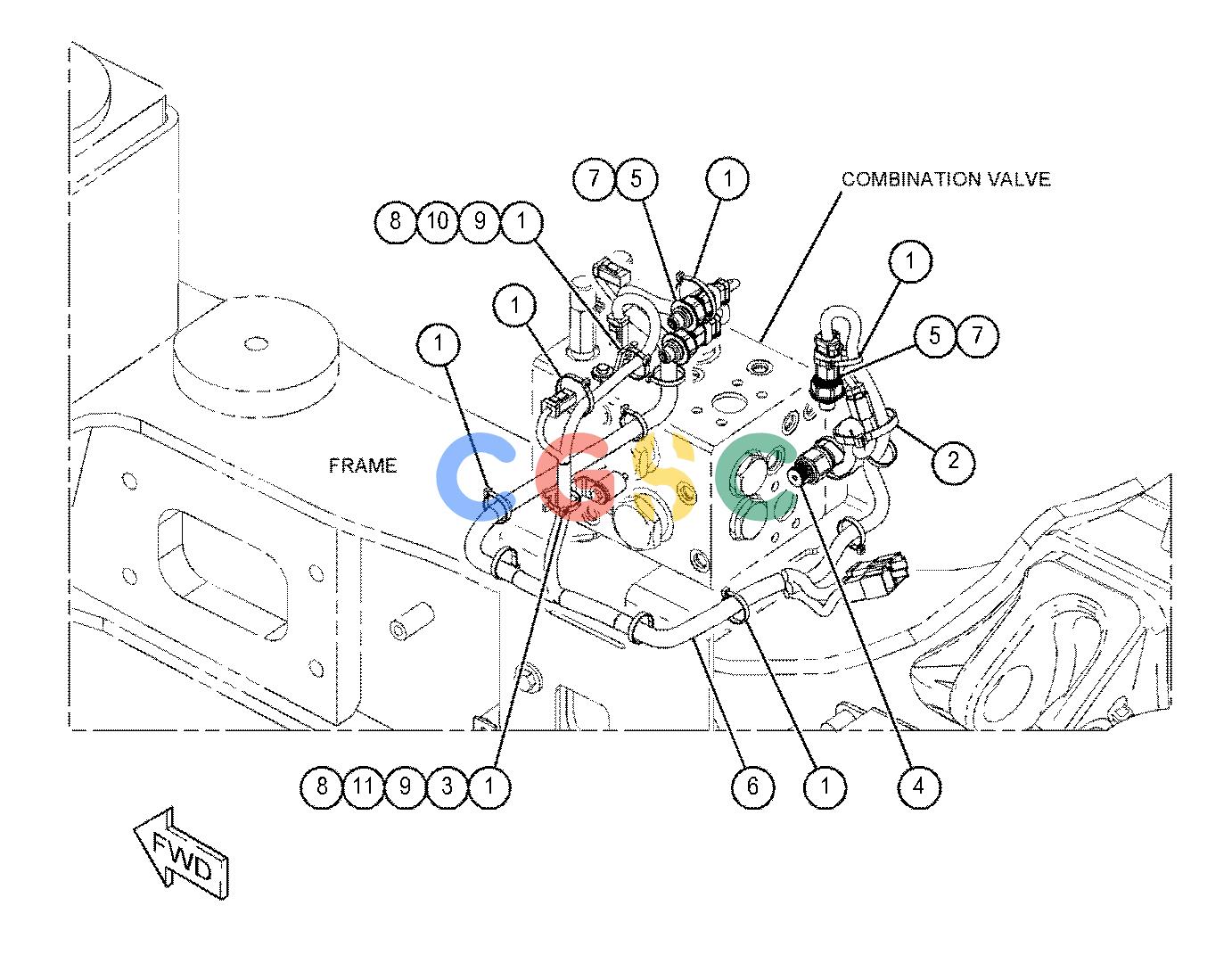

卡特零件查询（725C） 470-4428: WIRING GP-FRONT
广数供应链运营团队, 14 02月, 2025，浏览：
325 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [14] | STRAP-CABLE | |
| 2. | 7K-1181 | [1] | STRAP-CABLE | |
| 3. | 133-6934 | [1] | SPACER(11X20X25-MM THK) | |
| 4. | 459-2597 | [1] | SWITCH AS-PRESSURE(HYDRAULIC OIL) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(15-CM) | |
| 5. | 344-7391 | [3] | SENSOR-PRESSURE(PARKING BRAKE) | |
| 6. | 433-0095Y | [1] | HARNESS AS-CONTROL(MAIN CONTROL) | |
| 7. | 3J-1907 | [3] | SEAL-O-RING | |
| 8. | 9X-2038 | [2] | WASHER(7X19X2-MM THK) | |
| 9. | 4P-8134 | [2] | CLIP(LADDER) | |
| 10. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 11. | 8C-8451M | [1] | BOLT(M6X1X40-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
