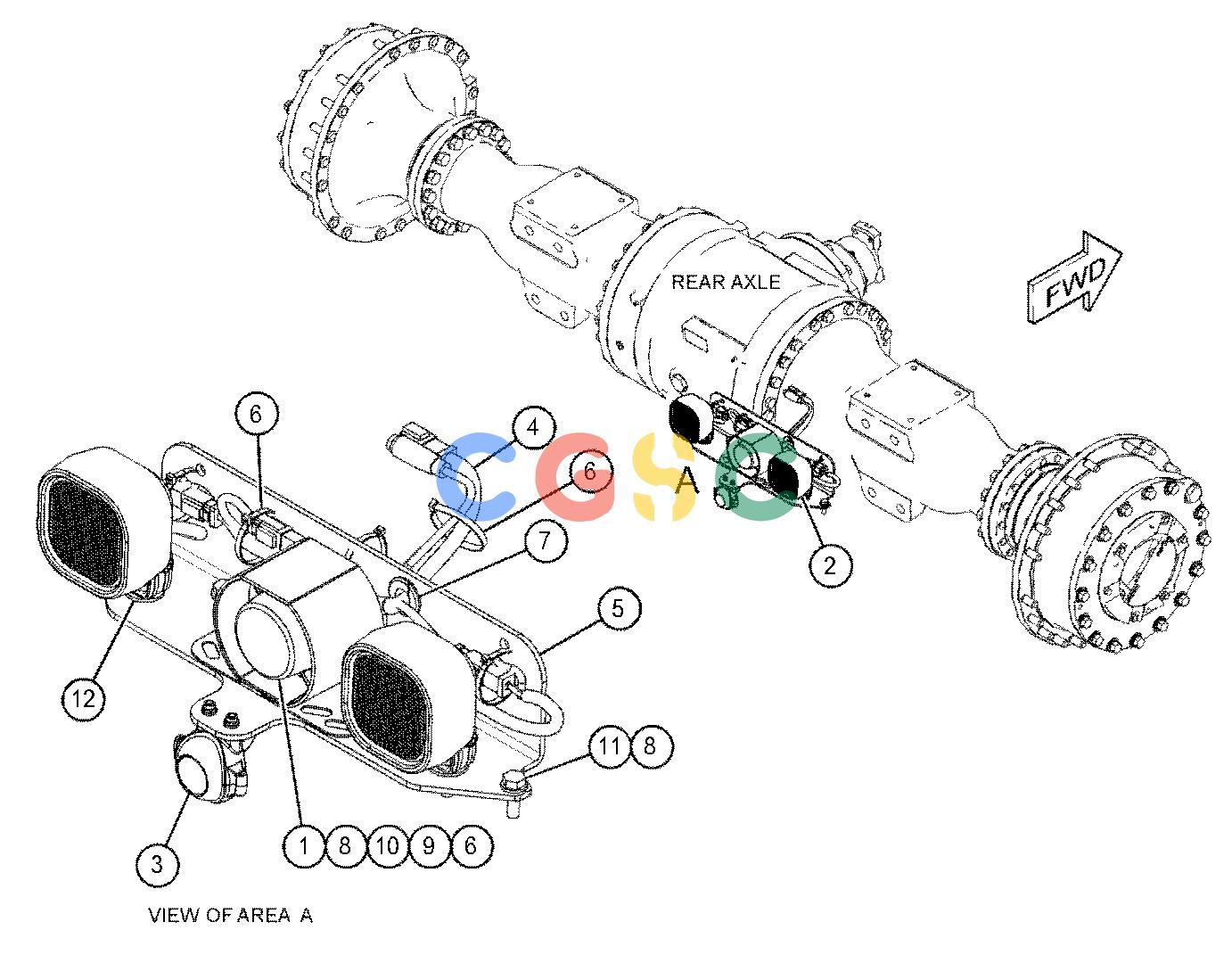

卡特零件查询（725C） 383-6182: WIRING GP-LIGHTING
广数供应链运营团队, 14 02月, 2025，浏览：
151 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 213-9100 | [1] | ALARM AS(BACKUP)(BACKUP) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-5623D | | WIRE-ELECTRICAL(16-GA, BLACK)(0.4-M EACH) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(31-CM) | |
| 2. | 260-0161Y | [2] | LAMP GP-FLOOD(24-VOLT) | |
| 3. | 336-6684Y | [1] | CAMERA GP(12-VOLT, 24-VOLT) | |
| 4. | 392-3498Y | [1] | HARNESS AS-REAR LIGHTING | |
| 5. | 397-2533 | [1] | PLATE AS | |
| | 7T-1099 | [3] | LINK | |
| 6. | 3S-2093 | [6] | STRAP-CABLE | |
| 7. | 4H-2558 | [1] | GROMMET | |
| 8. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 10. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 11. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 12. | 8T-4222 | [2] | WASHER-PLATED(11X32X2.5-MM THK) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
