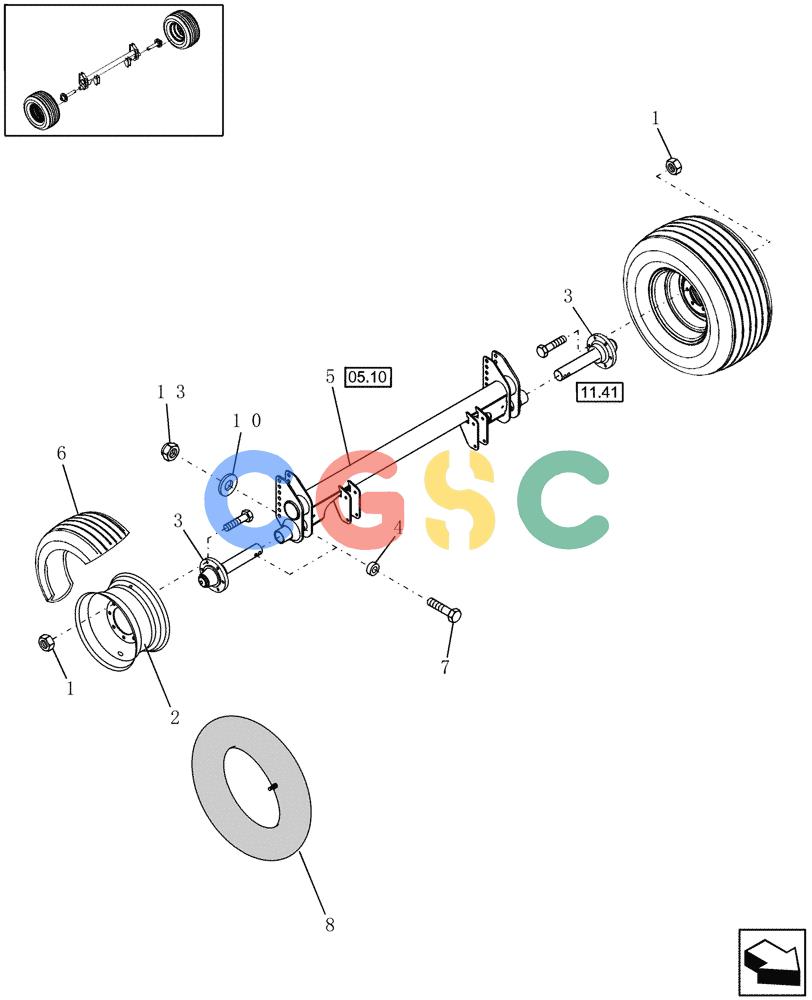

凯斯零件查询(RB564) - CASE IH ROUND BALER (7/07-1/14) (11.18) - WHEELS, 10 PLY 16", NORTH AMERICA Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
931 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86625632
|
[12] |
WHEEL NUT,Hex, M18 x 1.5
|
NH
Wheel, M18 x 1.5 UNF
|
| 2. |
87018701
|
[2] |
WHEEL
|
PA
16.00 x 17, Serial Range: -Y9N043084
|
| 2. |
87715422
|
[2] |
WHEEL
|
PA
16.1 x 14 - 6, Start Serial: Y9N043085
|
| 2. |
84822041
|
[2] |
WHEEL
|
PA
16.00 x 17, Start Serial: Y9N043085
|
| 3. |
86631642
|
[2] |
HUB
|
NH
|
| 4. |
86641937
|
[2] |
SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk
|
PA
|
| 5. |
0C
|
[2] |
ORDER COMPONENTS
|
NH
Axle
|
| 6. |
86570141
|
[2] |
TYRE/TIRE
|
PA
19.0/45 - 17, 10 Ply, All Models, Serial Range: -Y9N043084
|
| 6. |
87715417
|
[2] |
TYRE/TIRE
|
PA
18L - 16.1SL, 10 Ply, RB564 Only
|
| 6. |
87481616
|
[2] |
TYRE/TIRE
|
PLO
19/45 - 17, Start Serial: Y9N043085
|
| 7. |
374889
|
[2] |
BOLT,Hex, M16 x 100mm, Cl 8.8
|
NH
|
| 8. |
PL
|
[2] |
PROCURE LOCALLY
|
BAS
Inner Tube for 480 x 45 - 17, 10 Ply
|
| 9. |
87045051
|
[2] |
VALVE
|
PA
Air
|
| 10. |
122432
|
[2] |
WASHER,17mm ID x 41mm OD x 6mm Thk
|
NH
Hardened, 5/8" Superseded by part number: 84058945
|
| 13. |
832-46416
|
[2] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
