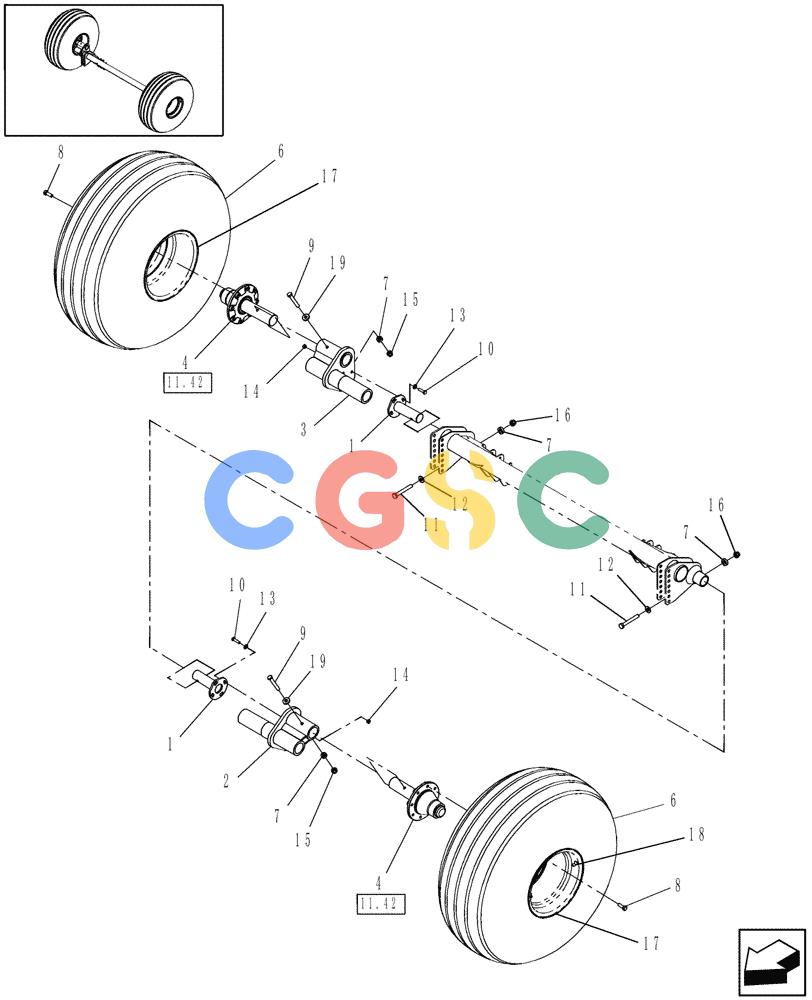

凯斯零件查询(RB564) - CASE IH ROUND BALER (7/07-1/14) (11.19) - WHEELS & TIRES, 21.5L X 16.1 - 10 PLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87471265
|
[2] |
SPINDLE
|
NH
|
| 2. |
87471253
|
[1] |
MOUNT
|
NH
LH
|
| 3. |
87482371
|
[1] |
MOUNT
|
NH
RH
|
| 4. |
0C
|
[2] |
ORDER COMPONENTS
|
NH
Wheel Hub
|
| 5. |
84176044
|
[2] |
DECAL
|
NH
Torque
|
| 6. |
PL
|
[2] |
PROCURE LOCALLY
|
BAS
Tire , 21.5L x 16.1 - 10 Ply Flotation
|
| 7. |
86641937
|
[4] |
SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk
|
PA
|
| 8. |
704588
|
[16] |
WHEEL BOLT,5/8" - 18 x 1-5/8"
|
GI
|
| 9. |
87997
|
[2] |
BOLT,Hex, 1/2" - 13 x 5", Gr 5
|
GI
|
| 10. |
412087
|
[8] |
BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd
|
BHB
Superseded by part number: 86639031
|
| 11. |
374889
|
[2] |
BOLT,Hex, M16 x 100mm, Cl 8.8
|
NH
|
| 12. |
122432
|
[4] |
WASHER,17mm ID x 41mm OD x 6mm Thk
|
NH
Superseded by part number: 84058945
|
| 13. |
140046
|
[8] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 14. |
337475
|
[8] |
NUT,M12, Cl 10
|
BHB
|
| 15. |
9636698
|
[2] |
NUT,1/2"-13, GB
|
NH
Superseded by part number: 88871
|
| 16. |
86000441
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 17. |
84168268
|
[2] |
WHEEL
|
NH
16.1 x W18C
|
| 18. |
196033
|
[2] |
VALVE STEM
|
NH
Air
|
| 19. |
87025710
|
[2] |
WASHER
|
PA
|
