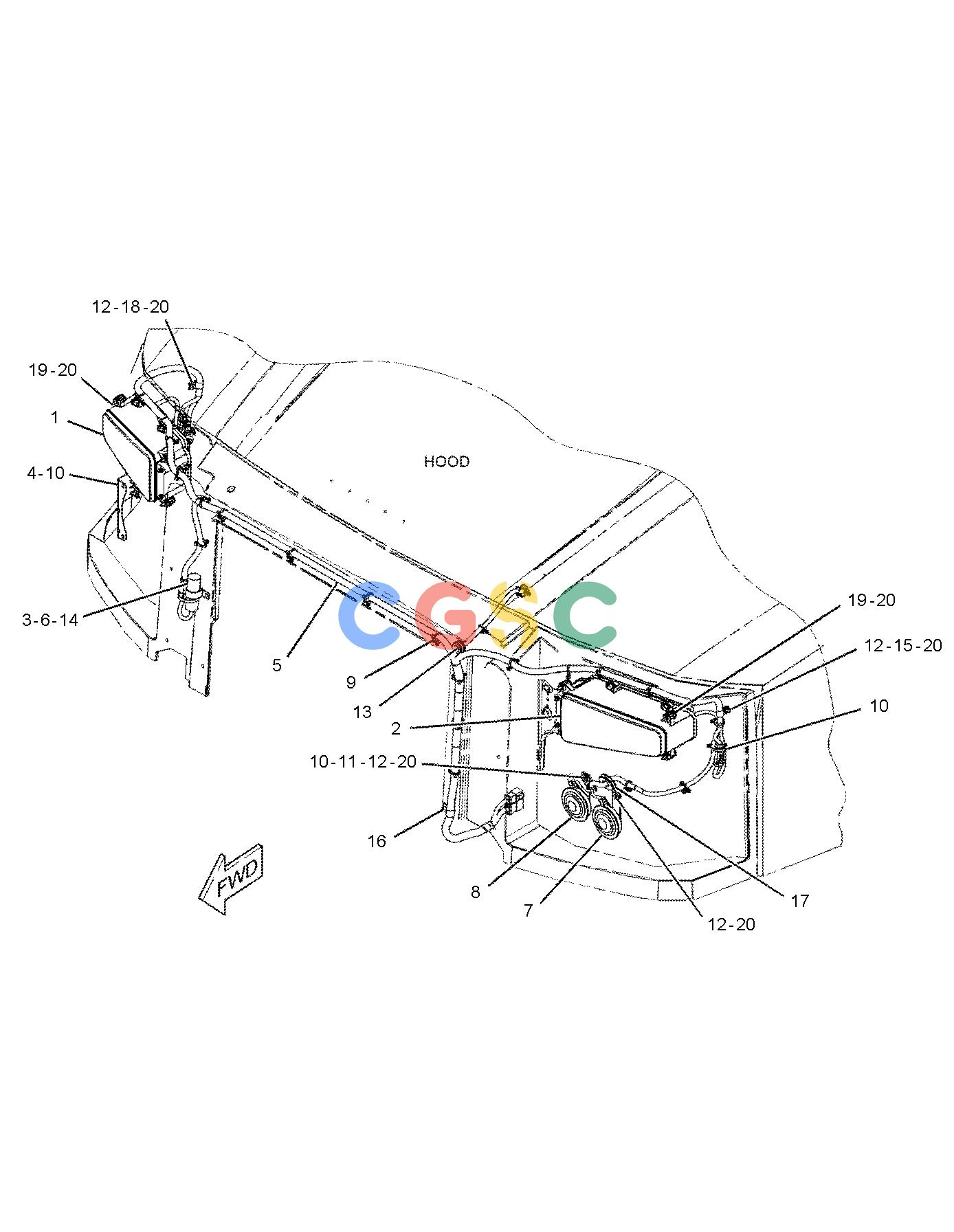

卡特零件查询（725C） 392-6252: WIRING GP-LIGHTING
广数供应链运营团队, 14 02月, 2025，浏览：
191 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 335-7370Y | [1] | LAMP GP-HEAD & SIGNAL(24-VOLT, RH) | |
| 2. | 335-7371Y | [1] | LAMP GP-HEAD & SIGNAL(24-VOLT, LH) | |
| 3. | 396-6500Y | [1] | CONTROL GP-ELECTRONIC(24-VOLT) | |
| 4. | 416-6335 | [1] | PLATE | |
| 5. | 424-5998Y | [1] | HARNESS AS-LIGHTING | |
| 6. | 095-0914 | [1] | CLIP | |
| 7. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 8. | 174-7875 | [1] | HORN AS(24-VOLT, HIGH TONE) | |
| 9. | 206-1345 | [21] | STRAP-CABLE | |
| 10. | 3S-2093 | [11] | STRAP-CABLE | |
| 11. | 4P-7581 | [1] | CLIP(LADDER) | |
| 12. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 13. | 7B-1251 | [1] | GROMMET | |
| 14. | 7K-1181 | [2] | STRAP-CABLE | |
| 15. | 8M-2770 | [1] | CLIP(LOOP) | |
| 16. | 8M-2773 | [1] | CLIP(LOOP) | |
| 17. | 8M-2784 | [1] | GROMMET | |
| 18. | 9M-8406 | [1] | CLIP(LOOP) | |
| 19. | 9X-2480M | [8] | BOLT(M6X1X45-MM) | |
| 20. | 9X-6165 | [12] | WASHER(6.5X22X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
