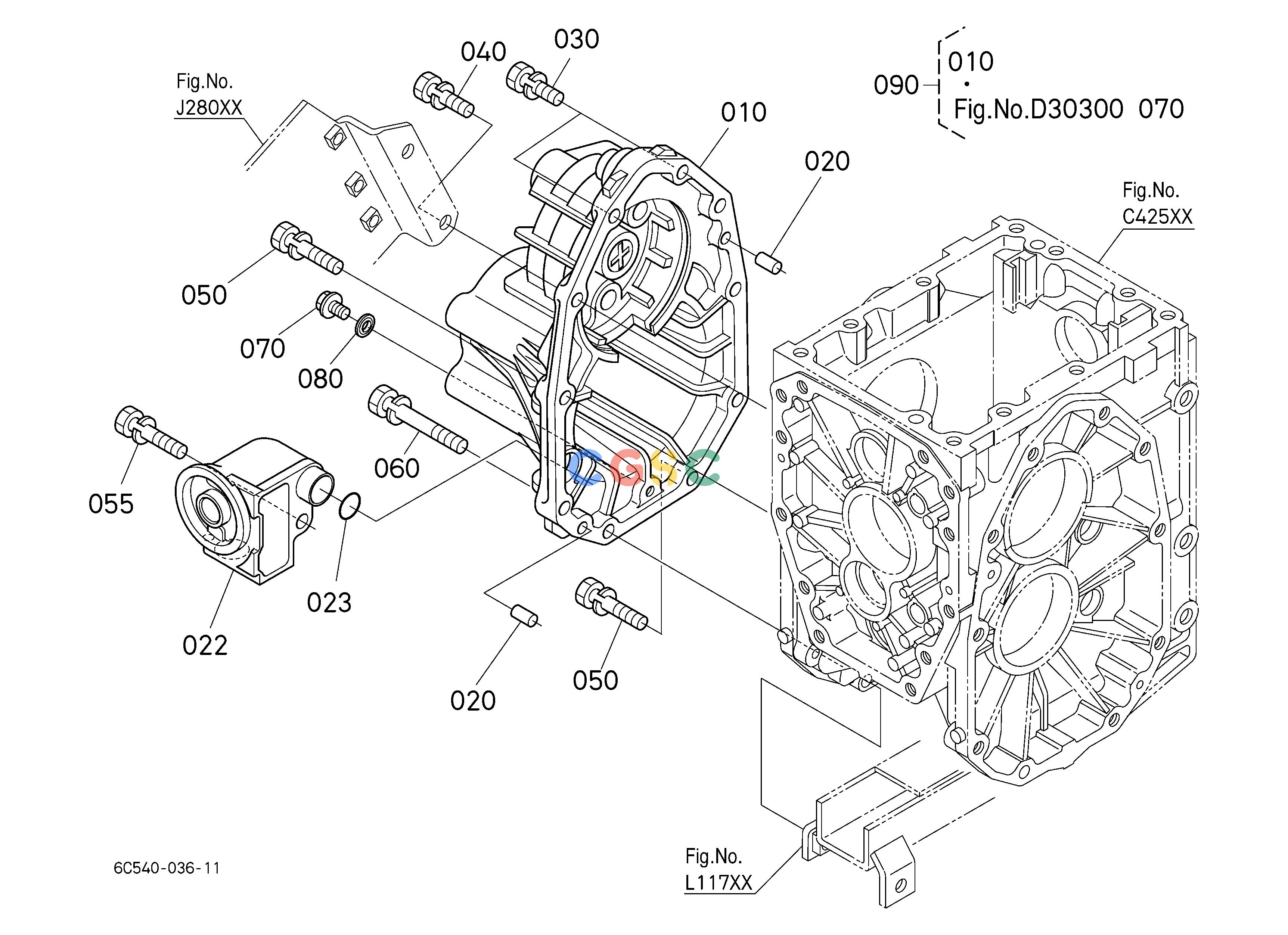

久保田零件查询C42900 REAR AXLE CASE RH TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
455 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C26012622
|
[1] |
CASE(AXLE)
|
5.4560(lbs); 2.480
|
| 020. |
0501200614
|
[2] |
PIN,STRAIGHT
|
0.0088(lbs); 0.004
|
| 022. |
6C20012630
|
[1] |
BRACKET,FILTER
|
0.6094(lbs); 0.277
|
| 023. |
0481110250
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0112351035
|
[3] |
BOLT,SEMS
|
0.0550(lbs); 0.025
|
| 040. |
0112351040
|
[1] |
BOLT,SEMS
|
0.0660(lbs); 0.030
|
| 050. |
0112351050
|
[4] |
BOLT,SEMS
|
0.0770(lbs); 0.035
|
| 055. |
0112351055
|
[1] |
BOLT,SEMS
|
0.0836(lbs); 0.038
|
| 060. |
0113351075
|
[1] |
BOLT,SEMS
|
0.0660(lbs); 0.030
|
| 070. |
0175450812
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 080. |
0471700810
|
[1] |
WASHERSEAL
|
0.0022(lbs); 0.001
|
| 090. |
6C26090650
|
[1] |
CASE,ASSY(R)
|
6.7980(lbs); 3.090
|
