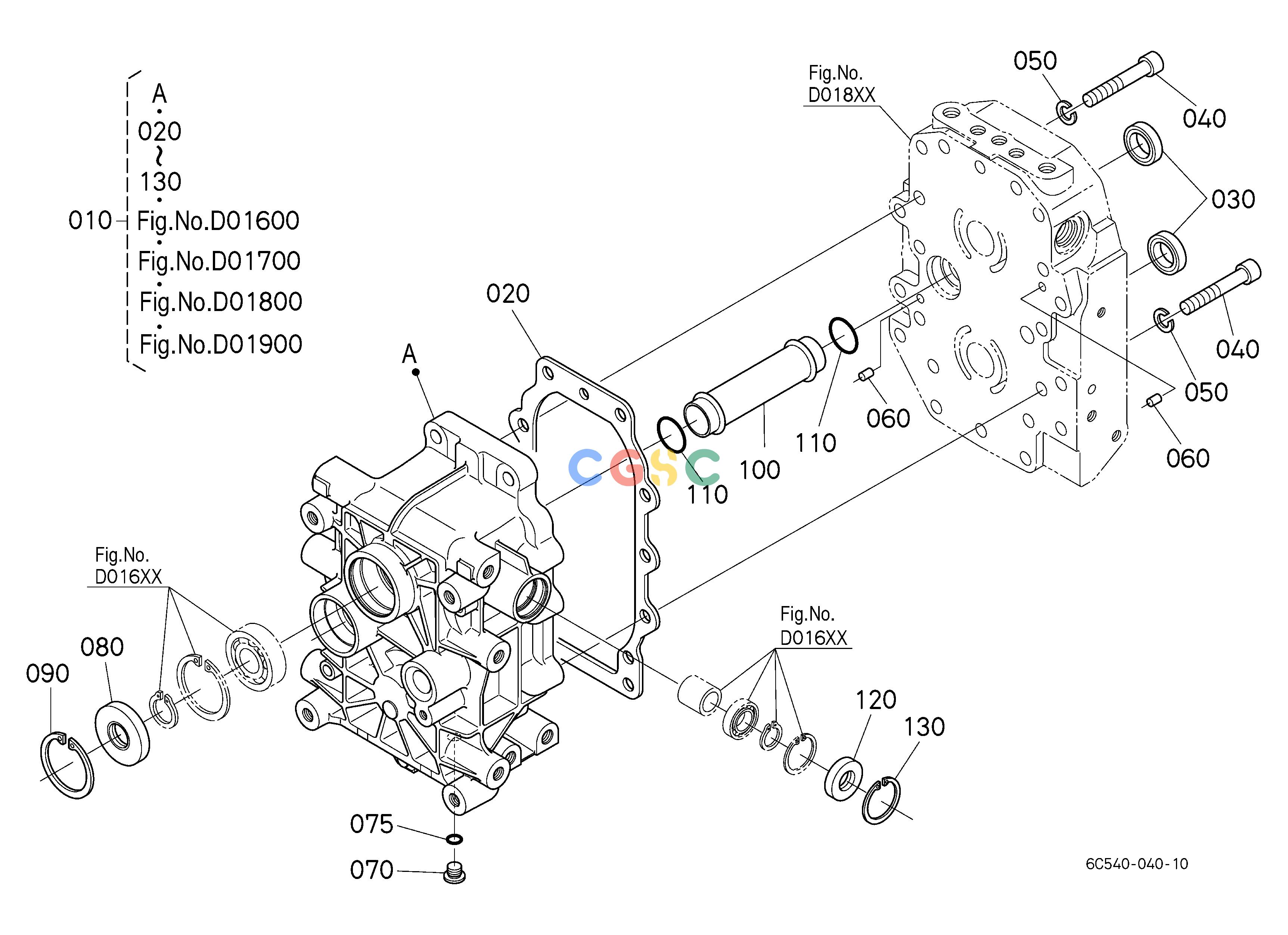

久保田零件查询D01500 HST1 (CASE) [COMPONENT PARTS] TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
354 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54011607
|
[1] |
HST,ASSY(T-21,D32)
|
42.5040(lbs); 19.320
|
| 020. |
6E11011620
|
[1] |
GASKET
|
0.0330(lbs); 0.015
|
| 030. |
3272135380
|
[2] |
SEAL,OIL
|
0.0044(lbs); 0.002
|
| 040. |
0131111060
|
[9] |
BOLT,SOCKET HEAD
|
0.0990(lbs); 0.045
|
| 050. |
6641539560
|
[9] |
WASHER,SPRING
|
0.0066(lbs); 0.003
|
| 060. |
K756111180
|
[2] |
PIN,STRAIGHT 8X14
|
0.0044(lbs); 0.002
|
| 070. |
5H55019830
|
[1] |
PLUG
|
0.0132(lbs); 0.006
|
| 075. |
0481700080
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
6C30011640
|
[1] |
SEAL,OIL
|
0.0352(lbs); 0.016
|
| 090. |
0461100470
|
[1] |
CIR-CLIP,INTERNAL
|
0.0132(lbs); 0.006
|
| 100. |
6C30011630
|
[1] |
PIPE
|
0.2112(lbs); 0.096
|
| 110. |
0481700250
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 120. |
3138176390
|
[1] |
SEAL,OIL
|
0.0220(lbs); 0.010
|
| 130. |
0461100300
|
[1] |
CIR-CLIP,INTERNAL
|
0.0088(lbs); 0.004
|
