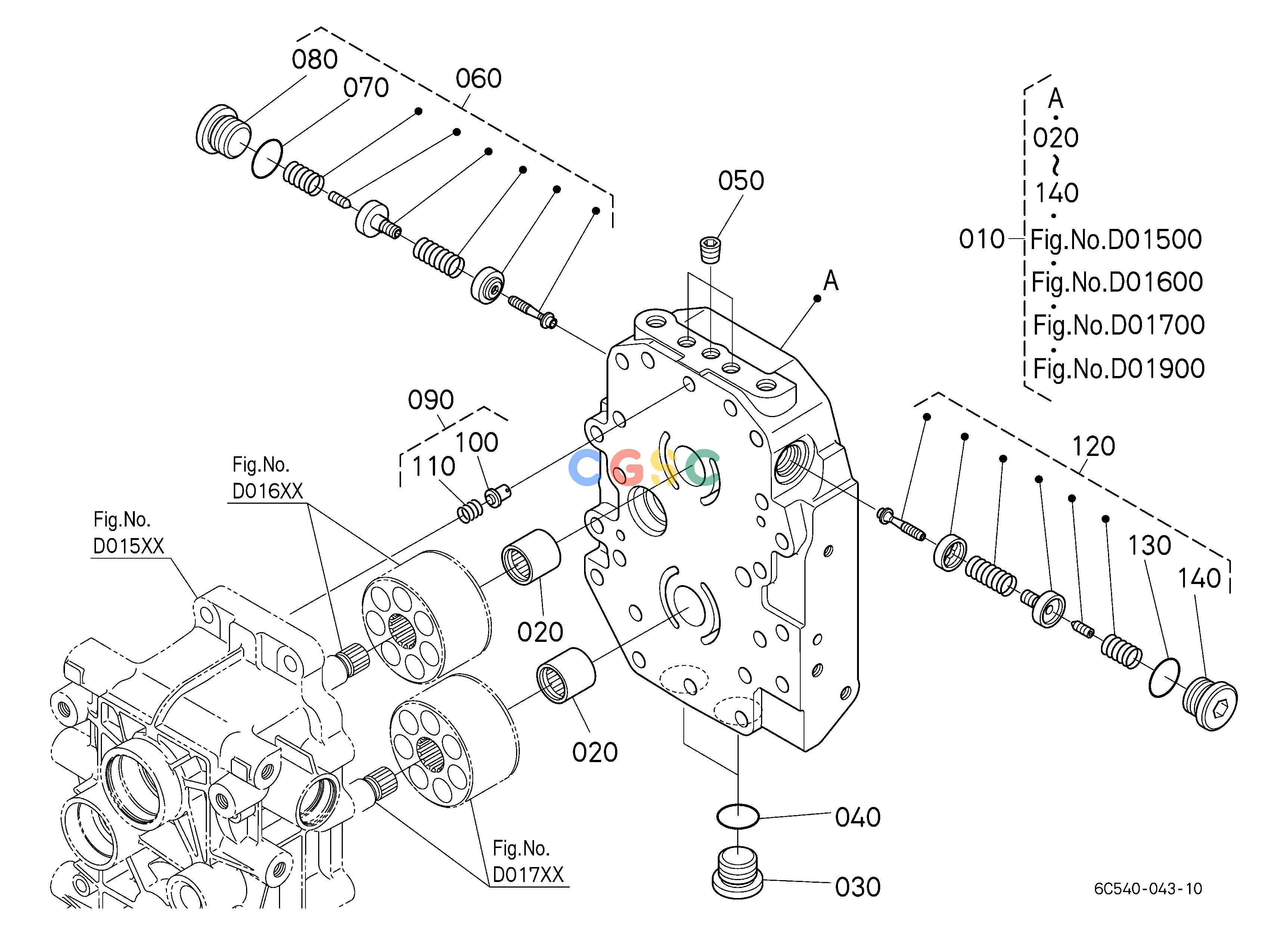

久保田零件查询D01800 HST4 (PORT BLOCK COVER) [COMPONENT PARTS] TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
360 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54011607
|
[1] |
HST,ASSY(T-21,D32)
|
42.5040(lbs); 19.320
|
| 020. |
6A61035320
|
[2] |
BEARING,NEEDLE
|
0.0550(lbs); 0.025
|
| 030. |
5H60011820
|
[2] |
PLUG(GPF1/2)
|
0.0880(lbs); 0.040
|
| 040. |
0481700180
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
K700139620
|
[3] |
PLUG
|
0.0132(lbs); 0.006
|
| 060. |
6C54012000
|
[1] |
VALVE,ASSY(RELIEF,F)
|
0.1848(lbs); 0.084
|
| 070. |
0481700180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
5H60011820
|
[1] |
PLUG(GPF1/2)
|
0.0880(lbs); 0.040
|
| 090. |
3759039900
|
[1] |
ASSY VALVE,RELIEF
|
0.0154(lbs); 0.007
|
| 100. |
6636339710
|
[1] |
POPPET,L
|
0.0132(lbs); 0.006
|
| 110. |
6636339720
|
[1] |
SPRING(L)
|
0.0066(lbs); 0.003
|
| 120. |
6E11012100
|
[1] |
ASSY VALVE,RELIEF R
|
0.0924(lbs); 0.042
|
| 130. |
0481700180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
5H60011820
|
[1] |
PLUG(GPF1/2)
|
0.0880(lbs); 0.040
|
