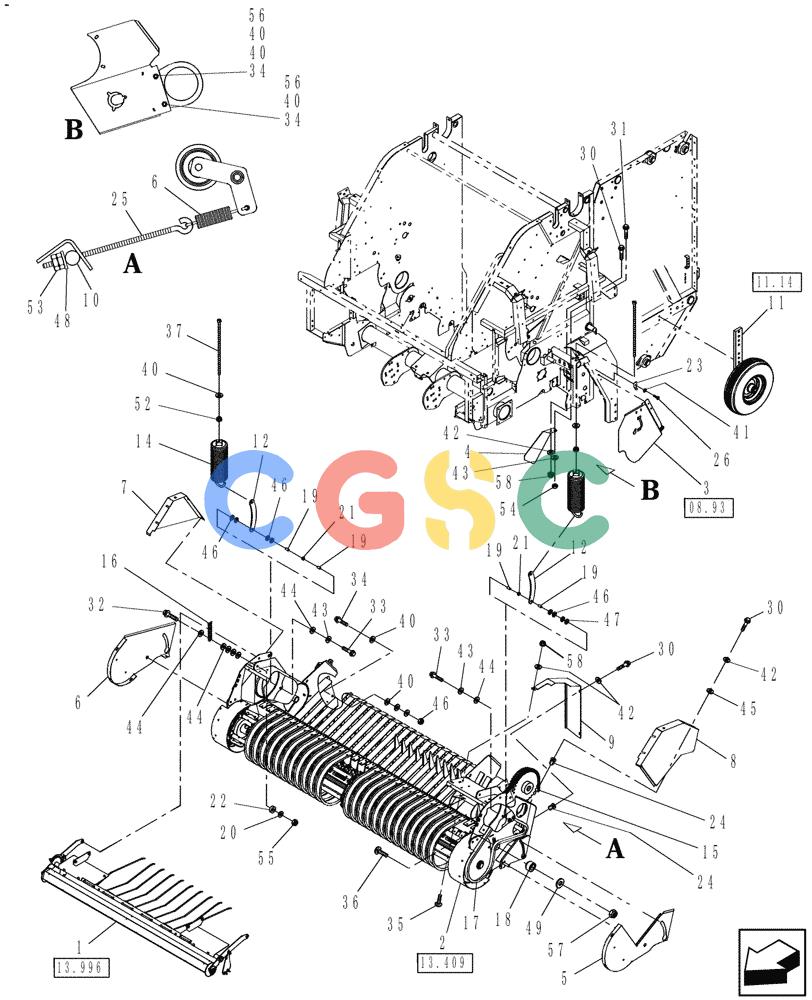

| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Windguard
|
| 4. |
87017232
|
[1] |
SHIELD
|
PA
|
| 5. |
86626383
|
[1] |
SHIELD
|
NH
LH, Lower
|
| 6. |
86625649
|
[1] |
SHIELD
|
PA
RH, Lower
|
| 7. |
87055752
|
[1] |
SHIELD
|
PA
RH Upper
|
| 8. |
86626278
|
[1] |
SHIELD
|
PA
LH Upper
|
| 9. |
87045487
|
[1] |
SHIELD
|
PA
|
| 10. |
87050048
|
[1] |
ROCKER
|
PA
Superseded by part number: 36989
|
| 12. |
87040006
|
[2] |
LINK ASSY.
|
PA
|
| 13. |
86566303
|
[2] |
SPRING
|
NH
|
| 14. |
87656382
|
[2] |
SPRING
|
NH
|
| 15. |
854233
|
[1] |
KIT,60-HE, 62 Links x 19.05mm = 1181.1mm
|
NH
Roller, RC 60, 62 Pitches
|
| 16. |
86631510
|
[1] |
CHAIN,850.9mm L
|
NH
RC50, 100 Pitches, Includes: Ref. 29
|
| 17. |
87028682
|
[1] |
CHAIN (AG)
|
PA
RC50, 100 Pitches, Includes: 25194 Connector Link
|
| 18. |
86613200
|
[1] |
IDLER,89mm OD x 47.7mm W
|
NH
|
| 19. |
705996
|
[4] |
BUSHING
|
NH
7/8" L
|
| 20. |
213404
|
[2] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
3/16" x 13/32" ID x 1-1/2" OD
|
| 21. |
646056
|
[2] |
SPACER,13/32” ID x .750” OD x .338” Tk.
|
NH
|
| 22. |
87020910
|
[2] |
SPACER,10.4mm ID x 19mm OD x 8.9mm Thk
|
PA
|
| 23. |
47325
|
[2] |
CLIP
|
NH
Snap
|
| 24. |
86610198
|
[12] |
INSERT,M6 x 1
|
NH
Threaded, M6
|
| 25. |
86628567
|
[1] |
EYEBOLT
|
NH
G2, 3/8"-16 x 8-3/4"
|
| 26. |
86511920
|
[1] |
SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"
|
BEL
|
| 29. |
25194
|
[1] |
CONNECTING LINK
|
GI
Superseded by part number: 86537460
|
| 30. |
9804256
|
[19] |
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
|
NH
|
| 31. |
86050286
|
[1] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 32. |
9804265
|
[2] |
FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8
|
NH
|
| 33. |
43144
|
[2] |
BOLT,Hex, M10 x 70mm, Cl 8.8
|
NH
Superseded by part number: 87015537
|
| 34. |
86629541
|
[4] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 35. |
9706703
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 36. |
412185
|
[1] |
CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 50mm, Cl 8.8, Full Thd
|
DUB
|
| 37. |
86632865
|
[2] |
BOLT,444.50mm
|
NH
1/2"-13 x 17-1/2" L
|
| 40. |
65319
|
[18] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 41. |
280254
|
[1] |
LOCK WASHER,5.18mm ID x 9.68mm OD x 0.64mm Thk
|
GI
|
| 42. |
322357
|
[20] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 43. |
140045
|
[5] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 44. |
80702
|
[2] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 45. |
80701
|
[8] |
WASHER,0.31" ID x 0.73" OD x 0.07" Thk
|
NH
|
| 46. |
80700
|
[6/AR] |
WASHER,0.56" ID x 1.38" OD x 0.11" Thk
|
NH
|
| 47. |
87364
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
|
NH
|
| 48. |
87016
|
[1] |
WASHER,0.41" ID x 0.81" OD x 0.07" Thk
|
NH
|
| 49. |
87365
|
[1] |
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
|
NH
|
| 52. |
280431
|
[2] |
NUT,1/2"-13, G5
|
NH
|
| 53. |
9628503
|
[2] |
NUT,3/8"-16, G5
|
NH
|
| 54. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 55. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 56. |
100038
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 57. |
86000441
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
Prevailing Torque
|
| 58. |
9804276
|
[2] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 62. |
165109
|
[2] |
DECAL
|
NH
Lube Fitting
|
