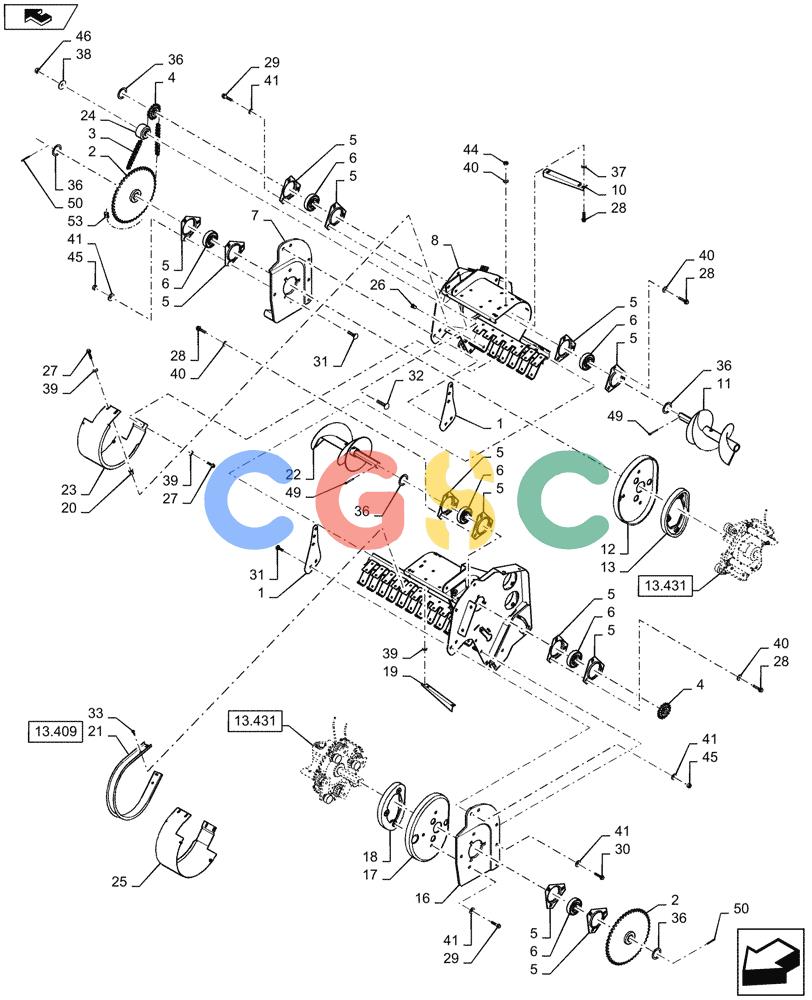

| 1. |
47361794
|
[2] |
MOUNT
|
NH
, Start Serial: YCN174406
|
| 2. |
86624713
|
[2] |
SPROCKET
|
NH
48T, Go to Fig. 13.409 for 3rd sprocket Superseded by part number: 87641160
|
| 3. |
87355271
|
[1] |
CHAIN
|
NH
Roller, #50, 77 Pitches Superseded by part number: 86595276, 1791DX
|
| 4. |
87037892
|
[2] |
SPROCKET
|
PA
13T, RC 50, Go to Fig. 13.409 for 3rd sprocket Superseded by part number: 87641197
|
| 5. |
86620026
|
[12] |
FLANGED BEARING
|
NH
|
| 6. |
86594423
|
[6] |
BEARING,28.6mm Hex x 72mm OD x 25mm W
|
NH
Superseded by part number: 84330069
|
| 7. |
87054955
|
[1] |
SUPPORT
|
PA
RH Superseded by part number: 87641813
|
| 8. |
87515478
|
[1] |
PICK-UP
|
NH
Frame
|
| 10. |
86633239
|
[1] |
ANGLE
|
NH
RH
|
| 11. |
87045426
|
[1] |
AUGER
|
PA
RH
|
| 12. |
87036227
|
[1] |
CAM
|
PA
RH, Outer Superseded by part number: 87059146
|
| 13. |
87036226
|
[1] |
CAM
|
PA
RH, Inner Superseded by part number: 87059147
|
| 16. |
87054954
|
[1] |
SUPPORT
|
PA
LH Superseded by part number: 87641822
|
| 17. |
87032200
|
[1] |
CAM
|
PA
LH, Outer Superseded by part number: 87641735
|
| 18. |
87032003
|
[1] |
CAM
|
PA
LH, Inner
|
| 19. |
86633238
|
[1] |
ANGLE
|
NH
LH
|
| 20. |
86610198
|
[4] |
INSERT,M6 x 1
|
NH
Threaded, M6
|
| 21. |
87055363
|
[21] |
GUARD ASSY.
|
PA
|
| 21. |
86643381
|
[10] |
GUARD
|
NH
|
| 22. |
87045424
|
[1] |
AUGER
|
PA
LH
|
| 23. |
86626559
|
[1] |
GUARD
|
PA
End, RH
|
| 24. |
86613200
|
[1] |
IDLER,89mm OD x 47.7mm W
|
NH
Eccentric, Nylon
|
| 25. |
86625888
|
[1] |
GUARD
|
PA
End, LH
|
| 26. |
86610199
|
[4] |
INSERT
|
PA
Threaded, M6 Superseded by part number: 84272827
|
| 27. |
9804256
|
[8] |
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
|
NH
|
| 28. |
43465
|
[6] |
CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd
|
NH
Superseded by part number: 811-8030
|
| 29. |
9804262
|
[18] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 30. |
43140
|
[4] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 31. |
86512446
|
[12] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 32. |
412185
|
[1] |
CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 50mm, Cl 8.8, Full Thd
|
DUB
|
| 33. |
87039762
|
[124] |
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"
|
PA
Type F Superseded by part number: 570821
|
| 34. |
86512447
|
[2] |
CARRIAGE BOLT,Short Square Neck, M10 x 60mm, Class 8.8
|
GI
|
| 36. |
87022926
|
[1] |
WASHER,35.05mm ID x 48.01mm OD x 2.14mm Thk
|
PA
|
| 37. |
140016
|
[1] |
WASHER,M8 x 16mm OD x 1.6mm Thk
|
NH
Superseded by part number: 86624184
|
| 38. |
87365
|
[1] |
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
|
NH
|
| 39. |
322357
|
[8] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 40. |
322358
|
[6] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 41. |
140045
|
[34] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 44. |
9804277
|
[6] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 45. |
9804278
|
[12] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 46. |
86000441
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 49. |
164086
|
[2] |
COTTER PIN
|
NH
Superseded by part number: 86013355
|
| 50. |
88529
|
[2] |
LOCK PIN,5.56mm OD x 44.45mm L, Slotted
|
NH
|
| 52. |
42472
|
[1] |
CONNECTING LINK
|
NH
Superseded by part number: 86537460
|
| 53. |
25816
|
[1] |
OFFSET LINK
|
GI
Roller, RC 50, Cotter Style Superseded by part number: 86595276
|
