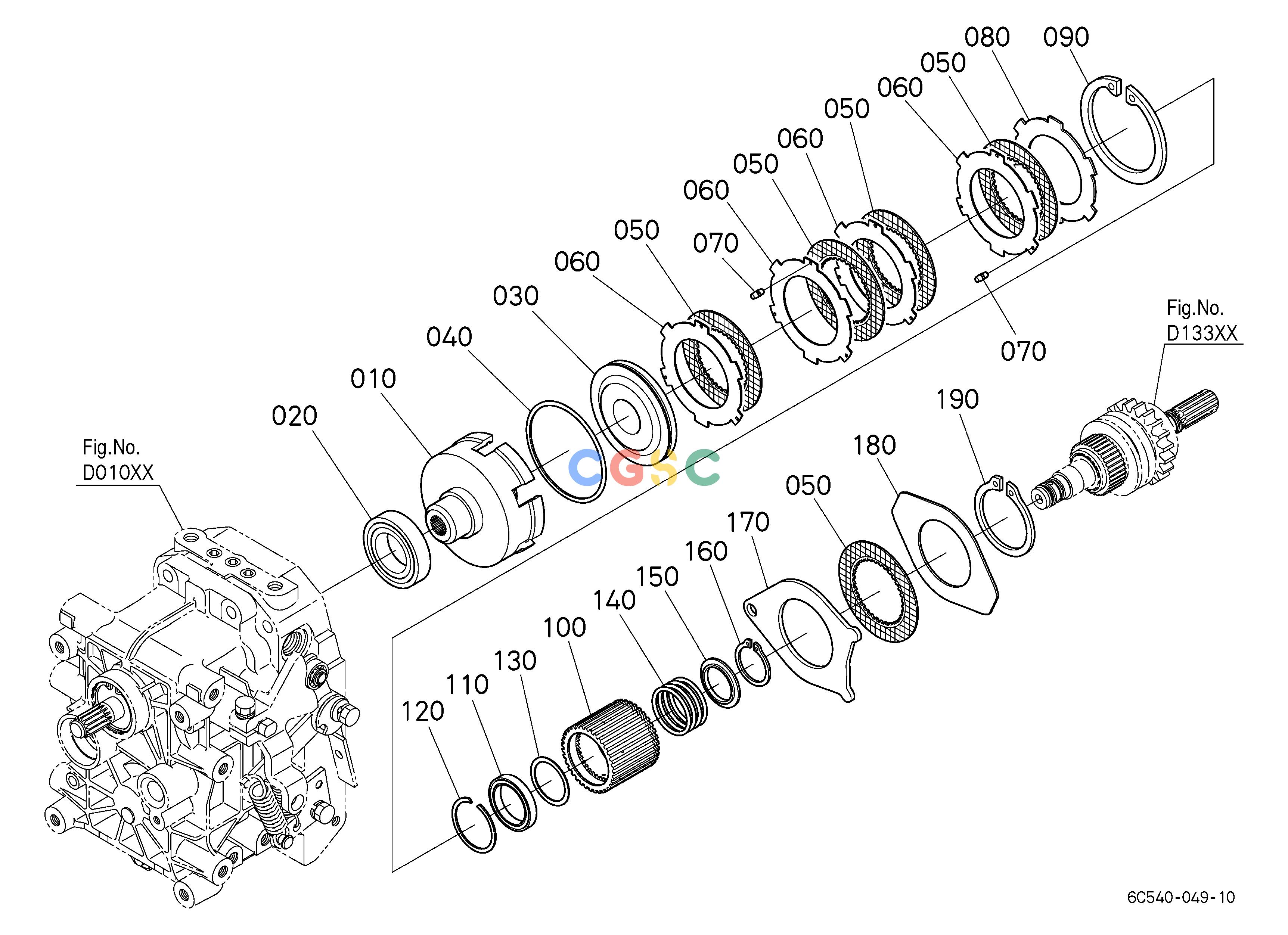

久保田零件查询D13600 PTO CLUTCH TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
957 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20014224
|
[1] |
CASE,PTO CLUTCH
|
1.8260(lbs); 0.830
|
| 020. |
0810106007
|
[1] |
BEARING,BALL
|
0.3520(lbs); 0.160
|
| 030. |
6C20014232
|
[1] |
PISTON,CLUTCH
|
0.5720(lbs); 0.260
|
| 040. |
3741075370
|
[1] |
D RING
|
0.0044(lbs); 0.002
|
| 050. |
6A70013750
|
[5] |
DISK,CLUTCH
|
0.0770(lbs); 0.035
|
| 060. |
6A70013762
|
[4] |
PLATE(CLUTCH,1.2)
|
0.0814(lbs); 0.037
|
| 070. |
TA04069090
|
[6] |
RUBBER
|
0.0022(lbs); 0.001
|
| 080. |
6A70013770
|
[1] |
PLATE,CLUTCH
|
0.1430(lbs); 0.065
|
| 090. |
0461100920
|
[1] |
CIR CLIP,INTERNAL
|
0.0880(lbs); 0.040
|
| 100. |
6C20014252
|
[1] |
BOSS,SPLINE
|
0.7700(lbs); 0.350
|
| 110. |
0810106807
|
[1] |
BEARING,BALL
|
0.0660(lbs); 0.030
|
| 120. |
3628041360
|
[1] |
CIR-CLIP
|
0.0066(lbs); 0.003
|
| 130. |
6C20014350
|
[1] |
COLLAR,BEARING
|
0.0044(lbs); 0.002
|
| 140. |
6C20014340
|
[1] |
SPRING,1 CLUTCH
|
0.0990(lbs); 0.045
|
| 150. |
6C20014240
|
[1] |
COLLAR,SPRING
|
0.0330(lbs); 0.015
|
| 160. |
0461200300
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0066(lbs); 0.003
|
| 170. |
6C20014280
|
[1] |
PLATE,BRAKE
|
0.3630(lbs); 0.165
|
| 180. |
6C20014380
|
[1] |
PLATE,BRAKE
|
0.1716(lbs); 0.078
|
| 190. |
0461200600
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0264(lbs); 0.012
|
