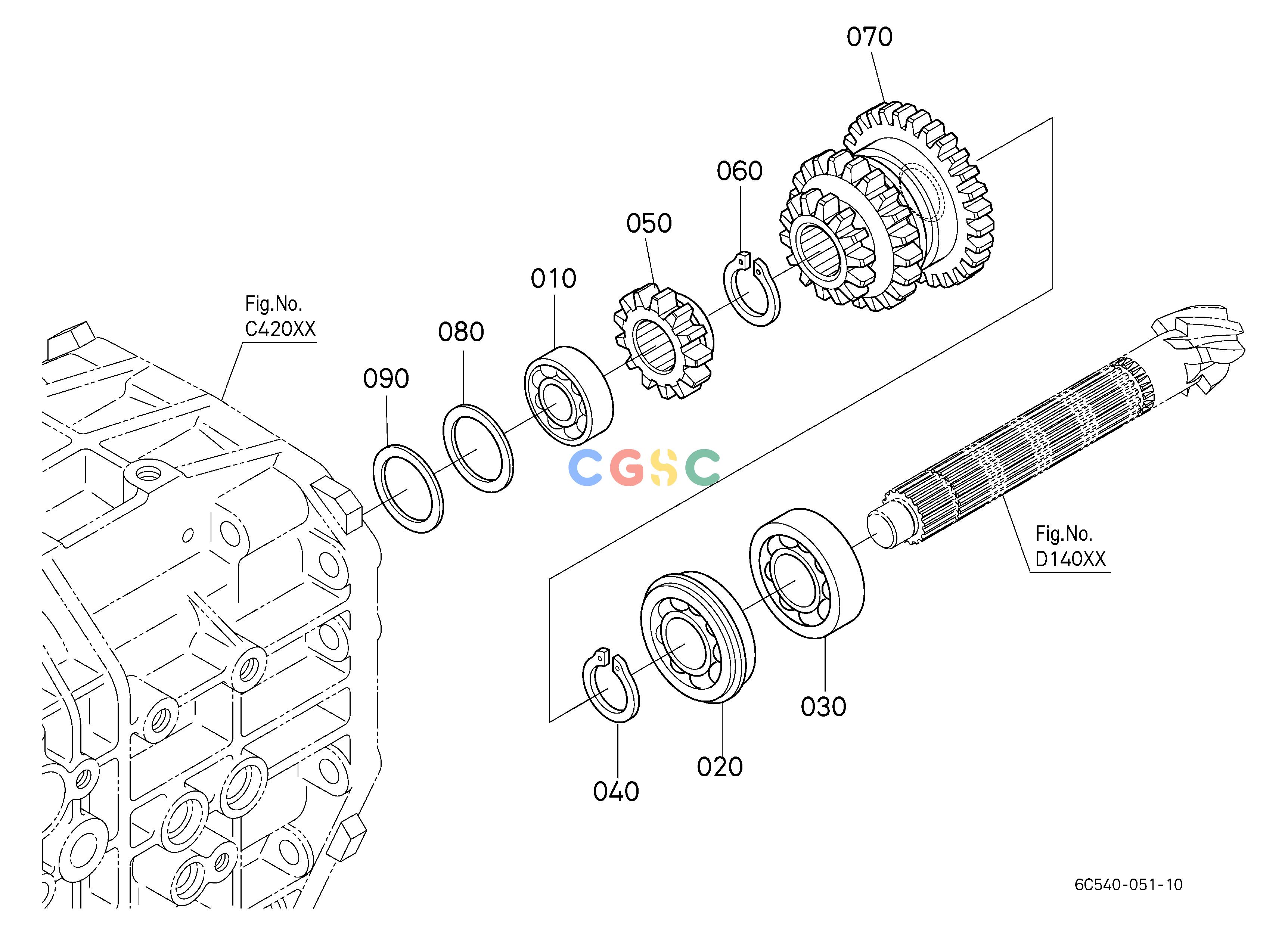

久保田零件查询D13900 BEVEL GEAR SHAFT/RANGE GEAR TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
610 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0822107303
|
[1] |
BEARING,BALL
|
0.2552(lbs); 0.116
|
| 020. |
K401014430
|
[1] |
BEARING
|
0.5280(lbs); 0.240
|
| 030. |
6A70016640
|
[1] |
BEARING,BALL
|
0.5280(lbs); 0.240
|
| 040. |
3272114660
|
[1] |
CIR CLIP,EXTERNAL
|
0.0110(lbs); 0.005
|
| 050. |
6C04014650
|
[1] |
GEAR,4WD
|
0.2046(lbs); 0.093
|
| 060. |
0461200250
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0044(lbs); 0.002
|
| 070. |
6C54014820
|
[1] |
GEAR
|
1.8920(lbs); 0.860
|
| 080. |
6659114720
|
[1] |
SPACER
|
0.0044(lbs); 0.002
|
| 090. |
6661114690
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 090. |
6661114670
|
[1] |
SHIM
|
0.0176(lbs); 0.008
|
| 090. |
6661114680
|
[1] |
SHIM
|
0.0220(lbs); 0.010
|
