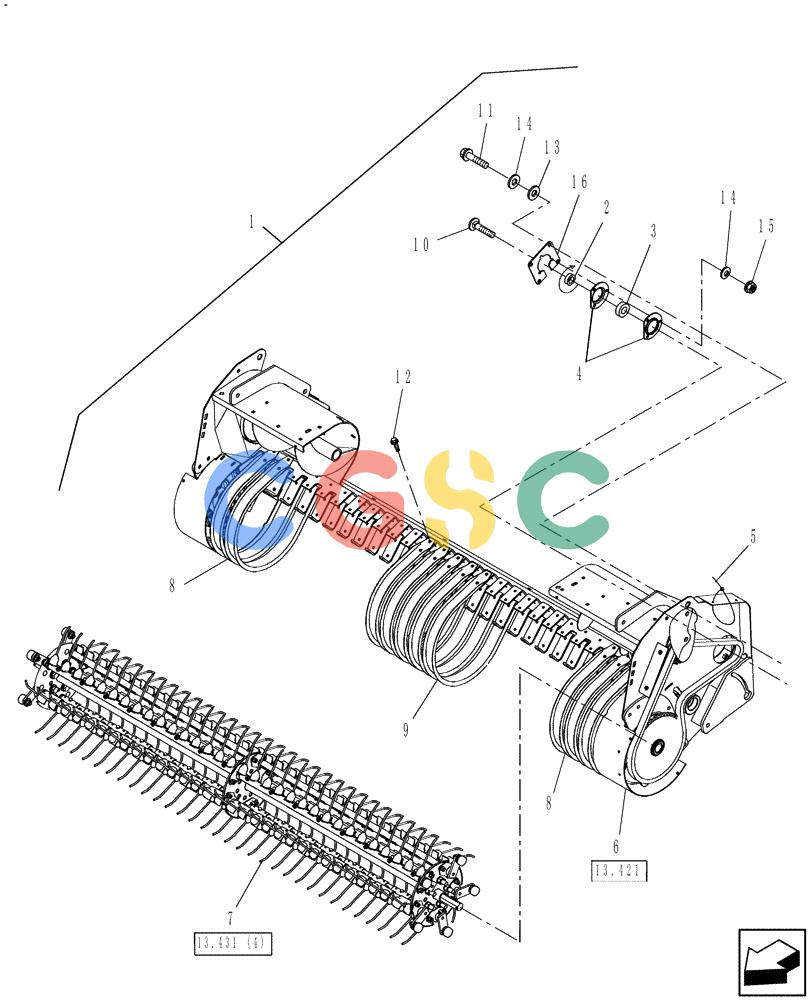

凯斯零件查询(RB564) - CASE IH ROUND BALER (7/07-1/14) (13.422) - 2M WIDE PICKUP, AUGER, SERVICE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
550 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84329256
|
[1] |
PICK-UP
|
NH
2M WIDE, STUFFER FEEDER, Sevice
|
| 2. |
63266
|
[1] |
COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W
|
GI
|
| 3. |
63265
|
[1] |
BALL BEARING,30.16mm ID x 62mm OD x 18mm W
|
GI
|
| 4. |
87758679
|
[2] |
FLANGED BEARING
|
PA
Superseded by part number: 87758678
|
| 5. |
646223
|
[1] |
STRAP,8.0" L
|
PA
Superseded by part number: 95874S
|
| 6. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
|
| 8. |
86643381
|
[10] |
GUARD
|
NH
|
| 9. |
87055363
|
[21] |
GUARD ASSY.
|
PA
|
| 10. |
86512446
|
[3] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 11. |
9804262
|
[4] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 12. |
87039762
|
[103] |
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"
|
PA
Superseded by part number: 570821
|
| 13. |
80702
|
[4] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 14. |
140045
|
[7] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 15. |
9804278
|
[3] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 16. |
84173517
|
[1] |
PLATE
|
NH
|
