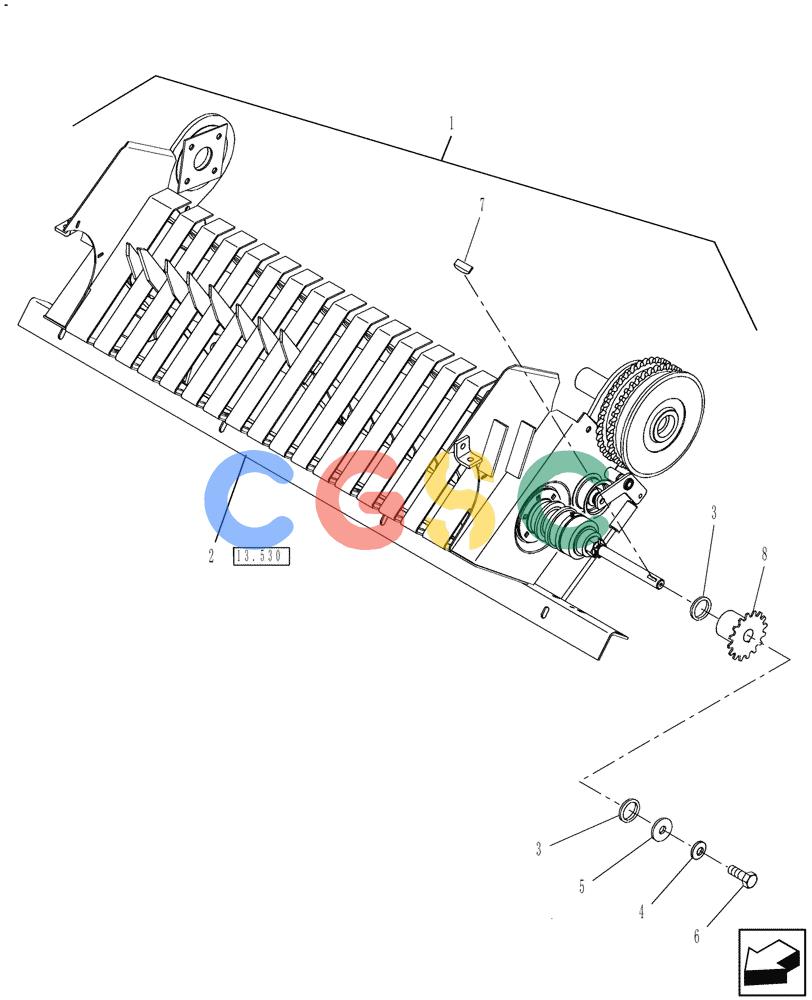

凯斯零件查询(RB564) - CASE IH ROUND BALER (7/07-1/14) (13.531) - STUFFER FEEDER, SERVICE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
242 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84329254
|
[1] |
PICK-UP
|
NH
Service Stuffer Feeder
|
| 2. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Stuffer Feeder
|
| 3. |
245531
|
[2] |
WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk
|
NH
|
| 4. |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 5. |
58225
|
[1] |
WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk
|
NH
Superseded by part number: 87654824
|
| 6. |
43128
|
[1] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 7. |
80768
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1"
|
GI
Superseded by part number: 47471
|
| 8. |
87725037
|
[1] |
SPROCKET
|
NH
17T, RC50
|
