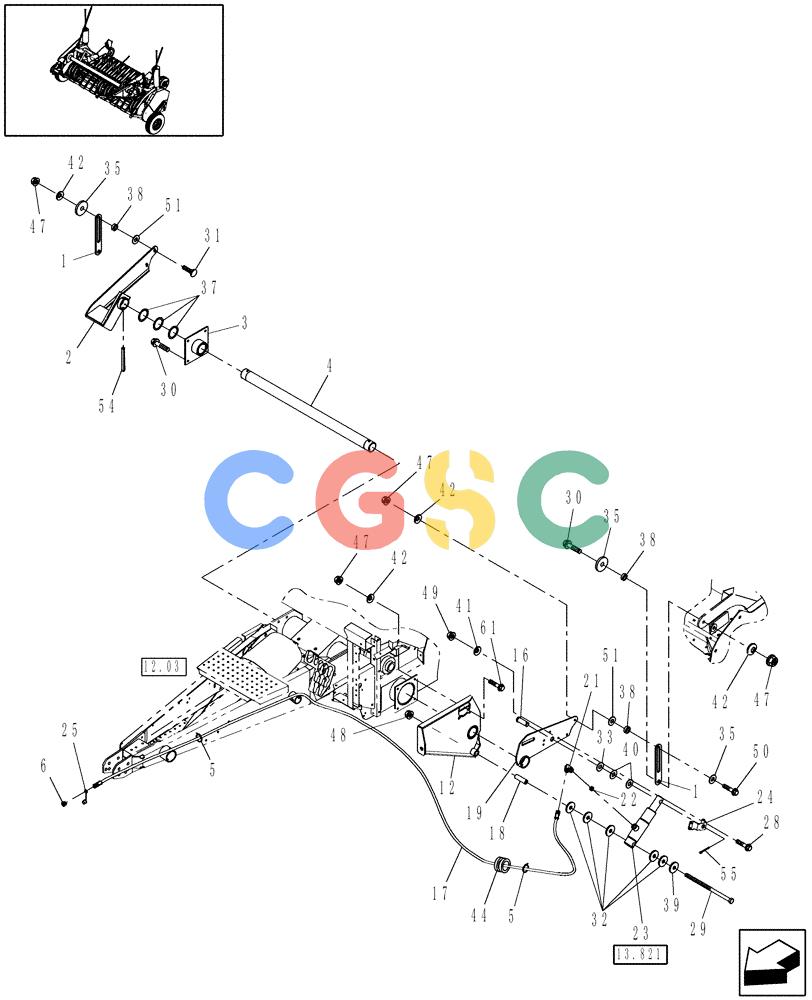

| 1. |
86620532
|
[2] |
STRAP
|
NH
Superseded by part number: 87654727
|
| 2. |
87728772
|
[1] |
LIFT ARM
|
NH
|
| 3. |
86620245
|
[1] |
MOUNTING PARTS
|
NH
Superseded by part number: 87654743, 86620198
|
| 4. |
86621139
|
[1] |
TUBE,60.50 mm OD x 1957.30 mm L
|
NH
|
| 5. |
263117
|
[5] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
CABLE STRAP
|
| 6. |
9801618
|
[1] |
QUICK MALE COUPLING,1/2" - 14
|
NH
Male, 1/2"-14 NPTF Superseded by part number: 9412
|
| 12. |
86620230
|
[1] |
MOUNTING PARTS
|
NH
Superseded by part number: 87655058, 86620198
|
| 16. |
514112
|
[1] |
PIN
|
NH
1" x 2-3/4"
|
| 17. |
86836356
|
[1] |
HOSE,9.53mm ID x 4673.6mm L, SAE 100R17
|
NH
|
| 18. |
87016310
|
[1] |
SPACER
|
PA
|
| 19. |
86620277
|
[1] |
ARM
|
NH
Superseded by part number: 87654780
|
| 21. |
218-5105
|
[1] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Includes: O-Ring, 3/8" Tube Superseded by part number: 76344, 72186128
|
| 22. |
261066
|
[1] |
ORIFICE,9/16" - 18, 0.813" Orifice
|
NH
.032"
|
| 23. |
87019166
|
[1] |
HYDRAULIC CYLINDER
|
RAC
Pickup Lift Superseded by part number: 47583052
|
| 24. |
86705824
|
[1] |
CHANNEL
|
NH
Pickup Lift
|
| 25. |
87017806
|
[1] |
DUST CAP,Green
|
PA
Superseded by part number: 84819677
|
| 28. |
844-8025
|
[3] |
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9671714
|
| 29. |
814-12120
|
[1] |
BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8
|
CAS
Superseded by part number: 309308
|
| 30. |
844-10030
|
[4] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 31. |
811-10040
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 374892
|
| 32. |
86611401
|
[1] |
WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk
|
NH
|
| 33. |
27318
|
[1] |
WASHER,26mm ID x 51mm OD x 1.5mm Thk
|
NH
.060" Thick
|
| 35. |
213404
|
[2] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
3/16" x 13/32" ID x 1-1/2" OD
|
| 37. |
122257
|
[3] |
WASHER,61.9mm ID x 77.79mm OD x 1.2mm Thk
|
NH
2-3/8"
|
| 38. |
87020910
|
[2] |
SPACER,10.4mm ID x 19mm OD x 8.9mm Thk
|
PA
|
| 39. |
86637848
|
[1] |
WASHER,13.5mm ID x 38.1mm OD x 3.68mm Thk
|
NH
1-1/2" OD, Plated
|
| 40. |
495-11106
|
[1] |
WASHER,1", SAE
|
CAS
Superseded by part number: 87367
|
| 41. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 42. |
140045
|
[8] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 44. |
173011
|
[1] |
GROMMET,1” ID x 1.750” OD x .500” Tk
|
NH
1-3/4" OD x 1" ID
|
| 47. |
825-2410
|
[10] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
| 48. |
832-46412
|
[1] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 49. |
825-2408
|
[3] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 50. |
844-10040
|
[1] |
BOLT,Hvy Hex, M10 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 9804263, 87778247
|
| 51. |
235126
|
[2] |
WASHER,10.3mm ID x 38mm OD x 1.7mm Thk
|
NH
Special
|
| 54. |
86544809
|
[2] |
LOCK PIN,9.53mm OD x 76.2mm L, Slotted
|
NH
|
| 55. |
432-1224
|
[1] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
Superseded by part number: 80754
|
| 56. |
32-1220
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Superseded by part number: 87398
|
| 61. |
844-10025
|
[4] |
BOLT,Hex, M10 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9804261
|
