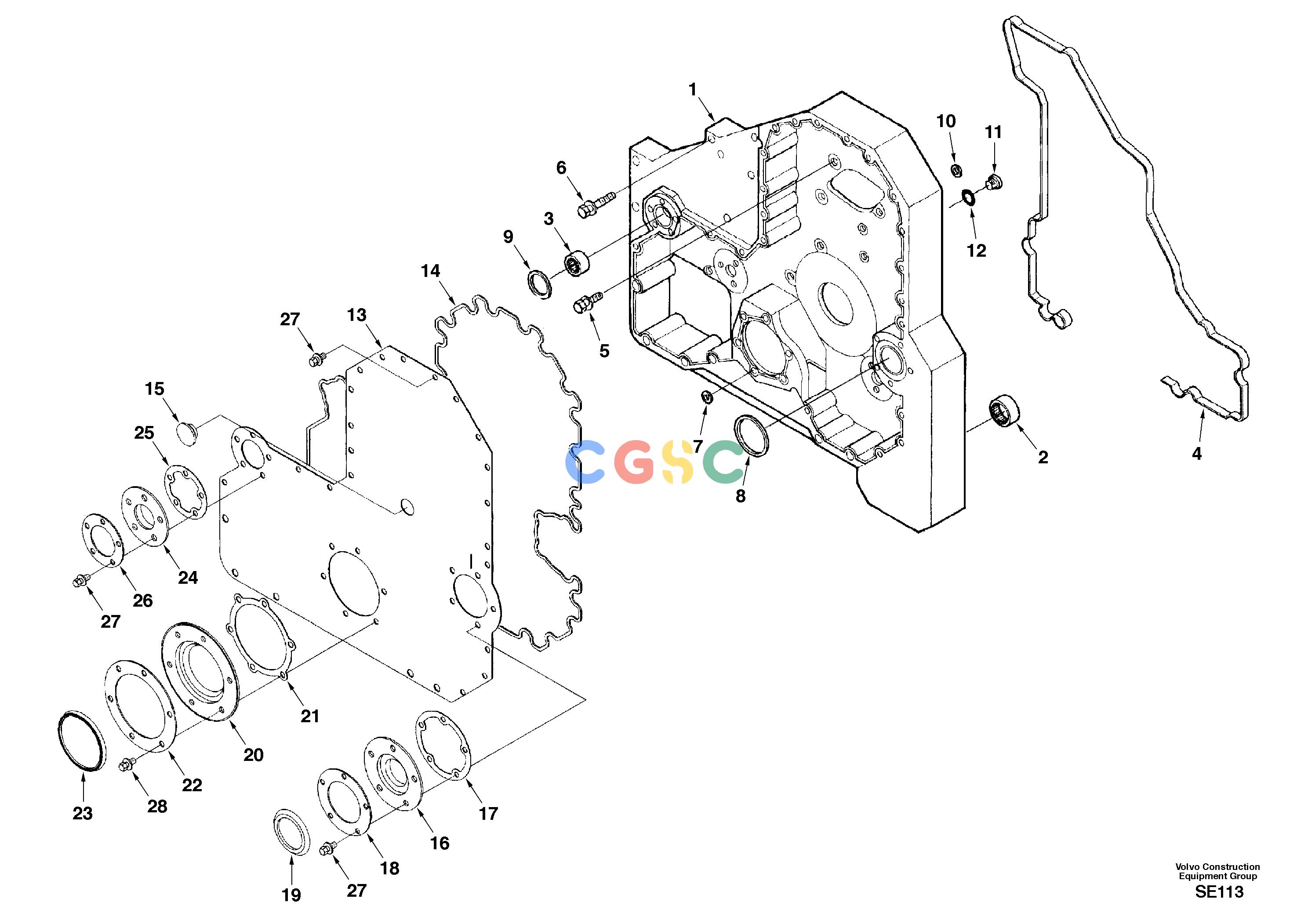

沃尔沃零件查询EC360 Timing gear casingNoneDH04B002-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
958 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3417628
|
[1] |
Housing
|
|
| 2. |
SA3025354
|
[1] |
Needle Bearing
|
|
| 3. |
SA3893913
|
[1] |
Needle bearing
|
|
| 4. |
SA3893964
|
[1] |
Seal
|
|
| 5. |
SA3818060
|
[12] |
Screw
|
|
| 6. |
SA3820186
|
[5] |
Screw
|
|
| 7. |
SA3201659
|
[6] |
Seal
|
|
| 8. |
SA3820945
|
[1] |
Seal
|
|
| 9. |
SA3820946
|
[1] |
Seal
|
|
| 10. |
SA3883150
|
[1] |
Seal
|
|
| 11. |
SA3046202
|
[1] |
Plug
|
|
| |
SA3040810
|
[1] |
Plug
|
|
| 12. |
SA3046201
|
[1] |
O-ring
|
|
| 13. |
SA3803571
|
[1] |
Cover
|
|
| |
SA3892697
|
[1] |
Cover
|
|
| 14. |
SA3893964
|
[1] |
Seal
|
|
| 15. |
SA3892666
|
[1] |
Plug
|
|
| 16. |
SA3803728
|
[1] |
Sealing Kit
|
|
| |
SA3892794
|
[1] |
Seal
|
|
| 17. |
SA3892083
|
[1] |
Gasket
|
|
| 18. |
SA3328760
|
[1] |
Gasket
|
|
| 19. |
SA3896837
|
[1] |
Seal
|
|
| 20. |
SA4955665
|
[1] |
Sealing Kit
|
|
| |
SA3892795
|
|
Seal
|
|
| 21. |
SA3328761
|
[1] |
Gasket
|
|
| 22. |
SA3892086
|
[1] |
Ring
|
|
| 23. |
SA3803487
|
[1] |
Sealing Kit
|
|
| |
SA3895020
|
[1] |
Seal
|
|
| 24. |
SA3892796
|
[1] |
Seal
|
|
| 25. |
SA3892082
|
[1] |
Gasket
|
|
| 26. |
SA3892084
|
[1] |
Ring
|
|
| 27. |
SA3900629
|
[32] |
Screw
|
|
| 28. |
SA3161006
|
[26] |
Screw
|
|
