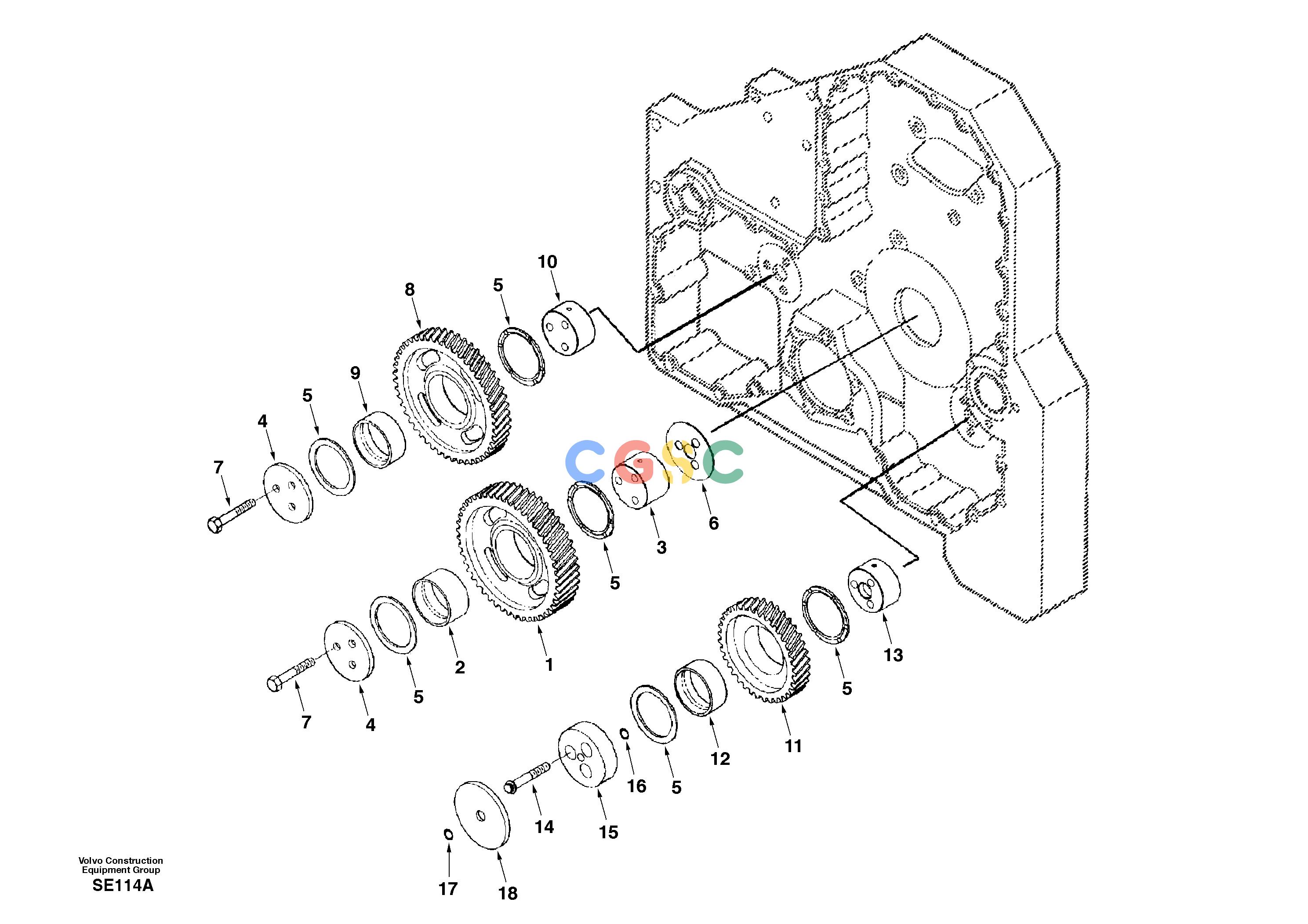

沃尔沃零件查询EC360 Timing gearNoneDH04B001-DH04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3084532
|
[1] |
Gear
|
|
| |
SA3084447
|
[1] |
Gear
|
|
| |
SA3038986
|
|
Gear
|
|
| |
SA3038985
|
|
Gear
|
|
| 2. |
SA3026188
|
[1] |
Bushing
|
|
| 3. |
SA3026166
|
[1] |
Shaft
|
|
| 4. |
SA3026233
|
[2] |
Retainer
|
|
| 5. |
SA3084899
|
[6] |
Bearing arrangement
|
|
| 6. |
SA3088161
|
[1] |
Plate
|
|
| |
SA3041038
|
|
Plate
|
|
| 7. |
SA3088162
|
[6] |
Screw
|
|
| |
SA3039398
|
|
Screw
|
|
| 8. |
SA3084533
|
[1] |
Gear
|
|
| |
SA3084448
|
[1] |
Gear
|
|
| |
SA3038988
|
|
Gear
|
|
| |
SA3038987
|
|
Gear
|
|
| 9. |
SA3026189
|
[1] |
Bushing
|
|
| 10. |
SA3026167
|
[1] |
Shaft
|
|
| 11. |
SA3045873
|
[1] |
Gear
|
|
| |
SA3045855
|
[1] |
Gear
|
|
| 12. |
SA3026188
|
[1] |
Bushing
|
|
| 13. |
SA3062904
|
[1] |
Shaft
|
|
| 14. |
SA3045853
|
[3] |
Screw
|
|
| 15. |
SA3882511
|
[1] |
Retainer
|
|
| 16. |
SA3820030
|
[1] |
Seal
|
|
| 17. |
SA3883510
|
[1] |
Seal
|
|
| 18. |
SA3882513
|
[1] |
Spacer
|
|
