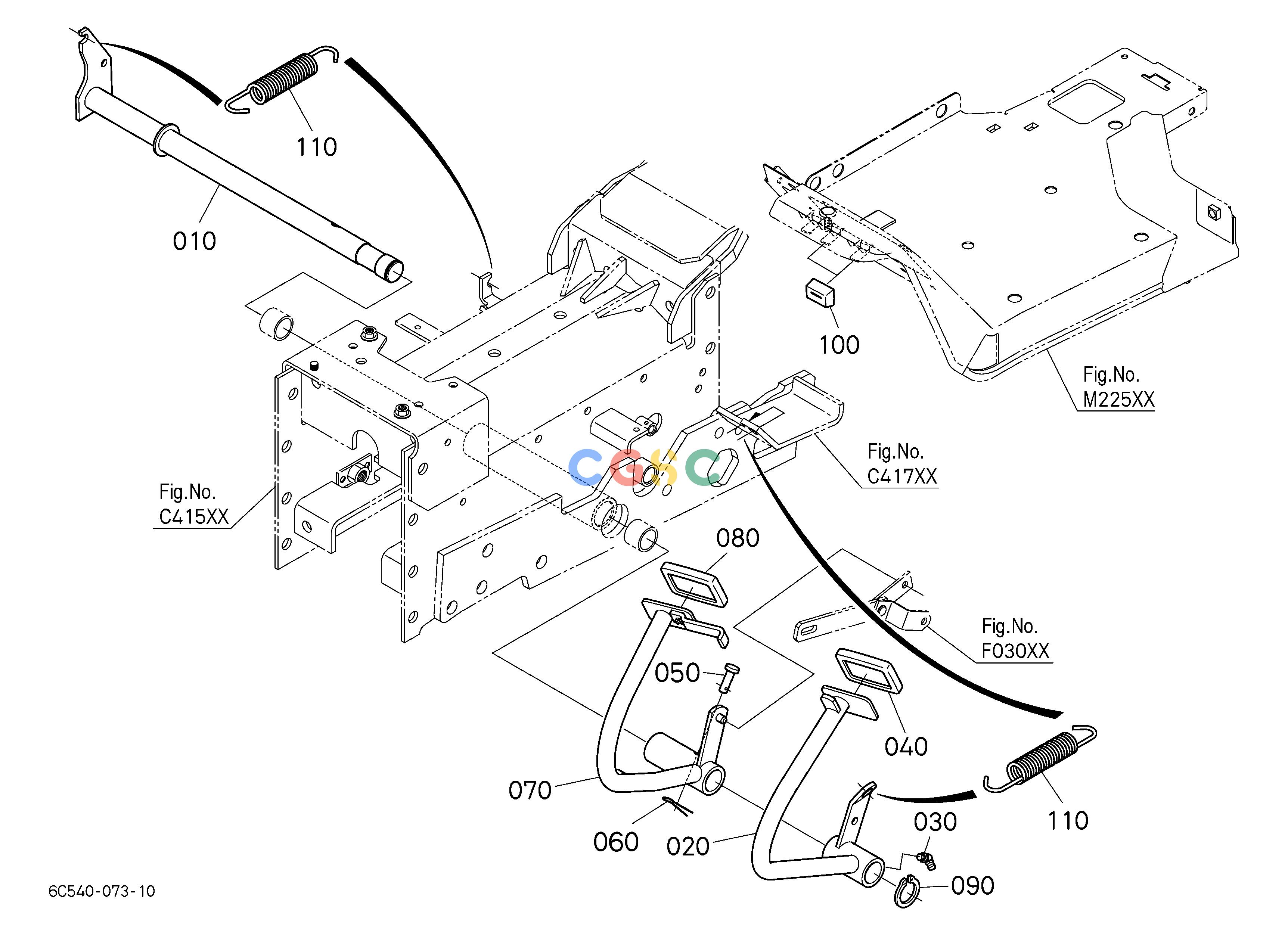

久保田零件查询F20100 BRAKE PEDAL OPERATIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
938 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54042310
|
[1] |
SHAFT(PEDAL)
|
4.0920(lbs); 1.860
|
| 020. |
6C54042330
|
[1] |
PEDAL(BRAKE LH)
|
3.3440(lbs); 1.520
|
| 030. |
6C36042170
|
[1] |
NIPPLE,GREASE
|
0.0110(lbs); 0.005
|
| 040. |
6602142830
|
[1] |
COVER,PEDAL
|
0.0550(lbs); 0.025
|
| 050. |
0512250840
|
[1] |
PIN,JOINT
|
0.0374(lbs); 0.017
|
| 060. |
0551150218
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 070. |
6C54042320
|
[1] |
PEDAL(BRAKE RH)
|
3.6300(lbs); 1.650
|
| 080. |
6602142830
|
[1] |
COVER,PEDAL
|
0.0550(lbs); 0.025
|
| 090. |
0461200240
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0044(lbs); 0.002
|
| 100. |
6A32042160
|
[2] |
CUSHION
|
0.0264(lbs); 0.012
|
| 110. |
6662143270
|
[2] |
SPRING(BRAKE RETURN)
|
0.0880(lbs); 0.040
|
