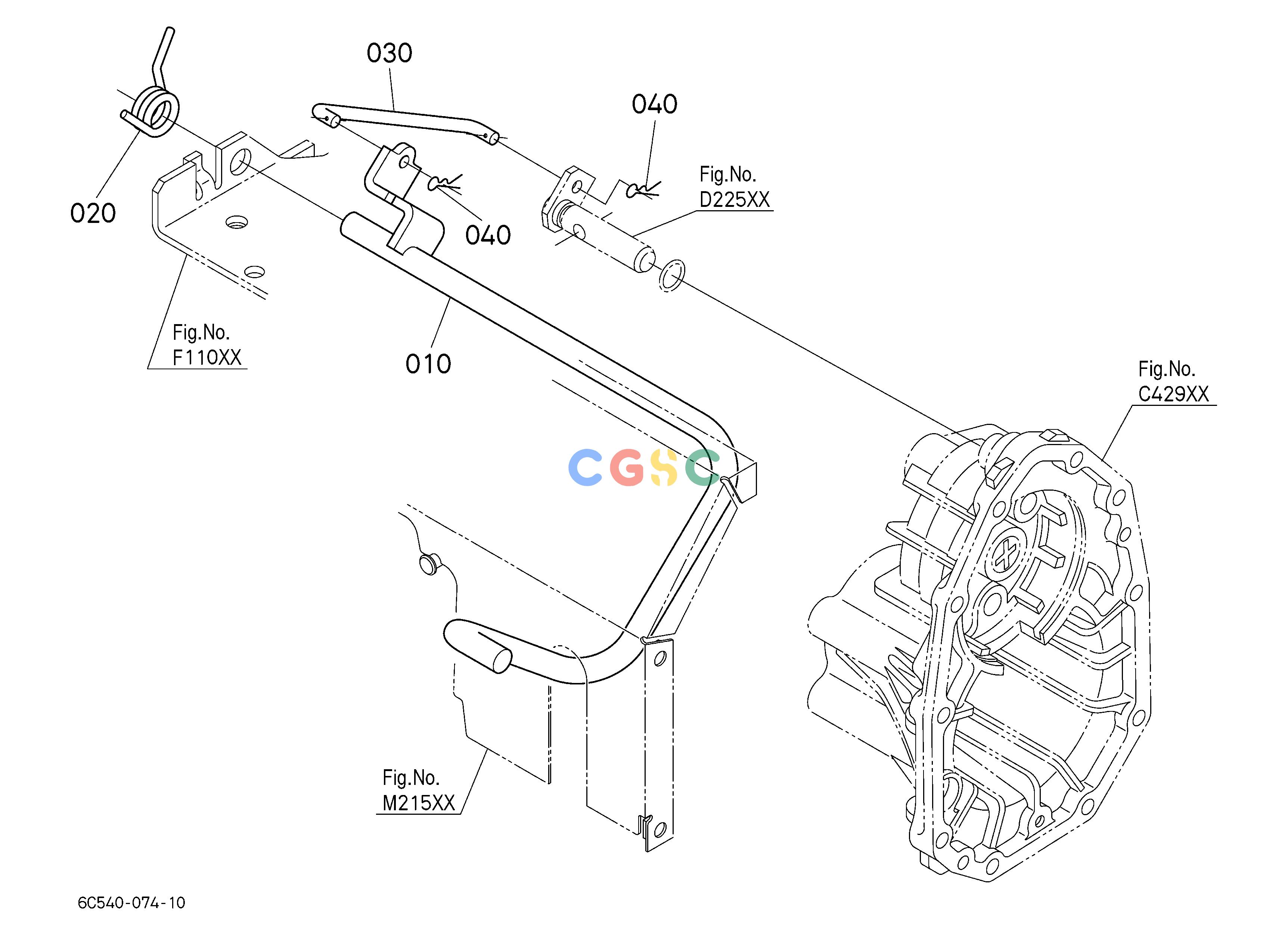

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6C20042413 | [1] | PEDAL,DIFF.LOCK | 2.7940(lbs); 1.270 |
| 020. | 6C05042890 | [1] | SPRING | 0.0880(lbs); 0.040 |
| 030. | 6C54042440 | [1] | ROD(DIFF.LOCK) | 0.1650(lbs); 0.075 |
| 040. | 0552550800 | [2] | SNAP PIN | 0.0022(lbs); 0.001 |
广数供应链运营团队, 14 02月, 2025，浏览： 354 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6C20042413 | [1] | PEDAL,DIFF.LOCK | 2.7940(lbs); 1.270 |
| 020. | 6C05042890 | [1] | SPRING | 0.0880(lbs); 0.040 |
| 030. | 6C54042440 | [1] | ROD(DIFF.LOCK) | 0.1650(lbs); 0.075 |
| 040. | 0552550800 | [2] | SNAP PIN | 0.0022(lbs); 0.001 |
