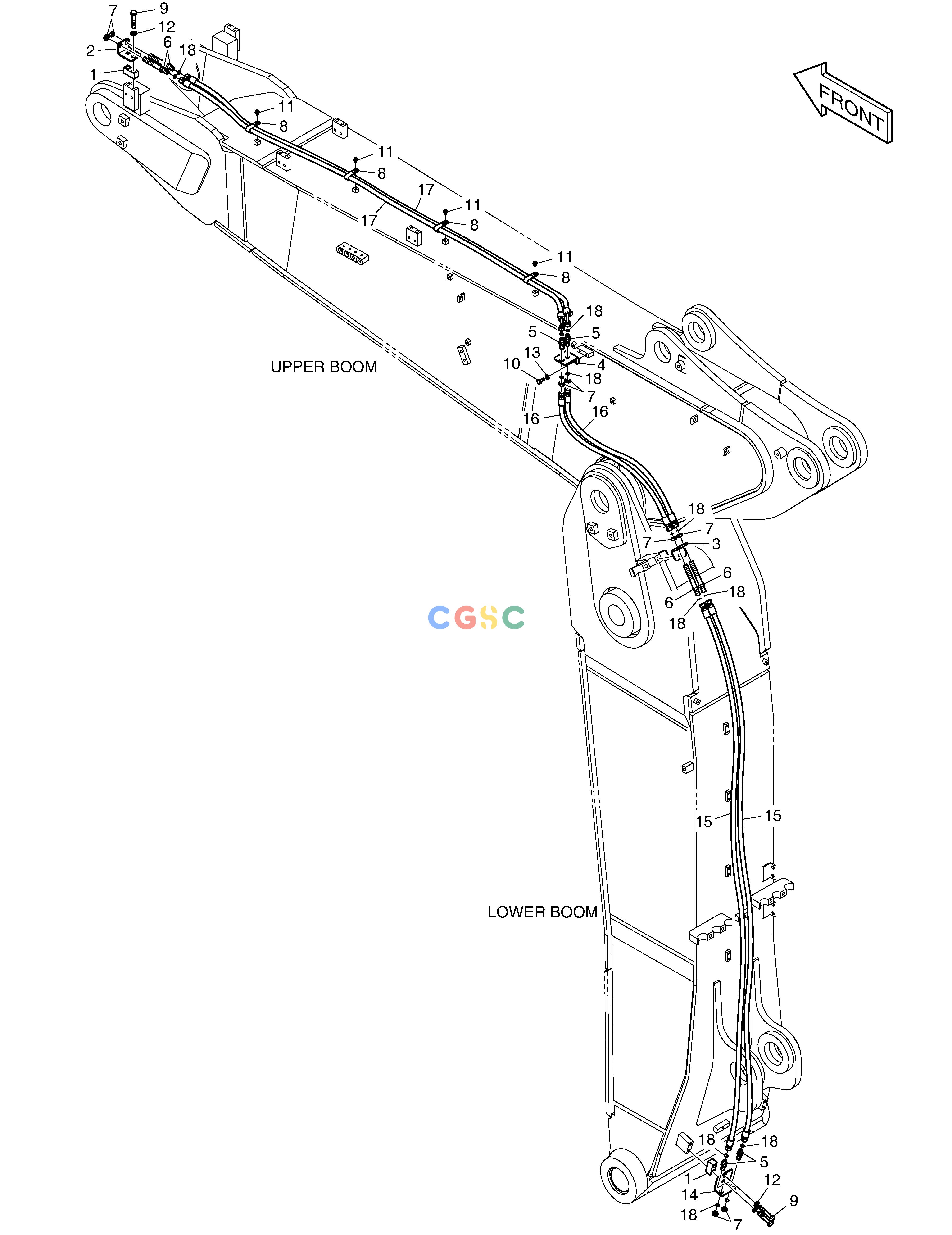

斗山零件查询ARTI. BOOM PIPING - QUICK FIT DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
916 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-03638
|
[-] |
|
|
| 1. |
K1004006
|
[2] |
PLATE
|
|
| 10. |
S0512066
|
[2] |
. BOLT
|
|
| 11. |
K1001029
|
[4] |
BOLT
|
|
| 12. |
K1015638
|
[4] |
WASHER;HARDENED
|
|
| 13. |
S5102603
|
[2] |
. WASHER
|
|
| 14. |
110406-00478
|
[1] |
|
|
| 15. |
DS20111016
|
[2] |
|
|
| 16. |
DS20111015
|
[2] |
|
|
| 17. |
DS20131677
|
[2] |
|
|
| 18. |
S8030061
|
[14] |
O-RING
|
|
| 2. |
110406-00479
|
[1] |
|
|
| 3. |
110406-00877
|
[1] |
|
|
| 4. |
110406-00878
|
[1] |
|
|
| 5. |
181-00128D2
|
[4] |
ADAPTER;CONNECTOR
|
|
| 6. |
DS2415017
|
[4] |
|
|
| 7. |
DS0301032
|
[8] |
NUT
|
|
| 8. |
124-00199D1
|
[4] |
CLIP
|
|
| 9. |
S0563466
|
[4] |
BOLT
|
|
