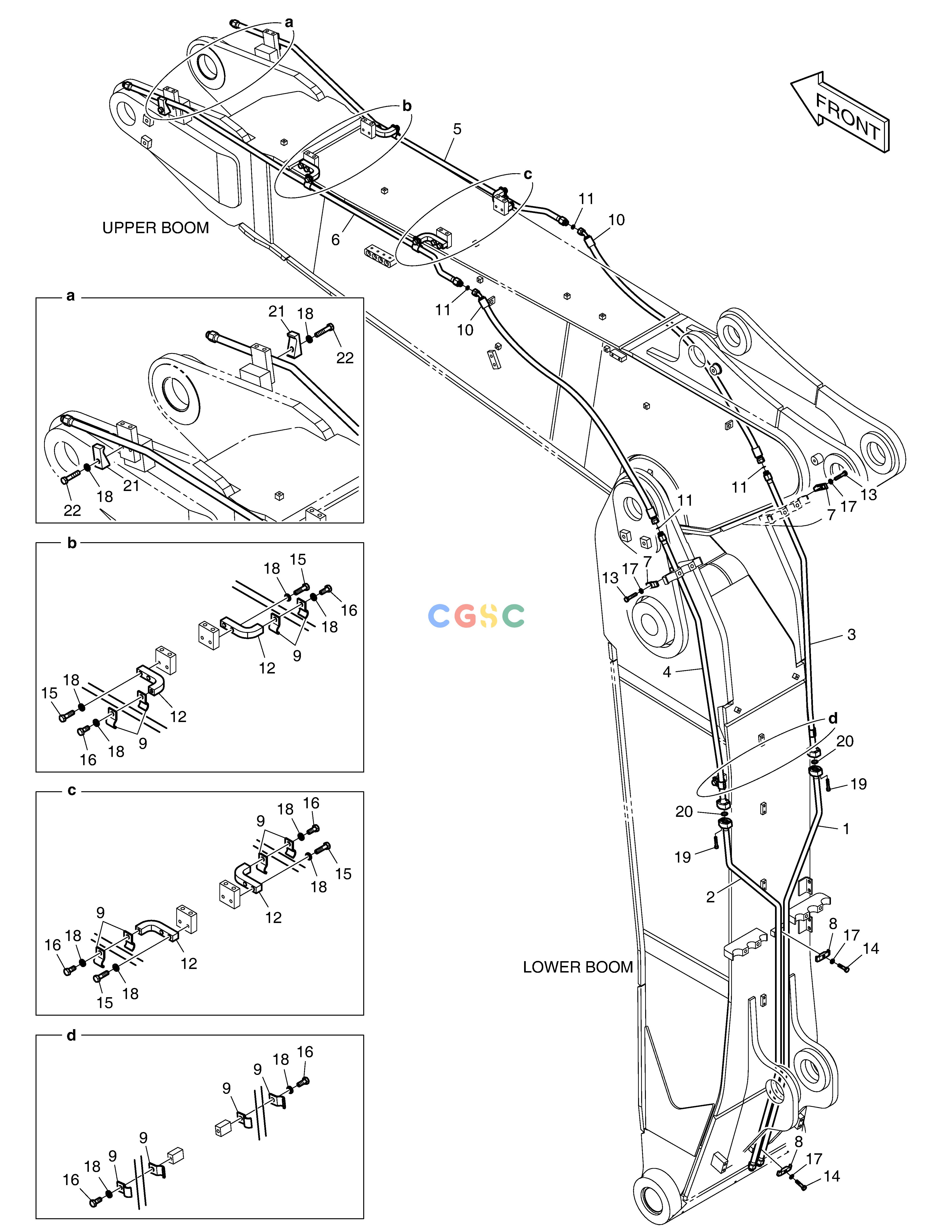

斗山零件查询ARTI. BOOM PIPING - ROTATING DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
578 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-03641
|
[-] |
|
|
| 1. |
420207-00852
|
[1] |
|
|
| 10. |
DS2012630
|
[2] |
|
|
| 11. |
S8030081
|
[4] |
O-RING
|
|
| 12. |
621-02718
|
[4] |
PLATE
|
|
| 13. |
S0558666
|
[2] |
BOLT
|
|
| 14. |
S0558466
|
[2] |
BOLT
|
|
| 15. |
S0560866
|
[8] |
BOLT
|
|
| 16. |
S0515266
|
[6] |
BOLT
|
|
| 17. |
S5102603
|
[4] |
. WASHER
|
|
| 18. |
S5102703
|
[16] |
WASHER
|
|
| 19. |
S2209566
|
[8] |
. BOLT;SOCKET M8X1.25X45
|
|
| 2. |
420207-00853
|
[1] |
|
|
| 20. |
2180-1026D30
|
[2] |
O-RING
|
|
| 21. |
K1006931
|
[2] |
CLAMP;PIPE
|
|
| 22. |
S0560966
|
[2] |
BOLT
|
|
| 3. |
420207-00854
|
[1] |
|
|
| 4. |
420207-00855
|
[1] |
|
|
| 5. |
420207-00856A
|
[1] |
|
|
| 6. |
420207-00857A
|
[1] |
|
|
| 7. |
2124-1026D1
|
[2] |
CLAMP;PIPE
|
|
| 8. |
K1004028
|
[2] |
CLAMP;PIPE
|
|
| 9. |
124-00299A
|
[12] |
CLAMP
|
|
