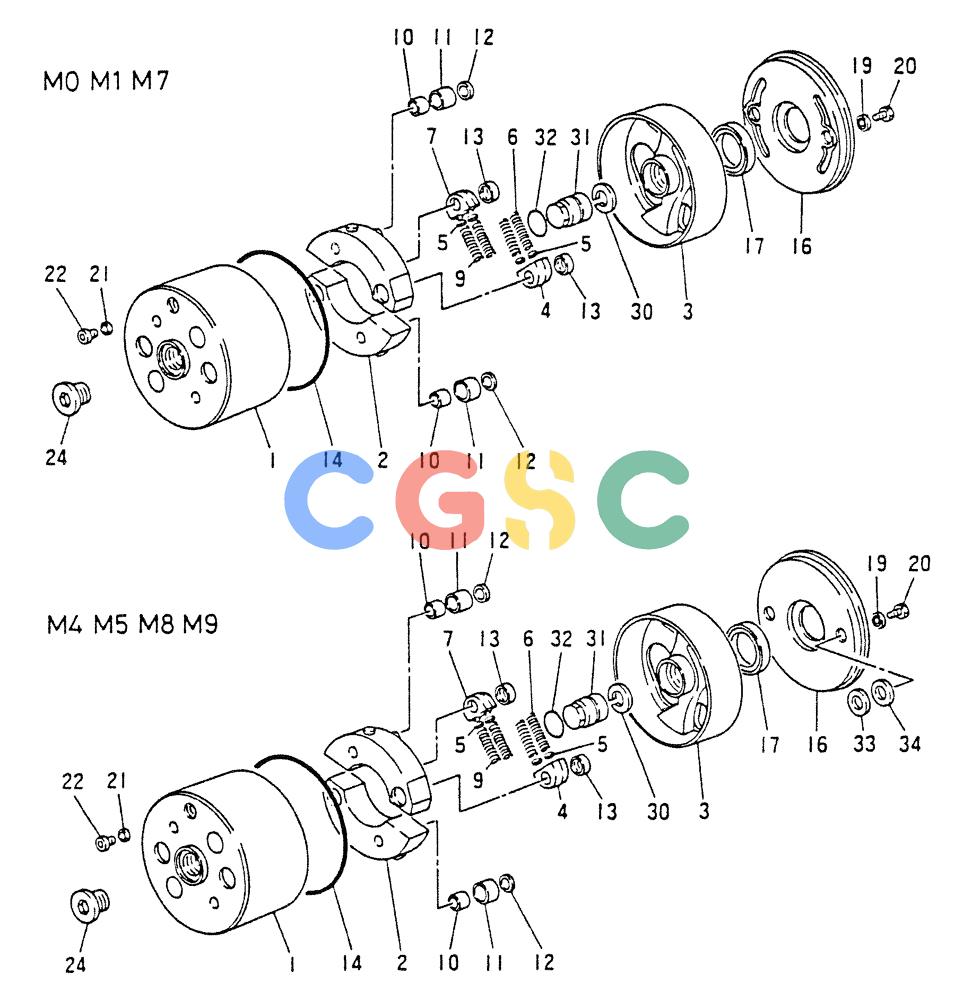

| 1-32. | VAME066112 | [1] | AUTOMATIC TIMER ASSY SP TYPE (M0) | |
| 1-32. | VAME069722 | [1] | AUTOMATIC TIMER ASSY SP TYPE (M1) (FF:P - PARTS EXCLUSIVELY FOR INDUSTRIAL MACHINERY ENGINE) | |
| 1-34. | VAME060609 | [1] | TIMER | KOBAUTOMATIC TIMER ASSY SP TYPE (M4) |
| 1-34. | VAME060607 | [1] | TIMER | KOBAUTOMATIC TIMER ASSY SP TYPE (M5) |
| 1-32. | VAME717100 | [1] | AUTOMATIC TIMER ASSY SP TYPE (M7) | |
| 1-34. | VAME717203 | [1] | AUTOMATIC TIMER ASSY SP TYPE (M8) | |
| 1-34. | VAME717155 | [1] | AUTOMATIC TIMER ASSY SP TYPE (M9) | |
| 1. | VAME705137 | [1] | HOUSING,TIMER(FOR M0,M1,M7,M8 & M9 ONLY) | |
| 1. | VAME716613 | [1] | HOUSING,TIMER(FOR M4 & M5 ONLY) | |
| 2. | VAME705101 | [2] | FLYWEIGHT(FOR M0 & M9 ONLY) | |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONFLYWEIGHT(FOR M1 ONLY) |
| 2. | VAME716614 | [2] | FLYWEIGHT(FOR M4 & M5 ONLY) | |
| 2. | VAME717622 | [2] | FLYWEIGHT(FOR M7 ONLY) | |
| 2. | VAME705069 | [2] | FLYWEIGHT(FOR M8 ONLY) | |
| 2. | VAME717645 | [2] | FLYWEIGHT(FOR M9 ONLY) | |
| 3. | VAME705037 | [1] | FLANGE(FOR M0 & M1 ONLY) | |
| 3. | VAME716615 | [1] | FLANGE(FOR M4 & M5 ONLY) | |
| 3. | VAME717623 | [1] | FLANGE(FOR M7,M8 & M9 ONLY) | |
| 4. | VAME705071 | [2] | SEAT,SPG | |
| 5. | VAME705297 | [1] | SHIM T = 0.2 | |
| 5. | VAME705298 | [1] | SHIM T = 0.4 | |
| 5. | VAME705299 | [1] | SHIM T = 0.5 | |
| 5. | VAME705300 | [1] | SHIM T = 0.6 | |
| 5. | VAME705301 | [1] | SHIM T = 0.7 | |
| 5. | VAME705302 | [1] | SHIM T = 1.0 | |
| 5. | VAME717802 | [1] | SHIM T = 0.3 | |
| 5. | VAME717803 | [1] | SHIM T = 0.8 | |
| 5. | VAME717804 | [1] | SHIM T = 0.9 | |
| 5. | VAME717805 | [1] | SHIM T = 1.0 | |
| 5. | VAME716752 | [1] | SHIM T = 1.5 | |
| 5. | VAME716753 | [1] | SHIM T = 2.0 | |
| 6. | VAME705103 | [2] | SPRING,TIMER(FOR M0 ONLY) | |
| 6. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING,TIMER(FOR M1 ONLY) |
| 6. | VAME716616 | [2] | SPRING,TIMER(FOR M4 & M5 ONLY) | |
| 6. | VAME717624 | [2] | SPRING,TIMER(FOR M7 ONLY) | |
| 6. | VAME716559 | [2] | SPRING,TIMER(FOR M8 & M9 ONLY) | |
| 7. | VAME705071 | [2] | SEAT,SPG | |
| 9. | VAME705103 | [2] | SPRING,TIMER(FOR M0 ONLY) | |
| 9. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING,TIMER(FOR M1 ONLY) |
| 9. | VAME716616 | [2] | SPRING,TIMER(FOR M4 & M5 ONLY) | |
| 9. | VAME717624 | [2] | SPRING,TIMER(FOR M7 ONLY) | |
| 9. | VAME716559 | [2] | SPRING,TIMER(FOR M8 & M9 ONLY) | |
| 10. | VAME705074 | [2] | BUSHING | KOBBUSHING |
| 11. | VAME705040 | [1] | ROLLER D=23.9 | |
| 11. | VAME705041 | [1] | ROLLER D=24.0 | |
| 11. | VAME705042 | [1] | ROLLER | KOBROLLER D=24.1 |
| 11. | VAME705043 | [1] | ROLLER D=24.2 | |
| 11. | VAME705067 | [1] | ROLLER D=24.3 | |
| 12. | VAME705303 | [2] | WASHER | |
| 13. | VAME717625 | [2] | RETAINER | |
| 14. | VAME705045 | [1] | O-RING | KOBO-RING |
| 16. | VAME717626 | [1] | COVER(FOR M0,M1 & M7 ONLY) | |
| 16. | VAME717644 | [1] | COVER(FOR M4,M5,M8 & M9 ONLY) | |
| 17. | VAME717627 | [1] | SEAL | KOBOILSEAL |
| 19. | VAME705139 | [2] | GASKET(FOR M0 & M1 ONLY) | |
| 19. | VAME717628 | [2] | GASKET | KOBGASKET(FOR M4,M5,M7,M8 & M9 ONLY) |
| 20. | VAME717629 | [2] | BOLT | |
| 21. | VAME705271 | [1] | GASKET GASKET | GASKET GASKET |
| 22. | VAME705014 | [1] | PLUG PLUG | PLUG PLUG |
| 24. | VAME705140 | [1] | CAP | |
| 30. | VAME705305 | [1] | WASHER, SPG.(FOR M0,M1,M7,M8 & M9 ONLY) | |
| 30. | VAME705273 | [1] | WASHER, SPG.(FOR M4 & M5 ONLY) | |
| 31. | VAME704260 | [1] | NUT(FOR M0,M1,M7,M8 & M9 ONLY) | |
| 31. | VAME716617 | [1] | NUT(FOR M4 & M5 ONLY) | |
| 32. | VAME705355 | [1] | O-RING | KOBO-RING(FOR M0,M1,M7,M8 & M9 ONLY) Superseded by part number: VA0296328010 |
| 32. | VAME705274 | [1] | O-RING(FOR M4 & M5 ONLY) | |
| 33. | VAME705237 | [2] | SHIM | KOBSHIM(FOR M4,M5,M8 & M9 ONLY) |
| 34. | VAME705238 | [2] | SHIM | KOBSHIM(FOR M4,M5,M8 & M9 ONLY) |
