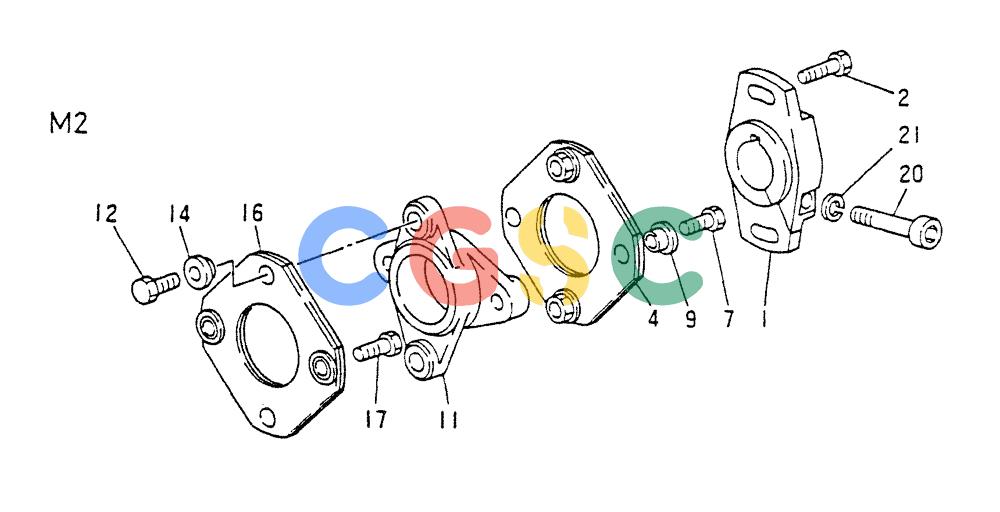

神钢零件查询(8DC8) - MITSUBISHI DIESEL ENGINE - K914 & K975 (1/79-12/06) (03-009) - COUPLING (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
274 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-21. | VAME066098 | [1] | LOCK CYLINDER ASSY | LOCK CYLINDER ASSY |
| 1. | VAME705057 | [1] | COUPLING | |
| 2. | VAME705058 | [2] | BOLT | |
| 4. | VAME705059 | [1] | PLATE | |
| 7. | VAME705060 | [2] | SCREW | KOB |
| 9. | VAME705061 | [2] | SCREW | KOBBUSH |
| 11. | VAME705062 | [1] | COUPLING,CROSS | |
| 12. | VAME705060 | [2] | SCREW | KOBBOLT |
| 14. | VAME705061 | [2] | SCREW | KOBBUSH |
| 16. | VAME705063 | [1] | PLATE | |
| 17. | VAME705060 | [2] | SCREW | KOBBOLT |
| 20. | VAME705064 | [1] | BOLT | KOBBOLT Superseded by part number: VA1566037200 |
| 21. | VAME705065 | [1] | WASHER | KOBWASHER,SPG Superseded by part number: VA1566152600 |
